结构型模式-代理模式

亦称： Proxy

意图

代理模式是一种结构型设计模式， 让你能够提供对象的替代品或其占位符。 代理控制着对于原对象的访问， 并允许在将请求提交给对象前后进行一些处理。

问题

为什么要控制对于某个对象的访问呢？ 举个例子： 有这样一个消耗大量系统资源的巨型对象， 你只是偶尔需要使用它， 并非总是需要。

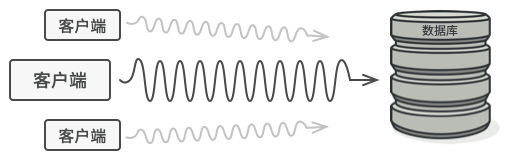

数据库查询有可能会非常缓慢。

你可以实现延迟初始化： 在实际有需要时再创建该对象。 对象的所有客户端都要执行延迟初始代码。 不幸的是， 这很可能会带来很多重复代码。

在理想情况下， 我们希望将代码直接放入对象的类中， 但这并非总是能实现： 比如类可能是第三方封闭库的一部分。

解决方案

代理模式建议新建一个与原服务对象接口相同的代理类， 然后更新应用以将代理对象传递给所有原始对象客户端。 代理类接收到客户端请求后会创建实际的服务对象， 并将所有工作委派给它。

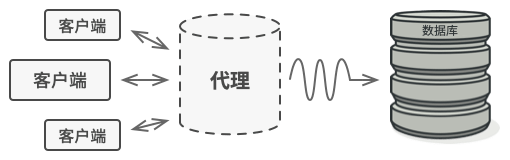

代理将自己伪装成数据库对象， 可在客户端或实际数据库对象不知情的情况下处理延迟初始化和缓存查询结果的工作。

这有什么好处呢？ 如果需要在类的主要业务逻辑前后执行一些工作， 你无需修改类就能完成这项工作。 由于代理实现的接口与原类相同， 因此你可将其传递给任何一个使用实际服务对象的客户端。

真实世界类比

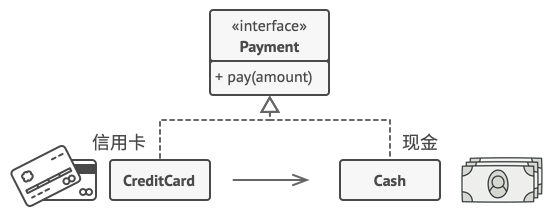

信用卡和现金在支付过程中的用处相同。

信用卡是银行账户的代理， 银行账户则是一大捆现金的代理。 它们都实现了同样的接口， 均可用于进行支付。 消费者会非常满意， 因为不必随身携带大量现金； 商店老板同样会十分高兴， 因为交易收入能以电子化的方式进入商店的银行账户中， 无需担心存款时出现现金丢失或被抢劫的情况。

代理模式结构

  1. 服务接口 （Service Interface） 声明了服务接口。 代理必须遵循该接口才能伪装成服务对象。
  2. 服务 （Service） 类提供了一些实用的业务逻辑。
  3. 代理 （Proxy） 类包含一个指向服务对象的引用成员变量。 代理完成其任务 （例如延迟初始化、 记录日志、 访问控制和缓存等） 后会将请求传递给服务对象。 通常情况下， 代理会对其服务对象的整个生命周期进行管理。
  4. 客户端 （Client） 能通过同一接口与服务或代理进行交互， 所以你可在一切需要服务对象的代码中使用代理。

伪代码

本例演示如何使用代理模式在第三方腾讯视频 （TencentVideo， 代码示例中记为 TV） 程序库中添加延迟初始化和缓存。

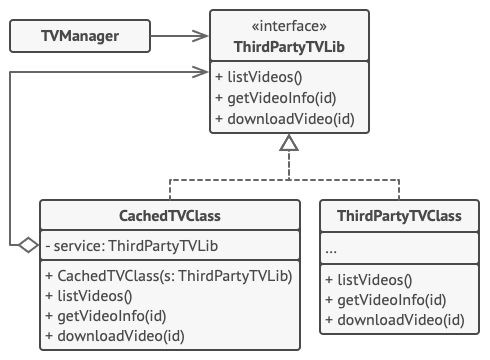

使用代理缓冲服务结果。

程序库提供了视频下载类。 但是该类的效率非常低。 如果客户端程序多次请求同一视频， 程序库会反复下载该视频， 而不会将首次下载的文件缓存下来复用。

代理类实现和原下载器相同的接口， 并将所有工作委派给原下载器。 不过， 代理类会保存所有的文件下载记录， 如果程序多次请求同一文件， 它会返回缓存的文件。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
// 远程服务接口。
interface ThirdPartyTVLib is
    method listVideos()
    method getVideoInfo(id)
    method downloadVideo(id)

// 服务连接器的具体实现。该类的方法可以向腾讯视频请求信息。请求速度取决于
// 用户和腾讯视频的互联网连接情况。如果同时发送大量请求，即使所请求的信息
// 一模一样，程序的速度依然会减慢。
class ThirdPartyTVClass implements ThirdPartyTVLib is
    method listVideos() is
        // 向腾讯视频发送一个 API 请求。

    method getVideoInfo(id) is
        // 获取某个视频的元数据。

    method downloadVideo(id) is
        // 从腾讯视频下载一个视频文件。

// 为了节省网络带宽，我们可以将请求结果缓存下来并保存一段时间。但你可能无
// 法直接将这些代码放入服务类中。比如该类可能是第三方程序库的一部分或其签
// 名是`final（最终）`。因此我们会在一个实现了服务类接口的新代理类中放入
// 缓存代码。当代理类接收到真实请求后，才会将其委派给服务对象。
class CachedTVClass implements ThirdPartyTVLib is
    private field service: ThirdPartyTVLib
    private field listCache, videoCache
    field needReset

    constructor CachedTVClass(service: ThirdPartyTVLib) is
        this.service = service

    method listVideos() is
        if (listCache == null || needReset)
            listCache = service.listVideos()
        return listCache

    method getVideoInfo(id) is
        if (videoCache == null || needReset)
            videoCache = service.getVideoInfo(id)
        return videoCache

    method downloadVideo(id) is
        if (!downloadExists(id) || needReset)
            service.downloadVideo(id)

// 之前直接与服务对象交互的 GUI 类不需要改变，前提是它仅通过接口与服务对
// 象交互。我们可以安全地传递一个代理对象来代替真实服务对象，因为它们都实
// 现了相同的接口。
class TVManager is
    protected field service: ThirdPartyTVLib

    constructor TVManager(service: ThirdPartyTVLib) is
        this.service = service

    method renderVideoPage(id) is
        info = service.getVideoInfo(id)
        // 渲染视频页面。

    method renderListPanel() is
        list = service.listVideos()
        // 渲染视频缩略图列表。

    method reactOnUserInput() is
        renderVideoPage()
        renderListPanel()

// 程序可在运行时对代理进行配置。
class Application is
    method init() is
        aTVService = new ThirdPartyTVClass()
        aTVProxy = new CachedTVClass(aTVService)
        manager = new TVManager(aTVProxy)
        manager.reactOnUserInput()

代理模式适合应用场景

使用代理模式的方式多种多样， 我们来看看最常见的几种。

延迟初始化（虚拟代理）。如果你有一个偶尔使用的重量级服务对象，一直保持该对象运行会消耗系统资源时，可使用代理模式。

你无需在程序启动时就创建该对象， 可将对象的初始化延迟到真正有需要的时候。

访问控制（保护代理）。如果你只希望特定客户端使用服务对象，这里的对象可以是操作系统中非常重要的部分，而客户端则是各种已启动的程序（包括恶意程序），此时可使用代理模式。

代理可仅在客户端凭据满足要求时将请求传递给服务对象。

本地执行远程服务（远程代理）。适用于服务对象位于远程服务器上的情形。

在这种情形中， 代理通过网络传递客户端请求， 负责处理所有与网络相关的复杂细节。

记录日志请求（日志记录代理）。适用于当你需要保存对于服务对象的请求历史记录时。代理可以在向服务传递请求前进行记录。

缓存请求结果 （缓存代理）。 适用于需要缓存客户请求结果并对缓存生命周期进行管理时， 特别是当返回结果的体积非常大时。

  • 代理可对重复请求所需的相同结果进行缓存， 还可使用请求参数作为索引缓存的键值。

智能引用。可在没有客户端使用某个重量级对象时立即销毁该对象。

代理会将所有获取了指向服务对象或其结果的客户端记录在案。 代理会时不时地遍历各个客户端， 检查它们是否仍在运行。 如果相应的客户端列表为空， 代理就会销毁该服务对象， 释放底层系统资源。

代理还可以记录客户端是否修改了服务对象。 其他客户端还可以复用未修改的对象。

实现方式

  1. 如果没有现成的服务接口， 你就需要创建一个接口来实现代理和服务对象的可交换性。 从服务类中抽取接口并非总是可行的， 因为你需要对服务的所有客户端进行修改， 让它们使用接口。 备选计划是将代理作为服务类的子类， 这样代理就能继承服务的所有接口了。
  2. 创建代理类， 其中必须包含一个存储指向服务的引用的成员变量。 通常情况下， 代理负责创建服务并对其整个生命周期进行管理。 在一些特殊情况下， 客户端会通过构造函数将服务传递给代理。
  3. 根据需求实现代理方法。 在大部分情况下， 代理在完成一些任务后应将工作委派给服务对象。
  4. 可以考虑新建一个构建方法来判断客户端可获取的是代理还是实际服务。 你可以在代理类中创建一个简单的静态方法， 也可以创建一个完整的工厂方法。
  5. 可以考虑为服务对象实现延迟初始化。

代理模式优缺点

优点

  • 你可以在客户端毫无察觉的情况下控制服务对象。
  • 如果客户端对服务对象的生命周期没有特殊要求， 你可以对生命周期进行管理。
  • 即使服务对象还未准备好或不存在， 代理也可以正常工作。
  • 开闭原则。 你可以在不对服务或客户端做出修改的情况下创建新代理。

缺点

  • 代码可能会变得复杂， 因为需要新建许多类。
  • 服务响应可能会延迟。

与其他模式的关系

  • 适配器模式能为被封装对象提供不同的接口， 代理模式能为对象提供相同的接口， 装饰模式则能为对象提供加强的接口。
  • 外观模式与代理的相似之处在于它们都缓存了一个复杂实体并自行对其进行初始化。 代理与其服务对象遵循同一接口， 使得自己和服务对象可以互换， 在这一点上它与外观不同。
  • 装饰和代理有着相似的结构， 但是其意图却非常不同。 这两个模式的构建都基于组合原则， 也就是说一个对象应该将部分工作委派给另一个对象。 两者之间的不同之处在于代理通常自行管理其服务对象的生命周期， 而装饰的生成则总是由客户端进行控制。

代码示例

代理是一种结构型设计模式， 让你能提供真实服务对象的替代品给客户端使用。 代理接收客户端的请求并进行一些处理 （访问控制和缓存等）， 然后再将请求传递给服务对象。

代理对象拥有和服务对象相同的接口， 这使得当其被传递给客户端时可与真实对象互换。

在 C# 中使用模式

复杂度： ★★☆

流行度： ★☆☆

使用示例： 尽管代理模式在绝大多数 C# 程序中并不常见， 但它在一些特殊情况下仍然非常方便。 当你希望在无需修改客户代码的前提下于已有类的对象上增加额外行为时， 该模式是无可替代的。

识别方法： 代理模式会将所有实际工作委派给一些其他对象。 除非代理是某个服务的子类， 否则每个代理方法最后都应该引用一个服务对象。

概念示例

本例说明了代理设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

Program.cs: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
using System;

namespace RefactoringGuru.DesignPatterns.Proxy.Conceptual
{
    // The Subject interface declares common operations for both RealSubject and
    // the Proxy. As long as the client works with RealSubject using this
    // interface, you'll be able to pass it a proxy instead of a real subject.
    public interface ISubject
    {
        void Request();
    }

    // The RealSubject contains some core business logic. Usually, RealSubjects
    // are capable of doing some useful work which may also be very slow or
    // sensitive - e.g. correcting input data. A Proxy can solve these issues
    // without any changes to the RealSubject's code.
    class RealSubject : ISubject
    {
        public void Request()
        {
            Console.WriteLine("RealSubject: Handling Request.");
        }
    }

    // The Proxy has an interface identical to the RealSubject.
    class Proxy : ISubject
    {
        private RealSubject _realSubject;

        public Proxy(RealSubject realSubject)
        {
            this._realSubject = realSubject;
        }

        // The most common applications of the Proxy pattern are lazy loading,
        // caching, controlling the access, logging, etc. A Proxy can perform
        // one of these things and then, depending on the result, pass the
        // execution to the same method in a linked RealSubject object.
        public void Request()
        {
            if (this.CheckAccess())
            {
                this._realSubject.Request();

                this.LogAccess();
            }
        }

        public bool CheckAccess()
        {
            // Some real checks should go here.
            Console.WriteLine("Proxy: Checking access prior to firing a real request.");

            return true;
        }

        public void LogAccess()
        {
            Console.WriteLine("Proxy: Logging the time of request.");
        }
    }

    public class Client
    {
        // The client code is supposed to work with all objects (both subjects
        // and proxies) via the Subject interface in order to support both real
        // subjects and proxies. In real life, however, clients mostly work with
        // their real subjects directly. In this case, to implement the pattern
        // more easily, you can extend your proxy from the real subject's class.
        public void ClientCode(ISubject subject)
        {
            // ...

            subject.Request();

            // ...
        }
    }

    class Program
    {
        static void Main(string[] args)
        {
            Client client = new Client();

            Console.WriteLine("Client: Executing the client code with a real subject:");
            RealSubject realSubject = new RealSubject();
            client.ClientCode(realSubject);

            Console.WriteLine();

            Console.WriteLine("Client: Executing the same client code with a proxy:");
            Proxy proxy = new Proxy(realSubject);
            client.ClientCode(proxy);
        }
    }
}

Output.txt: 执行结果

1
2
3
4
5
6
7
Client: Executing the client code with a real subject:
RealSubject: Handling Request.

Client: Executing the same client code with a proxy:
Proxy: Checking access prior to firing a real request.
RealSubject: Handling Request.
Proxy: Logging the time of request.

在 C++ 中使用模式

复杂度： ★★☆

流行度： ★☆☆

使用示例： 尽管代理模式在绝大多数 C++ 程序中并不常见， 但它在一些特殊情况下仍然非常方便。 当你希望在无需修改客户代码的前提下于已有类的对象上增加额外行为时， 该模式是无可替代的。

识别方法： 代理模式会将所有实际工作委派给一些其他对象。 除非代理是某个服务的子类， 否则每个代理方法最后都应该引用一个服务对象。

概念示例

本例说明了代理设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

main.cc: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
#include <iostream>
/**
 * The Subject interface declares common operations for both RealSubject and the
 * Proxy. As long as the client works with RealSubject using this interface,
 * you'll be able to pass it a proxy instead of a real subject.
 */
class Subject {
 public:
  virtual void Request() const = 0;
};
/**
 * The RealSubject contains some core business logic. Usually, RealSubjects are
 * capable of doing some useful work which may also be very slow or sensitive -
 * e.g. correcting input data. A Proxy can solve these issues without any
 * changes to the RealSubject's code.
 */
class RealSubject : public Subject {
 public:
  void Request() const override {
    std::cout << "RealSubject: Handling request.\n";
  }
};
/**
 * The Proxy has an interface identical to the RealSubject.
 */
class Proxy : public Subject {
  /**
   * @var RealSubject
   */
 private:
  RealSubject *real_subject_;

  bool CheckAccess() const {
    // Some real checks should go here.
    std::cout << "Proxy: Checking access prior to firing a real request.\n";
    return true;
  }
  void LogAccess() const {
    std::cout << "Proxy: Logging the time of request.\n";
  }

  /**
   * The Proxy maintains a reference to an object of the RealSubject class. It
   * can be either lazy-loaded or passed to the Proxy by the client.
   */
 public:
  Proxy(RealSubject *real_subject) : real_subject_(new RealSubject(*real_subject)) {
  }

  ~Proxy() {
    delete real_subject_;
  }
  /**
   * The most common applications of the Proxy pattern are lazy loading,
   * caching, controlling the access, logging, etc. A Proxy can perform one of
   * these things and then, depending on the result, pass the execution to the
   * same method in a linked RealSubject object.
   */
  void Request() const override {
    if (this->CheckAccess()) {
      this->real_subject_->Request();
      this->LogAccess();
    }
  }
};
/**
 * The client code is supposed to work with all objects (both subjects and
 * proxies) via the Subject interface in order to support both real subjects and
 * proxies. In real life, however, clients mostly work with their real subjects
 * directly. In this case, to implement the pattern more easily, you can extend
 * your proxy from the real subject's class.
 */
void ClientCode(const Subject &subject) {
  // ...
  subject.Request();
  // ...
}

int main() {
  std::cout << "Client: Executing the client code with a real subject:\n";
  RealSubject *real_subject = new RealSubject;
  ClientCode(*real_subject);
  std::cout << "\n";
  std::cout << "Client: Executing the same client code with a proxy:\n";
  Proxy *proxy = new Proxy(real_subject);
  ClientCode(*proxy);

  delete real_subject;
  delete proxy;
  return 0;
}

Output.txt: 执行结果

1
2
3
4
5
6
7
Client: Executing the client code with a real subject:
RealSubject: Handling request.

Client: Executing the same client code with a proxy:
Proxy: Checking access prior to firing a real request.
RealSubject: Handling request.
Proxy: Logging the time of request.

在 Java 中使用模式

复杂度： ★★☆

流行度： ★☆☆

使用示例： 尽管代理模式在绝大多数 Java 程序中并不常见， 但它在一些特殊情况下仍然非常方便。 当你希望在无需修改客户代码的前提下于已有类的对象上增加额外行为时， 该模式是无可替代的。

Java 标准程序库中的一些代理模式的示例：

识别方法： 代理模式会将所有实际工作委派给一些其他对象。 除非代理是某个服务的子类， 否则每个代理方法最后都应该引用一个服务对象。

缓存代理

在本例中， 代理模式有助于实现延迟初始化， 并对低效的第三方 YouTube 集成程序库进行缓存。

当你需要在无法修改代码的类上新增一些额外行为时， 代理模式的价值无可估量。

some_cool_media_library

some_cool_media_library/ThirdPartyYouTubeLib.java: 远程服务接口

1
2
3
4
5
6
7
8
9
package refactoring_guru.proxy.example.some_cool_media_library;

import java.util.HashMap;

public interface ThirdPartyYouTubeLib {
    HashMap<String, Video> popularVideos();

    Video getVideo(String videoId);
}

some_cool_media_library/ThirdPartyYouTubeClass.java: 远程服务实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
package refactoring_guru.proxy.example.some_cool_media_library;

import java.util.HashMap;

public class ThirdPartyYouTubeClass implements ThirdPartyYouTubeLib {

    @Override
    public HashMap<String, Video> popularVideos() {
        connectToServer("http://www.youtube.com");
        return getRandomVideos();
    }

    @Override
    public Video getVideo(String videoId) {
        connectToServer("http://www.youtube.com/" + videoId);
        return getSomeVideo(videoId);
    }

    // -----------------------------------------------------------------------
    // Fake methods to simulate network activity. They as slow as a real life.

    private int random(int min, int max) {
        return min + (int) (Math.random() * ((max - min) + 1));
    }

    private void experienceNetworkLatency() {
        int randomLatency = random(5, 10);
        for (int i = 0; i < randomLatency; i++) {
            try {
                Thread.sleep(100);
            } catch (InterruptedException ex) {
                ex.printStackTrace();
            }
        }
    }

    private void connectToServer(String server) {
        System.out.print("Connecting to " + server + "... ");
        experienceNetworkLatency();
        System.out.print("Connected!" + "\n");
    }

    private HashMap<String, Video> getRandomVideos() {
        System.out.print("Downloading populars... ");

        experienceNetworkLatency();
        HashMap<String, Video> hmap = new HashMap<String, Video>();
        hmap.put("catzzzzzzzzz", new Video("sadgahasgdas", "Catzzzz.avi"));
        hmap.put("mkafksangasj", new Video("mkafksangasj", "Dog play with ball.mp4"));
        hmap.put("dancesvideoo", new Video("asdfas3ffasd", "Dancing video.mpq"));
        hmap.put("dlsdk5jfslaf", new Video("dlsdk5jfslaf", "Barcelona vs RealM.mov"));
        hmap.put("3sdfgsd1j333", new Video("3sdfgsd1j333", "Programing lesson#1.avi"));

        System.out.print("Done!" + "\n");
        return hmap;
    }

    private Video getSomeVideo(String videoId) {
        System.out.print("Downloading video... ");

        experienceNetworkLatency();
        Video video = new Video(videoId, "Some video title");

        System.out.print("Done!" + "\n");
        return video;
    }

}

some_cool_media_library/Video.java: 视频文件

1
2
3
4
5
6
7
8
9
10
11
12
13
package refactoring_guru.proxy.example.some_cool_media_library;

public class Video {
    public String id;
    public String title;
    public String data;

    Video(String id, String title) {
        this.id = id;
        this.title = title;
        this.data = "Random video.";
    }
}

proxy

proxy/YouTubeCacheProxy.java: 缓存代理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
package refactoring_guru.proxy.example.proxy;

import refactoring_guru.proxy.example.some_cool_media_library.ThirdPartyYouTubeClass;
import refactoring_guru.proxy.example.some_cool_media_library.ThirdPartyYouTubeLib;
import refactoring_guru.proxy.example.some_cool_media_library.Video;

import java.util.HashMap;

public class YouTubeCacheProxy implements ThirdPartyYouTubeLib {
    private ThirdPartyYouTubeLib youtubeService;
    private HashMap<String, Video> cachePopular = new HashMap<String, Video>();
    private HashMap<String, Video> cacheAll = new HashMap<String, Video>();

    public YouTubeCacheProxy() {
        this.youtubeService = new ThirdPartyYouTubeClass();
    }

    @Override
    public HashMap<String, Video> popularVideos() {
        if (cachePopular.isEmpty()) {
            cachePopular = youtubeService.popularVideos();
        } else {
            System.out.println("Retrieved list from cache.");
        }
        return cachePopular;
    }

    @Override
    public Video getVideo(String videoId) {
        Video video = cacheAll.get(videoId);
        if (video == null) {
            video = youtubeService.getVideo(videoId);
            cacheAll.put(videoId, video);
        } else {
            System.out.println("Retrieved video '" + videoId + "' from cache.");
        }
        return video;
    }

    public void reset() {
        cachePopular.clear();
        cacheAll.clear();
    }
}

downloader

downloader/YouTubeDownloader.java: 媒体下载应用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
package refactoring_guru.proxy.example.downloader;

import refactoring_guru.proxy.example.some_cool_media_library.ThirdPartyYouTubeLib;
import refactoring_guru.proxy.example.some_cool_media_library.Video;

import java.util.HashMap;

public class YouTubeDownloader {
    private ThirdPartyYouTubeLib api;

    public YouTubeDownloader(ThirdPartyYouTubeLib api) {
        this.api = api;
    }

    public void renderVideoPage(String videoId) {
        Video video = api.getVideo(videoId);
        System.out.println("\n-------------------------------");
        System.out.println("Video page (imagine fancy HTML)");
        System.out.println("ID: " + video.id);
        System.out.println("Title: " + video.title);
        System.out.println("Video: " + video.data);
        System.out.println("-------------------------------\n");
    }

    public void renderPopularVideos() {
        HashMap<String, Video> list = api.popularVideos();
        System.out.println("\n-------------------------------");
        System.out.println("Most popular videos on YouTube (imagine fancy HTML)");
        for (Video video : list.values()) {
            System.out.println("ID: " + video.id + " / Title: " + video.title);
        }
        System.out.println("-------------------------------\n");
    }
}

Demo.java: 初始化代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
package refactoring_guru.proxy.example;

import refactoring_guru.proxy.example.downloader.YouTubeDownloader;
import refactoring_guru.proxy.example.proxy.YouTubeCacheProxy;
import refactoring_guru.proxy.example.some_cool_media_library.ThirdPartyYouTubeClass;

public class Demo {

    public static void main(String[] args) {
        YouTubeDownloader naiveDownloader = new YouTubeDownloader(new ThirdPartyYouTubeClass());
        YouTubeDownloader smartDownloader = new YouTubeDownloader(new YouTubeCacheProxy());

        long naive = test(naiveDownloader);
        long smart = test(smartDownloader);
        System.out.print("Time saved by caching proxy: " + (naive - smart) + "ms");

    }

    private static long test(YouTubeDownloader downloader) {
        long startTime = System.currentTimeMillis();

        // User behavior in our app:
        downloader.renderPopularVideos();
        downloader.renderVideoPage("catzzzzzzzzz");
        downloader.renderPopularVideos();
        downloader.renderVideoPage("dancesvideoo");
        // Users might visit the same page quite often.
        downloader.renderVideoPage("catzzzzzzzzz");
        downloader.renderVideoPage("someothervid");

        long estimatedTime = System.currentTimeMillis() - startTime;
        System.out.print("Time elapsed: " + estimatedTime + "ms\n");
        return estimatedTime;
    }
}

OutputDemo.png: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
Connecting to http://www.youtube.com... Connected!
Downloading populars... Done!

-------------------------------
Most popular videos on YouTube (imagine fancy HTML)
ID: sadgahasgdas / Title: Catzzzz.avi
ID: asdfas3ffasd / Title: Dancing video.mpq
ID: 3sdfgsd1j333 / Title: Programing lesson#1.avi
ID: mkafksangasj / Title: Dog play with ball.mp4
ID: dlsdk5jfslaf / Title: Barcelona vs RealM.mov
-------------------------------

Connecting to http://www.youtube.com/catzzzzzzzzz... Connected!
Downloading video... Done!

-------------------------------
Video page (imagine fancy HTML)
ID: catzzzzzzzzz
Title: Some video title
Video: Random video.
-------------------------------

Connecting to http://www.youtube.com... Connected!
Downloading populars... Done!

-------------------------------
Most popular videos on YouTube (imagine fancy HTML)
ID: sadgahasgdas / Title: Catzzzz.avi
ID: asdfas3ffasd / Title: Dancing video.mpq
ID: 3sdfgsd1j333 / Title: Programing lesson#1.avi
ID: mkafksangasj / Title: Dog play with ball.mp4
ID: dlsdk5jfslaf / Title: Barcelona vs RealM.mov
-------------------------------

Connecting to http://www.youtube.com/dancesvideoo... Connected!
Downloading video... Done!

-------------------------------
Video page (imagine fancy HTML)
ID: dancesvideoo
Title: Some video title
Video: Random video.
-------------------------------

Connecting to http://www.youtube.com/catzzzzzzzzz... Connected!
Downloading video... Done!

-------------------------------
Video page (imagine fancy HTML)
ID: catzzzzzzzzz
Title: Some video title
Video: Random video.
-------------------------------

Connecting to http://www.youtube.com/someothervid... Connected!
Downloading video... Done!

-------------------------------
Video page (imagine fancy HTML)
ID: someothervid
Title: Some video title
Video: Random video.
-------------------------------

Time elapsed: 9354ms
Connecting to http://www.youtube.com... Connected!
Downloading populars... Done!

-------------------------------
Most popular videos on YouTube (imagine fancy HTML)
ID: sadgahasgdas / Title: Catzzzz.avi
ID: asdfas3ffasd / Title: Dancing video.mpq
ID: 3sdfgsd1j333 / Title: Programing lesson#1.avi
ID: mkafksangasj / Title: Dog play with ball.mp4
ID: dlsdk5jfslaf / Title: Barcelona vs RealM.mov
-------------------------------

Connecting to http://www.youtube.com/catzzzzzzzzz... Connected!
Downloading video... Done!

-------------------------------
Video page (imagine fancy HTML)
ID: catzzzzzzzzz
Title: Some video title
Video: Random video.
-------------------------------

Retrieved list from cache.

-------------------------------
Most popular videos on YouTube (imagine fancy HTML)
ID: sadgahasgdas / Title: Catzzzz.avi
ID: asdfas3ffasd / Title: Dancing video.mpq
ID: 3sdfgsd1j333 / Title: Programing lesson#1.avi
ID: mkafksangasj / Title: Dog play with ball.mp4
ID: dlsdk5jfslaf / Title: Barcelona vs RealM.mov
-------------------------------

Connecting to http://www.youtube.com/dancesvideoo... Connected!
Downloading video... Done!

-------------------------------
Video page (imagine fancy HTML)
ID: dancesvideoo
Title: Some video title
Video: Random video.
-------------------------------

Retrieved video 'catzzzzzzzzz' from cache.

-------------------------------
Video page (imagine fancy HTML)
ID: catzzzzzzzzz
Title: Some video title
Video: Random video.
-------------------------------

Connecting to http://www.youtube.com/someothervid... Connected!
Downloading video... Done!

-------------------------------
Video page (imagine fancy HTML)
ID: someothervid
Title: Some video title
Video: Random video.
-------------------------------

Time elapsed: 5875ms
Time saved by caching proxy: 3479ms

在 PHP 中使用模式

复杂度： ★★☆

流行度： ★☆☆

使用示例： 尽管代理模式在绝大多数 PHP 程序中并不常见， 但它在一些特殊情况下仍然非常方便。 当你希望在无需修改客户代码的前提下于已有类的对象上增加额外行为时， 该模式是无可替代的。

识别方法： 代理模式会将所有实际工作委派给一些其他对象。 除非代理是某个服务的子类， 否则每个代理方法最后都应该引用一个服务对象。

概念示例

本例说明了代理设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

了解该模式的结构后， 你可以更容易地理解下面基于真实世界的 PHP 应用案例。

index.php: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
<?php

namespace RefactoringGuru\Proxy\Conceptual;

/**
 * The Subject interface declares common operations for both RealSubject and the
 * Proxy. As long as the client works with RealSubject using this interface,
 * you'll be able to pass it a proxy instead of a real subject.
 */
interface Subject
{
    public function request(): void;
}

/**
 * The RealSubject contains some core business logic. Usually, RealSubjects are
 * capable of doing some useful work which may also be very slow or sensitive -
 * e.g. correcting input data. A Proxy can solve these issues without any
 * changes to the RealSubject's code.
 */
class RealSubject implements Subject
{
    public function request(): void
    {
        echo "RealSubject: Handling request.\n";
    }
}

/**
 * The Proxy has an interface identical to the RealSubject.
 */
class Proxy implements Subject
{
    /**
     * @var RealSubject
     */
    private $realSubject;

    /**
     * The Proxy maintains a reference to an object of the RealSubject class. It
     * can be either lazy-loaded or passed to the Proxy by the client.
     */
    public function __construct(RealSubject $realSubject)
    {
        $this->realSubject = $realSubject;
    }

    /**
     * The most common applications of the Proxy pattern are lazy loading,
     * caching, controlling the access, logging, etc. A Proxy can perform one of
     * these things and then, depending on the result, pass the execution to the
     * same method in a linked RealSubject object.
     */
    public function request(): void
    {
        if ($this->checkAccess()) {
            $this->realSubject->request();
            $this->logAccess();
        }
    }

    private function checkAccess(): bool
    {
        // Some real checks should go here.
        echo "Proxy: Checking access prior to firing a real request.\n";

        return true;
    }

    private function logAccess(): void
    {
        echo "Proxy: Logging the time of request.\n";
    }
}

/**
 * The client code is supposed to work with all objects (both subjects and
 * proxies) via the Subject interface in order to support both real subjects and
 * proxies. In real life, however, clients mostly work with their real subjects
 * directly. In this case, to implement the pattern more easily, you can extend
 * your proxy from the real subject's class.
 */
function clientCode(Subject $subject)
{
    // ...

    $subject->request();

    // ...
}

echo "Client: Executing the client code with a real subject:\n";
$realSubject = new RealSubject();
clientCode($realSubject);

echo "\n";

echo "Client: Executing the same client code with a proxy:\n";
$proxy = new Proxy($realSubject);
clientCode($proxy);

Output.txt: 执行结果

1
2
3
4
5
6
7
Client: Executing the client code with a real subject:
RealSubject: Handling request.

Client: Executing the same client code with a proxy:
Proxy: Checking access prior to firing a real request.
RealSubject: Handling request.
Proxy: Logging the time of request.

真实世界示例

可供使用的代理类型有无数种： 缓存、 日志、 访问控制和延迟初始化等。 本例演示了代理模式如何通过对结果进行缓存来提高下载器对象的性能。

index.php: 真实世界示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
<?php

namespace RefactoringGuru\Proxy\RealWorld;

/**
 * The Subject interface describes the interface of a real object.
 *
 * The truth is that many real apps may not have this interface clearly defined.
 * If you're in that boat, your best bet would be to extend the Proxy from one
 * of your existing application classes. If that's awkward, then extracting a
 * proper interface should be your first step.
 */
interface Downloader
{
    public function download(string $url): string;
}

/**
 * The Real Subject does the real job, albeit not in the most efficient way.
 * When a client tries to download the same file for the second time, our
 * downloader does just that, instead of fetching the result from cache.
 */
class SimpleDownloader implements Downloader
{
    public function download(string $url): string
    {
        echo "Downloading a file from the Internet.\n";
        $result = file_get_contents($url);
        echo "Downloaded bytes: " . strlen($result) . "\n";

        return $result;
    }
}

/**
 * The Proxy class is our attempt to make the download more efficient. It wraps
 * the real downloader object and delegates it the first download calls. The
 * result is then cached, making subsequent calls return an existing file
 * instead of downloading it again.
 *
 * Note that the Proxy MUST implement the same interface as the Real Subject.
 */
class CachingDownloader implements Downloader
{
    /**
     * @var SimpleDownloader
     */
    private $downloader;

    /**
     * @var string[]
     */
    private $cache = [];

    public function __construct(SimpleDownloader $downloader)
    {
        $this->downloader = $downloader;
    }

    public function download(string $url): string
    {
        if (!isset($this->cache[$url])) {
            echo "CacheProxy MISS. ";
            $result = $this->downloader->download($url);
            $this->cache[$url] = $result;
        } else {
            echo "CacheProxy HIT. Retrieving result from cache.\n";
        }
        return $this->cache[$url];
    }
}

/**
 * The client code may issue several similar download requests. In this case,
 * the caching proxy saves time and traffic by serving results from cache.
 *
 * The client is unaware that it works with a proxy because it works with
 * downloaders via the abstract interface.
 */
function clientCode(Downloader $subject)
{
    // ...

    $result = $subject->download("http://example.com/");

    // Duplicate download requests could be cached for a speed gain.

    $result = $subject->download("http://example.com/");

    // ...
}

echo "Executing client code with real subject:\n";
$realSubject = new SimpleDownloader();
clientCode($realSubject);

echo "\n";

echo "Executing the same client code with a proxy:\n";
$proxy = new CachingDownloader($realSubject);
clientCode($proxy);

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
Executing client code with real subject:
Downloading a file from the Internet.
Downloaded bytes: 1270
Downloading a file from the Internet.
Downloaded bytes: 1270

Executing the same client code with a proxy:
CacheProxy MISS. Downloading a file from the Internet.
Downloaded bytes: 1270
CacheProxy HIT. Retrieving result from cache.

在 Python 中使用模式

复杂度： ★★☆

流行度： ★☆☆

使用示例： 尽管代理模式在绝大多数 Python 程序中并不常见， 但它在一些特殊情况下仍然非常方便。 当你希望在无需修改客户代码的前提下于已有类的对象上增加额外行为时， 该模式是无可替代的。

识别方法： 代理模式会将所有实际工作委派给一些其他对象。 除非代理是某个服务的子类， 否则每个代理方法最后都应该引用一个服务对象。

概念示例

本例说明了代理设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

main.py: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
from abc import ABC, abstractmethod


class Subject(ABC):
    """
    The Subject interface declares common operations for both RealSubject and
    the Proxy. As long as the client works with RealSubject using this
    interface, you'll be able to pass it a proxy instead of a real subject.
    """

    @abstractmethod
    def request(self) -> None:
        pass


class RealSubject(Subject):
    """
    The RealSubject contains some core business logic. Usually, RealSubjects are
    capable of doing some useful work which may also be very slow or sensitive -
    e.g. correcting input data. A Proxy can solve these issues without any
    changes to the RealSubject's code.
    """

    def request(self) -> None:
        print("RealSubject: Handling request.")


class Proxy(Subject):
    """
    The Proxy has an interface identical to the RealSubject.
    """

    def __init__(self, real_subject: RealSubject) -> None:
        self._real_subject = real_subject

    def request(self) -> None:
        """
        The most common applications of the Proxy pattern are lazy loading,
        caching, controlling the access, logging, etc. A Proxy can perform one
        of these things and then, depending on the result, pass the execution to
        the same method in a linked RealSubject object.
        """

        if self.check_access():
            self._real_subject.request()
            self.log_access()

    def check_access(self) -> bool:
        print("Proxy: Checking access prior to firing a real request.")
        return True

    def log_access(self) -> None:
        print("Proxy: Logging the time of request.", end="")


def client_code(subject: Subject) -> None:
    """
    The client code is supposed to work with all objects (both subjects and
    proxies) via the Subject interface in order to support both real subjects
    and proxies. In real life, however, clients mostly work with their real
    subjects directly. In this case, to implement the pattern more easily, you
    can extend your proxy from the real subject's class.
    """

    # ...

    subject.request()

    # ...


if __name__ == "__main__":
    print("Client: Executing the client code with a real subject:")
    real_subject = RealSubject()
    client_code(real_subject)

    print("")

    print("Client: Executing the same client code with a proxy:")
    proxy = Proxy(real_subject)
    client_code(proxy)

Output.txt: 执行结果

1
2
3
4
5
6
7
Client: Executing the client code with a real subject:
RealSubject: Handling request.

Client: Executing the same client code with a proxy:
Proxy: Checking access prior to firing a real request.
RealSubject: Handling request.
Proxy: Logging the time of request.

在 Ruby 中使用模式

复杂度： ★★☆

流行度： ★☆☆

使用示例： 尽管代理模式在绝大多数 Ruby 程序中并不常见， 但它在一些特殊情况下仍然非常方便。 当你希望在无需修改客户代码的前提下于已有类的对象上增加额外行为时， 该模式是无可替代的。

识别方法： 代理模式会将所有实际工作委派给一些其他对象。 除非代理是某个服务的子类， 否则每个代理方法最后都应该引用一个服务对象。

概念示例

本例说明了代理设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

main.rb: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
# The Subject interface declares common operations for both RealSubject and the
# Proxy. As long as the client works with RealSubject using this interface,
# you'll be able to pass it a proxy instead of a real subject.
class Subject
  # @abstract
  def request
    raise NotImplementedError, "#{self.class} has not implemented method '#{__method__}'"
  end
end

# The RealSubject contains some core business logic. Usually, RealSubjects are
# capable of doing some useful work which may also be very slow or sensitive -
# e.g. correcting input data. A Proxy can solve these issues without any changes
# to the RealSubject's code.
class RealSubject < Subject
  def request
    puts 'RealSubject: Handling request.'
  end
end

# The Proxy has an interface identical to the RealSubject.
class Proxy < Subject
  # @param [RealSubject] real_subject
  def initialize(real_subject)
    @real_subject = real_subject
  end

  # The most common applications of the Proxy pattern are lazy loading, caching,
  # controlling the access, logging, etc. A Proxy can perform one of these
  # things and then, depending on the result, pass the execution to the same
  # method in a linked RealSubject object.
  def request
    return unless check_access

    @real_subject.request
    log_access
  end

  # @return [Boolean]
  def check_access
    puts 'Proxy: Checking access prior to firing a real request.'
    true
  end

  def log_access
    print 'Proxy: Logging the time of request.'
  end
end

# The client code is supposed to work with all objects (both subjects and
# proxies) via the Subject interface in order to support both real subjects and
# proxies. In real life, however, clients mostly work with their real subjects
# directly. In this case, to implement the pattern more easily, you can extend
# your proxy from the real subject's class.
def client_code(subject)
  # ...

  subject.request

  # ...
end

puts 'Client: Executing the client code with a real subject:'
real_subject = RealSubject.new
client_code(real_subject)

puts "\n"

puts 'Client: Executing the same client code with a proxy:'
proxy = Proxy.new(real_subject)
client_code(proxy)

output.txt: 执行结果

1
2
3
4
5
6
7
Client: Executing the client code with a real subject:
RealSubject: Handling request.

Client: Executing the same client code with a proxy:
Proxy: Checking access prior to firing a real request.
RealSubject: Handling request.
Proxy: Logging the time of request.

在 Swift 中使用模式

复杂度： ★★☆

流行度： ★☆☆

使用示例： 尽管代理模式在绝大多数 Swift 程序中并不常见， 但它在一些特殊情况下仍然非常方便。 当你希望在无需修改客户代码的前提下于已有类的对象上增加额外行为时， 该模式是无可替代的。

识别方法： 代理模式会将所有实际工作委派给一些其他对象。 除非代理是某个服务的子类， 否则每个代理方法最后都应该引用一个服务对象。

概念示例

本例说明了代理设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

了解该模式的结构后， 你可以更容易地理解下面基于真实世界的 Swift 应用案例。

Example.swift: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
import XCTest

/// The Subject interface declares common operations for both RealSubject and
/// the Proxy. As long as the client works with RealSubject using this
/// interface, you'll be able to pass it a proxy instead of a real subject.
protocol Subject {

    func request()
}

/// The RealSubject contains some core business logic. Usually, RealSubjects are
/// capable of doing some useful work which may also be very slow or sensitive -
/// e.g. correcting input data. A Proxy can solve these issues without any
/// changes to the RealSubject's code.
class RealSubject: Subject {

    func request() {
        print("RealSubject: Handling request.")
    }
}

/// The Proxy has an interface identical to the RealSubject.
class Proxy: Subject {

    private var realSubject: RealSubject

    /// The Proxy maintains a reference to an object of the RealSubject class.
    /// It can be either lazy-loaded or passed to the Proxy by the client.
    init(_ realSubject: RealSubject) {
        self.realSubject = realSubject
    }

    /// The most common applications of the Proxy pattern are lazy loading,
    /// caching, controlling the access, logging, etc. A Proxy can perform one
    /// of these things and then, depending on the result, pass the execution to
    /// the same method in a linked RealSubject object.
    func request() {

        if (checkAccess()) {
            realSubject.request()
            logAccess()
        }
    }

    private func checkAccess() -> Bool {

        /// Some real checks should go here.

        print("Proxy: Checking access prior to firing a real request.")

        return true
    }

    private func logAccess() {
        print("Proxy: Logging the time of request.")
    }
}

/// The client code is supposed to work with all objects (both subjects and
/// proxies) via the Subject interface in order to support both real subjects
/// and proxies. In real life, however, clients mostly work with their real
/// subjects directly. In this case, to implement the pattern more easily, you
/// can extend your proxy from the real subject's class.
class Client {
    // ...
    static func clientCode(subject: Subject) {
        // ...
        print(subject.request())
        // ...
    }
    // ...
}

/// Let's see how it all works together.
class ProxyConceptual: XCTestCase {

    func test() {
        print("Client: Executing the client code with a real subject:")
        let realSubject = RealSubject()
        Client.clientCode(subject: realSubject)

        print("\nClient: Executing the same client code with a proxy:")
        let proxy = Proxy(realSubject)
        Client.clientCode(subject: proxy)
    }
}

Output.txt: 执行结果

1

真实世界示例

Example.swift: 真实世界示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
import XCTest

class ProxyRealWorld: XCTestCase {

    /// Proxy Design Pattern
    ///
    /// Intent: Provide a surrogate or placeholder for another object to control
    /// access to the original object or to add other responsibilities.
    ///
    /// Example: There are countless ways proxies can be used: caching, logging,
    /// access control, delayed initialization, etc.

    func testProxyRealWorld() {

        print("Client: Loading a profile WITHOUT proxy")
        loadBasicProfile(with: Keychain())
        loadProfileWithBankAccount(with: Keychain())

        print("\nClient: Let's load a profile WITH proxy")
        loadBasicProfile(with: ProfileProxy())
        loadProfileWithBankAccount(with: ProfileProxy())
    }

    func loadBasicProfile(with service: ProfileService) {

        service.loadProfile(with: [.basic], success: { profile in
            print("Client: Basic profile is loaded")
        }) { error in
            print("Client: Cannot load a basic profile")
            print("Client: Error: " + error.localizedSummary)
        }
    }

    func loadProfileWithBankAccount(with service: ProfileService) {

        service.loadProfile(with: [.basic, .bankAccount], success: { profile in
            print("Client: Basic profile with a bank account is loaded")
        }) { error in
            print("Client: Cannot load a profile with a bank account")
            print("Client: Error: " + error.localizedSummary)
        }
    }
}

enum AccessField {

    case basic
    case bankAccount
}

protocol ProfileService {

    typealias Success = (Profile) -> ()
    typealias Failure = (LocalizedError) -> ()

    func loadProfile(with fields: [AccessField], success: Success, failure: Failure)
}

class ProfileProxy: ProfileService {

    private let keychain = Keychain()

    func loadProfile(with fields: [AccessField], success: Success, failure: Failure) {

        if let error = checkAccess(for: fields) {
            failure(error)
        } else {
            /// Note:
            /// At this point, the `success` and `failure` closures can be
            /// passed directly to the original service (as it is now) or
            /// expanded here to handle a result (for example, to cache).

            keychain.loadProfile(with: fields, success: success, failure: failure)
        }
    }

    private func checkAccess(for fields: [AccessField]) -> LocalizedError? {
        if fields.contains(.bankAccount) {
            switch BiometricsService.checkAccess() {
            case .authorized: return nil
            case .denied: return ProfileError.accessDenied
            }
        }
        return nil
    }
}

class Keychain: ProfileService {

    func loadProfile(with fields: [AccessField], success: Success, failure: Failure) {

        var profile = Profile()

        for item in fields {
            switch item {
            case .basic:
                let info = loadBasicProfile()
                profile.firstName = info[Profile.Keys.firstName.raw]
                profile.lastName = info[Profile.Keys.lastName.raw]
                profile.email = info[Profile.Keys.email.raw]
            case .bankAccount:
                profile.bankAccount = loadBankAccount()
            }
        }

        success(profile)
    }

    private func loadBasicProfile() -> [String : String] {
        /// Gets these fields from a secure storage.
        return [Profile.Keys.firstName.raw : "Vasya",
                Profile.Keys.lastName.raw : "Pupkin",
                Profile.Keys.email.raw : "vasya.pupkin@gmail.com"]
    }

    private func loadBankAccount() -> BankAccount {
        /// Gets these fields from a secure storage.
        return BankAccount(id: 12345, amount: 999)
    }
}

class BiometricsService {

    enum Access {
        case authorized
        case denied
    }

    static func checkAccess() -> Access {
        /// The service uses Face ID, Touch ID or a plain old password to
        /// determine whether the current user is an owner of the device.

        /// Let's assume that in our example a user forgot a password :)
        return .denied
    }
}

struct Profile {

    enum Keys: String {
        case firstName
        case lastName
        case email
    }

    var firstName: String?
    var lastName: String?
    var email: String?

    var bankAccount: BankAccount?
}

struct BankAccount {

    var id: Int
    var amount: Double
}

enum ProfileError: LocalizedError {

    case accessDenied

    var errorDescription: String? {
        switch self {
        case .accessDenied:
            return "Access is denied. Please enter a valid password"
        }
    }
}

extension RawRepresentable {

    var raw: Self.RawValue {
        return rawValue
    }
}

extension LocalizedError {

    var localizedSummary: String {
        return errorDescription ?? ""
    }
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
Client: Loading a profile WITHOUT proxy
Client: Basic profile is loaded
Client: Basic profile with a bank account is loaded

Client: Let's load a profile WITH proxy
Client: Basic profile is loaded
Client: Cannot load a profile with a bank account
Client: Error: Access is denied. Please enter a valid password

在 TypeScript 中使用模式

复杂度： ★★☆

流行度： ★☆☆

使用示例： 尽管代理模式在绝大多数 TypeScript 程序中并不常见， 但它在一些特殊情况下仍然非常方便。 当你希望在无需修改客户代码的前提下于已有类的对象上增加额外行为时， 该模式是无可替代的。

识别方法： 代理模式会将所有实际工作委派给一些其他对象。 除非代理是某个服务的子类， 否则每个代理方法最后都应该引用一个服务对象。

概念示例

本例说明了代理设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

index.ts: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
/**
 * The Subject interface declares common operations for both RealSubject and the
 * Proxy. As long as the client works with RealSubject using this interface,
 * you'll be able to pass it a proxy instead of a real subject.
 */
interface Subject {
    request(): void;
}

/**
 * The RealSubject contains some core business logic. Usually, RealSubjects are
 * capable of doing some useful work which may also be very slow or sensitive -
 * e.g. correcting input data. A Proxy can solve these issues without any
 * changes to the RealSubject's code.
 */
class RealSubject implements Subject {
    public request(): void {
        console.log('RealSubject: Handling request.');
    }
}

/**
 * The Proxy has an interface identical to the RealSubject.
 */
class Proxy implements Subject {
    private realSubject: RealSubject;

    /**
     * The Proxy maintains a reference to an object of the RealSubject class. It
     * can be either lazy-loaded or passed to the Proxy by the client.
     */
    constructor(realSubject: RealSubject) {
        this.realSubject = realSubject;
    }

    /**
     * The most common applications of the Proxy pattern are lazy loading,
     * caching, controlling the access, logging, etc. A Proxy can perform one of
     * these things and then, depending on the result, pass the execution to the
     * same method in a linked RealSubject object.
     */
    public request(): void {
        if (this.checkAccess()) {
            this.realSubject.request();
            this.logAccess();
        }
    }

    private checkAccess(): boolean {
        // Some real checks should go here.
        console.log('Proxy: Checking access prior to firing a real request.');

        return true;
    }

    private logAccess(): void {
        console.log('Proxy: Logging the time of request.');
    }
}

/**
 * The client code is supposed to work with all objects (both subjects and
 * proxies) via the Subject interface in order to support both real subjects and
 * proxies. In real life, however, clients mostly work with their real subjects
 * directly. In this case, to implement the pattern more easily, you can extend
 * your proxy from the real subject's class.
 */
function clientCode(subject: Subject) {
    // ...

    subject.request();

    // ...
}

console.log('Client: Executing the client code with a real subject:');
const realSubject = new RealSubject();
clientCode(realSubject);

console.log('');

console.log('Client: Executing the same client code with a proxy:');
const proxy = new Proxy(realSubject);
clientCode(proxy);

Output.txt: 执行结果

1
2
3
4
5
6
7
Client: Executing the client code with a real subject:
RealSubject: Handling request.

Client: Executing the same client code with a proxy:
Proxy: Checking access prior to firing a real request.
RealSubject: Handling request.
Proxy: Logging the time of request.

概念示例

Nginx 这样的 Web 服务器可充当应用程序服务器的代理：

  • 提供了对应用程序服务器的受控访问权限。
  • 可限制速度。
  • 可缓存请求。

server.go: 主体

1
2
3
4
5
package main

type server interface {
    handleRequest(string, string) (int, string)
}

nginx.go: 代理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
package main

type nginx struct {
    application       *application
    maxAllowedRequest int
    rateLimiter       map[string]int
}

func newNginxServer() *nginx {
    return &nginx{
        application:       &application{},
        maxAllowedRequest: 2,
        rateLimiter:       make(map[string]int),
    }
}

func (n *nginx) handleRequest(url, method string) (int, string) {
    allowed := n.checkRateLimiting(url)
    if !allowed {
        return 403, "Not Allowed"
    }
    return n.application.handleRequest(url, method)
}

func (n *nginx) checkRateLimiting(url string) bool {
    if n.rateLimiter[url] == 0 {
        n.rateLimiter[url] = 1
    }
    if n.rateLimiter[url] > n.maxAllowedRequest {
        return false
    }
    n.rateLimiter[url] = n.rateLimiter[url] + 1
    return true
}

application.go: 真实主体

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
package main

type application struct {
}

func (a *application) handleRequest(url, method string) (int, string) {
    if url == "/app/status" && method == "GET" {
        return 200, "Ok"
    }

    if url == "/create/user" && method == "POST" {
        return 201, "User Created"
    }
    return 404, "Not Ok"
}

main.go: 客户端代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
package main

import "fmt"

func main() {

    nginxServer := newNginxServer()
    appStatusURL := "/app/status"
    createuserURL := "/create/user"

    httpCode, body := nginxServer.handleRequest(appStatusURL, "GET")
    fmt.Printf("\nUrl: %s\nHttpCode: %d\nBody: %s\n", appStatusURL, httpCode, body)

    httpCode, body = nginxServer.handleRequest(appStatusURL, "GET")
    fmt.Printf("\nUrl: %s\nHttpCode: %d\nBody: %s\n", appStatusURL, httpCode, body)

    httpCode, body = nginxServer.handleRequest(appStatusURL, "GET")
    fmt.Printf("\nUrl: %s\nHttpCode: %d\nBody: %s\n", appStatusURL, httpCode, body)

    httpCode, body = nginxServer.handleRequest(createuserURL, "POST")
    fmt.Printf("\nUrl: %s\nHttpCode: %d\nBody: %s\n", appStatusURL, httpCode, body)

    httpCode, body = nginxServer.handleRequest(createuserURL, "GET")
    fmt.Printf("\nUrl: %s\nHttpCode: %d\nBody: %s\n", appStatusURL, httpCode, body)
}

output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Url: /app/status
HttpCode: 200
Body: Ok

Url: /app/status
HttpCode: 200
Body: Ok

Url: /app/status
HttpCode: 403
Body: Not Allowed

Url: /app/status
HttpCode: 201
Body: User Created

Url: /app/status
HttpCode: 404
Body: Not Ok

根据： Golang By Example
