行为模式-命令模式

亦称: 动作、事务、Action、Transaction、Command

意图

命令模式是一种行为设计模式, 它可将请求转换为一个包含与请求相关的所有信息的独立对象。 该转换让你能根据不同的请求将方法参数化、 延迟请求执行或将其放入队列中, 且能实现可撤销操作。

问题

假如你正在开发一款新的文字编辑器, 当前的任务是创建一个包含多个按钮的工具栏, 并让每个按钮对应编辑器的不同操作。 你创建了一个非常简洁的 按钮类, 它不仅可用于生成工具栏上的按钮, 还可用于生成各种对话框的通用按钮。

应用中的所有按钮都可以继承相同的类

尽管所有按钮看上去都很相似, 但它们可以完成不同的操作 (打开、 保存、 打印和应用等)。 你会在哪里放置这些按钮的点击处理代码呢? 最简单的解决方案是在使用按钮的每个地方都创建大量的子类。 这些子类中包含按钮点击后必须执行的代码。

大量的按钮子类。 没关系的。

你很快就意识到这种方式有严重缺陷。 首先, 你创建了大量的子类, 当每次修改基类 按钮时, 你都有可能需要修改所有子类的代码。 简单来说, GUI 代码以一种拙劣的方式依赖于业务逻辑中的不稳定代码。你很快就意识到这种方式有严重缺陷。 首先, 你创建了大量的子类, 当每次修改基类 按钮时, 你都有可能需要修改所有子类的代码。 简单来说, GUI 代码以一种拙劣的方式依赖于业务逻辑中的不稳定代码。

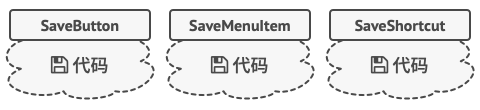

多个类实现同一功能。

还有一个部分最难办。 复制/粘贴文字等操作可能会在多个地方被调用。 例如用户可以点击工具栏上小小的 “复制” 按钮, 或者通过上下文菜单复制一些内容, 又或者直接使用键盘上的 Ctrl+C

我们的程序最初只有工具栏, 因此可以使用按钮子类来实现各种不同操作。 换句话来说, 复制按钮Copy­Button子类包含复制文字的代码是可行的。 在实现了上下文菜单、 快捷方式和其他功能后, 你要么需要将操作代码复制进许多个类中, 要么需要让菜单依赖于按钮, 而后者是更糟糕的选择。

解决方案

优秀的软件设计通常会将关注点进行分离, 而这往往会导致软件的分层。 最常见的例子: 一层负责用户图像界面; 另一层负责业务逻辑。 GUI 层负责在屏幕上渲染美观的图形, 捕获所有输入并显示用户和程序工作的结果。 当需要完成一些重要内容时 (比如计算月球轨道或撰写年度报告), GUI 层则会将工作委派给业务逻辑底层。

这在代码中看上去就像这样: 一个 GUI 对象传递一些参数来调用一个业务逻辑对象。 这个过程通常被描述为一个对象发送请求给另一个对象。

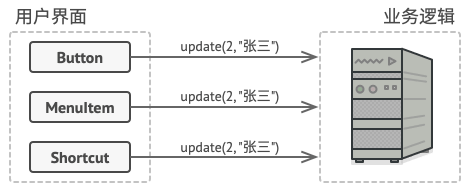

GUI 层可以直接访问业务逻辑层。

命令模式建议 GUI 对象不直接提交这些请求。 你应该将请求的所有细节 (例如调用的对象、 方法名称和参数列表) 抽取出来组成命令类, 该类中仅包含一个用于触发请求的方法。

命令对象负责连接不同的 GUI 和业务逻辑对象。 此后, GUI 对象无需了解业务逻辑对象是否获得了请求, 也无需了解其对请求进行处理的方式。 GUI 对象触发命令即可, 命令对象会自行处理所有细节工作。

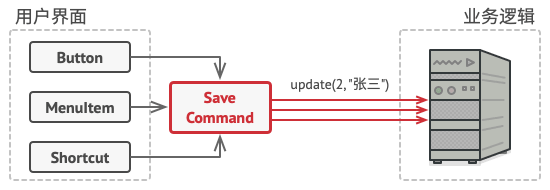

通过命令访问业务逻辑层。

下一步是让所有命令实现相同的接口。 该接口通常只有一个没有任何参数的执行方法, 让你能在不和具体命令类耦合的情况下使用同一请求发送者执行不同命令。 此外还有额外的好处, 现在你能在运行时切换连接至发送者的命令对象, 以此改变发送者的行为。

你可能会注意到遗漏的一块拼图——请求的参数。 GUI 对象可以给业务层对象提供一些参数。 但执行命令方法没有任何参数, 所以我们如何将请求的详情发送给接收者呢? 答案是: 使用数据对命令进行预先配置, 或者让其能够自行获取数据。

GUI 对象将命令委派给命令对象。

让我们回到文本编辑器。 应用命令模式后, 我们不再需要任何按钮子类来实现点击行为。 我们只需在 按钮Button基类中添加一个成员变量来存储对于命令对象的引用, 并在点击后执行该命令即可。

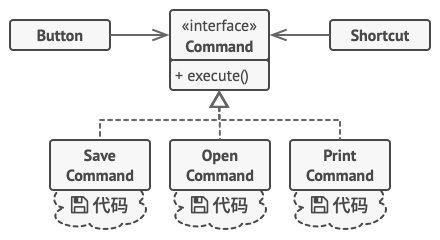

你需要为每个可能的操作实现一系列命令类, 并且根据按钮所需行为将命令和按钮连接起来。

其他菜单、 快捷方式或整个对话框等 GUI 元素都可以通过相同方式来实现。 当用户与 GUI 元素交互时, 与其连接的命令将会被执行。 现在你很可能已经猜到了, 与相同操作相关的元素将会被连接到相同的命令, 从而避免了重复代码。

最后, 命令成为了减少 GUI 和业务逻辑层之间耦合的中间层。 而这仅仅是命令模式所提供的一小部分好处!

真实世界类比

在餐厅里点餐。

在市中心逛了很久的街后, 你找到了一家不错的餐厅, 坐在了临窗的座位上。 一名友善的服务员走近你, 迅速记下你点的食物, 写在一张纸上。 服务员来到厨房, 把订单贴在墙上。 过了一段时间, 厨师拿到了订单, 他根据订单来准备食物。 厨师将做好的食物和订单一起放在托盘上。 服务员看到托盘后对订单进行检查, 确保所有食物都是你要的, 然后将食物放到了你的桌上。

那张纸就是一个命令, 它在厨师开始烹饪前一直位于队列中。 命令中包含与烹饪这些食物相关的所有信息。 厨师能够根据它马上开始烹饪, 而无需跑来直接和你确认订单详情。

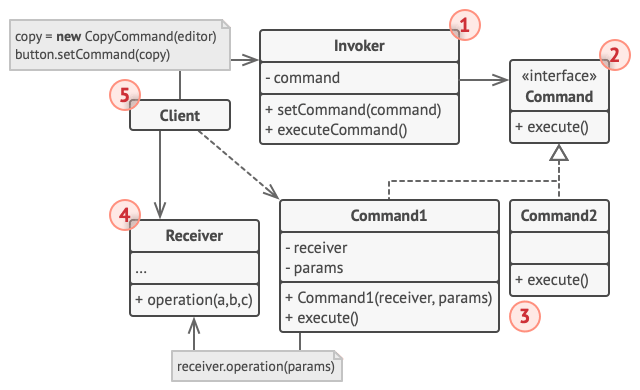

命令模式结构

  1. 发送者 (Sender)——亦称 “触发者 (Invoker)”——类负责对请求进行初始化, 其中必须包含一个成员变量来存储对于命令对象的引用。 发送者触发命令, 而不向接收者直接发送请求。 注意, 发送者并不负责创建命令对象: 它通常会通过构造函数从客户端处获得预先生成的命令。

  2. 命令 (Command) 接口通常仅声明一个执行命令的方法。

  3. 具体命令 (Concrete Commands) 会实现各种类型的请求。 具体命令自身并不完成工作, 而是会将调用委派给一个业务逻辑对象。 但为了简化代码, 这些类可以进行合并。

    接收对象执行方法所需的参数可以声明为具体命令的成员变量。 你可以将命令对象设为不可变, 仅允许通过构造函数对这些成员变量进行初始化。

  4. 接收者 (Receiver) 类包含部分业务逻辑。 几乎任何对象都可以作为接收者。 绝大部分命令只处理如何将请求传递到接收者的细节, 接收者自己会完成实际的工作。

  5. 客户端 (Client) 会创建并配置具体命令对象。 客户端必须将包括接收者实体在内的所有请求参数传递给命令的构造函数。 此后, 生成的命令就可以与一个或多个发送者相关联了。

伪代码

在本例中, 命令模式会记录已执行操作的历史记录, 以在需要时撤销操作。

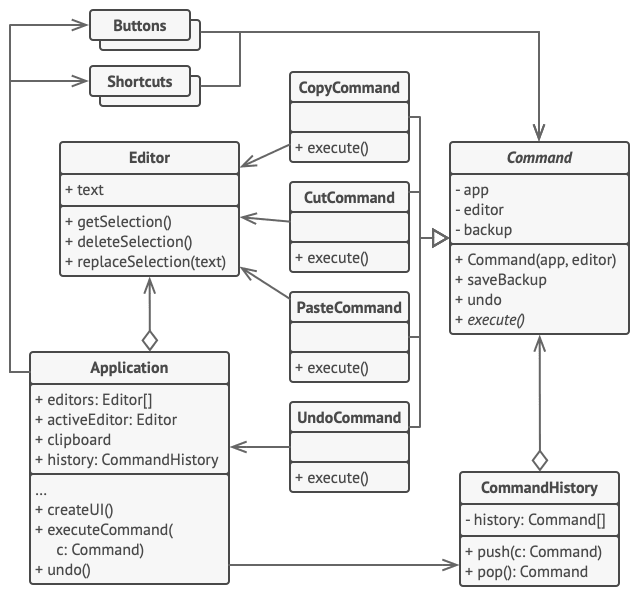

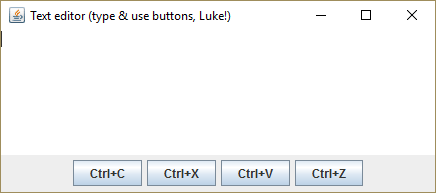

文本编辑器中的可撤销操作。

有些命令会改变编辑器的状态 (例如剪切和粘贴), 它们可在执行相关操作前对编辑器的状态进行备份。 命令执行后会和当前点备份的编辑器状态一起被放入命令历史 (命令对象栈)。 此后, 如果用户需要进行回滚操作, 程序可从历史记录中取出最近的命令, 读取相应的编辑器状态备份, 然后进行恢复。

客户端代码 (GUI 元素和命令历史等) 没有和具体命令类相耦合, 因为它通过命令接口来使用命令。 这使得你能在无需修改已有代码的情况下在程序中增加新的命令。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
// 命令基类会为所有具体命令定义通用接口。
abstract class Command is
protected field app: Application
protected field editor: Editor
protected field backup: text

constructor Command(app: Application, editor: Editor) is
this.app = app
this.editor = editor

// 备份编辑器状态。
method saveBackup() is
backup = editor.text

// 恢复编辑器状态。
method undo() is
editor.text = backup

// 执行方法被声明为抽象以强制所有具体命令提供自己的实现。该方法必须根
// 据命令是否更改编辑器的状态返回 true 或 false。
abstract method execute()


// 这里是具体命令。
class CopyCommand extends Command is
// 复制命令不会被保存到历史记录中,因为它没有改变编辑器的状态。
method execute() is
app.clipboard = editor.getSelection()
return false

class CutCommand extends Command is
// 剪切命令改变了编辑器的状态,因此它必须被保存到历史记录中。只要方法
// 返回 true,它就会被保存。
method execute() is
saveBackup()
app.clipboard = editor.getSelection()
editor.deleteSelection()
return true

class PasteCommand extends Command is
method execute() is
saveBackup()
editor.replaceSelection(app.clipboard)
return true

// 撤销操作也是一个命令。
class UndoCommand extends Command is
method execute() is
app.undo()
return false


// 全局命令历史记录就是一个堆桟。
class CommandHistory is
private field history: array of Command

// 后进...
method push(c: Command) is
// 将命令压入历史记录数组的末尾。

// ...先出
method pop():Command is
// 从历史记录中取出最近的命令。


// 编辑器类包含实际的文本编辑操作。它会担任接收者的角色:最后所有命令都会
// 将执行工作委派给编辑器的方法。
class Editor is
field text: string

method getSelection() is
// 返回选中的文字。

method deleteSelection() is
// 删除选中的文字。

method replaceSelection(text) is
// 在当前位置插入剪贴板中的内容。

// 应用程序类会设置对象之间的关系。它会担任发送者的角色:当需要完成某些工
// 作时,它会创建并执行一个命令对象。
class Application is
field clipboard: string
field editors: array of Editors
field activeEditor: Editor
field history: CommandHistory

// 将命令分派给 UI 对象的代码可能会是这样的。
method createUI() is
// ...
copy = function() { executeCommand(
new CopyCommand(this, activeEditor)) }
copyButton.setCommand(copy)
shortcuts.onKeyPress("Ctrl+C", copy)

cut = function() { executeCommand(
new CutCommand(this, activeEditor)) }
cutButton.setCommand(cut)
shortcuts.onKeyPress("Ctrl+X", cut)

paste = function() { executeCommand(
new PasteCommand(this, activeEditor)) }
pasteButton.setCommand(paste)
shortcuts.onKeyPress("Ctrl+V", paste)

undo = function() { executeCommand(
new UndoCommand(this, activeEditor)) }
undoButton.setCommand(undo)
shortcuts.onKeyPress("Ctrl+Z", undo)

// 执行一个命令并检查它是否需要被添加到历史记录中。
method executeCommand(command) is
if (command.execute)
history.push(command)

// 从历史记录中取出最近的命令并运行其 undo(撤销)方法。请注意,你并
// 不知晓该命令所属的类。但是我们不需要知晓,因为命令自己知道如何撤销
// 其动作。
method undo() is
command = history.pop()
if (command != null)
command.undo()

命令模式适合应用场景

如果你需要通过操作来参数化对象,可使用命令模式。

命令模式可将特定的方法调用转化为独立对象。 这一改变也带来了许多有趣的应用: 你可以将命令作为方法的参数进行传递、 将命令保存在其他对象中, 或者在运行时切换已连接的命令等。

举个例子: 你正在开发一个 GUI 组件 (例如上下文菜单), 你希望用户能够配置菜单项, 并在点击菜单项时触发操作。

如果你想要将操作放入队列中、操作的执行或者远程执行操作,可使用命令模式。

同其他对象一样, 命令也可以实现序列化 (序列化的意思是转化为字符串), 从而能方便地写入文件或数据库中。 一段时间后, 该字符串可被恢复成为最初的命令对象。 因此, 你可以延迟或计划命令的执行。 但其功能远不止如此! 使用同样的方式, 你还可以将命令放入队列、 记录命令或者通过网络发送命令。

如果你想要实现操作回滚功能,可使用命令模式。

尽管有很多方法可以实现撤销和恢复功能, 但命令模式可能是其中最常用的一种。

为了能够回滚操作, 你需要实现已执行操作的历史记录功能。 命令历史记录是一种包含所有已执行命令对象及其相关程序状态备份的栈结构。

这种方法有两个缺点。 首先, 程序状态的保存功能并不容易实现, 因为部分状态可能是私有的。 你可以使用备忘录模式来在一定程度上解决这个问题。

其次, 备份状态可能会占用大量内存。 因此, 有时你需要借助另一种实现方式: 命令无需恢复原始状态, 而是执行反向操作。 反向操作也有代价: 它可能会很难甚至是无法实现。

实现方式

  1. 声明仅有一个执行方法的命令接口。

  2. 抽取请求并使之成为实现命令接口的具体命令类。 每个类都必须有一组成员变量来保存请求参数和对于实际接收者对象的引用。 所有这些变量的数值都必须通过命令构造函数进行初始化。

  3. 找到担任发送者职责的类。 在这些类中添加保存命令的成员变量。 发送者只能通过命令接口与其命令进行交互。 发送者自身通常并不创建命令对象, 而是通过客户端代码获取。

  4. 修改发送者使其执行命令, 而非直接将请求发送给接收者。

  5. 客户端必须按照以下顺序来初始化对象:

    • 创建接收者。
    • 创建命令, 如有需要可将其关联至接收者。
    • 创建发送者并将其与特定命令关联。

命令模式优缺点

优点

  • 单一职责原则。 你可以解耦触发和执行操作的类。
  • 开闭原则。 你可以在不修改已有客户端代码的情况下在程序中创建新的命令。
  • 你可以实现撤销和恢复功能。
  • 你可以实现操作的延迟执行。
  • 你可以将一组简单命令组合成一个复杂命令。

缺点

  • 代码可能会变得更加复杂, 因为你在发送者和接收者之间增加了一个全新的层次。

与其他模式的关系

  • 责任链模式命令模式中介者模式观察者模式用于处理请求发送者和接收者之间的不同连接方式:

    • 责任链按照顺序将请求动态传递给一系列的潜在接收者, 直至其中一名接收者对请求进行处理。
    • 命令在发送者和请求者之间建立单向连接。
    • 中介者清除了发送者和请求者之间的直接连接, 强制它们通过一个中介对象进行间接沟通。
    • 观察者允许接收者动态地订阅或取消接收请求。
  • 责任链的管理者可使用命令模式实现。 在这种情况下, 你可以对由请求代表的同一个上下文对象执行许多不同的操作。

    还有另外一种实现方式, 那就是请求自身就是一个命令对象。 在这种情况下, 你可以对由一系列不同上下文连接而成的链执行相同的操作。

  • 你可以同时使用命令备忘录模式来实现 “撤销”。 在这种情况下, 命令用于对目标对象执行各种不同的操作, 备忘录用来保存一条命令执行前该对象的状态。

  • 命令策略模式看上去很像, 因为两者都能通过某些行为来参数化对象。 但是, 它们的意图有非常大的不同。

    • 你可以使用命令来将任何操作转换为对象。 操作的参数将成为对象的成员变量。 你可以通过转换来延迟操作的执行、 将操作放入队列、 保存历史命令或者向远程服务发送命令等。
    • 另一方面, 策略通常可用于描述完成某件事的不同方式, 让你能够在同一个上下文类中切换算法。
  • 原型模式可用于保存命令的历史记录。

  • 你可以将访问者模式视为命令模式的加强版本, 其对象可对不同类的多种对象执行操作。

代码示例

命令是一种行为设计模式, 它可将请求或简单操作转换为一个对象。

此类转换让你能够延迟进行或远程执行请求, 还可将其放入队列中。

在 C# 中使用模式

复杂度: ★☆☆

流行度: ★★★

使用示例: 命令模式在 C# 代码中很常见。 大部分情况下, 它被用于代替包含行为的参数化 UI 元素的回调函数, 此外还被用于对任务进行排序和记录操作历史记录等。

识别方法: 命令模式可以通过抽象或接口类型 (发送者) 中的行为方法来识别, 该类型调用另一个不同的抽象或接口类型 (接收者) 实现中的方法, 该实现则是在创建时由命令模式的实现封装。 命令类通常仅限于一些特殊行为。

概念示例

本例说明了命令设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

Program.cs: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
using System;

namespace RefactoringGuru.DesignPatterns.Command.Conceptual
{
// The Command interface declares a method for executing a command.
public interface ICommand
{
void Execute();
}

// Some commands can implement simple operations on their own.
class SimpleCommand : ICommand
{
private string _payload = string.Empty;

public SimpleCommand(string payload)
{
this._payload = payload;
}

public void Execute()
{
Console.WriteLine($"SimpleCommand: See, I can do simple things like printing ({this._payload})");
}
}

// However, some commands can delegate more complex operations to other
// objects, called "receivers."
class ComplexCommand : ICommand
{
private Receiver _receiver;

// Context data, required for launching the receiver's methods.
private string _a;

private string _b;

// Complex commands can accept one or several receiver objects along
// with any context data via the constructor.
public ComplexCommand(Receiver receiver, string a, string b)
{
this._receiver = receiver;
this._a = a;
this._b = b;
}

// Commands can delegate to any methods of a receiver.
public void Execute()
{
Console.WriteLine("ComplexCommand: Complex stuff should be done by a receiver object.");
this._receiver.DoSomething(this._a);
this._receiver.DoSomethingElse(this._b);
}
}

// The Receiver classes contain some important business logic. They know how
// to perform all kinds of operations, associated with carrying out a
// request. In fact, any class may serve as a Receiver.
class Receiver
{
public void DoSomething(string a)
{
Console.WriteLine($"Receiver: Working on ({a}.)");
}

public void DoSomethingElse(string b)
{
Console.WriteLine($"Receiver: Also working on ({b}.)");
}
}

// The Invoker is associated with one or several commands. It sends a
// request to the command.
class Invoker
{
private ICommand _onStart;

private ICommand _onFinish;

// Initialize commands.
public void SetOnStart(ICommand command)
{
this._onStart = command;
}

public void SetOnFinish(ICommand command)
{
this._onFinish = command;
}

// The Invoker does not depend on concrete command or receiver classes.
// The Invoker passes a request to a receiver indirectly, by executing a
// command.
public void DoSomethingImportant()
{
Console.WriteLine("Invoker: Does anybody want something done before I begin?");
if (this._onStart is ICommand)
{
this._onStart.Execute();
}

Console.WriteLine("Invoker: ...doing something really important...");

Console.WriteLine("Invoker: Does anybody want something done after I finish?");
if (this._onFinish is ICommand)
{
this._onFinish.Execute();
}
}
}

class Program
{
static void Main(string[] args)
{
// The client code can parameterize an invoker with any commands.
Invoker invoker = new Invoker();
invoker.SetOnStart(new SimpleCommand("Say Hi!"));
Receiver receiver = new Receiver();
invoker.SetOnFinish(new ComplexCommand(receiver, "Send email", "Save report"));

invoker.DoSomethingImportant();
}
}
}

Output.txt: 执行结果

1
2
3
4
5
6
7
Invoker: Does anybody want something done before I begin?
SimpleCommand: See, I can do simple things like printing (Say Hi!)
Invoker: ...doing something really important...
Invoker: Does anybody want something done after I finish?
ComplexCommand: Complex stuff should be done by a receiver object.
Receiver: Working on (Send email.)
Receiver: Also working on (Save report.)

在 C++ 中使用模式

复杂度: ★☆☆

流行度: ★★★

使用示例: 命令模式在 C++ 代码中很常见。 大部分情况下, 它被用于代替包含行为的参数化 UI 元素的回调函数, 此外还被用于对任务进行排序和记录操作历史记录等。

识别方法: 命令模式可以通过抽象或接口类型 (发送者) 中的行为方法来识别, 该类型调用另一个不同的抽象或接口类型 (接收者) 实现中的方法, 该实现则是在创建时由命令模式的实现封装。 命令类通常仅限于一些特殊行为。

概念示例

本例说明了命令设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

main.cc: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
/**
* The Command interface declares a method for executing a command.
*/
class Command {
public:
virtual ~Command() {
}
virtual void Execute() const = 0;
};
/**
* Some commands can implement simple operations on their own.
*/
class SimpleCommand : public Command {
private:
std::string pay_load_;

public:
explicit SimpleCommand(std::string pay_load) : pay_load_(pay_load) {
}
void Execute() const override {
std::cout << "SimpleCommand: See, I can do simple things like printing (" << this->pay_load_ << ")\n";
}
};

/**
* The Receiver classes contain some important business logic. They know how to
* perform all kinds of operations, associated with carrying out a request. In
* fact, any class may serve as a Receiver.
*/
class Receiver {
public:
void DoSomething(const std::string &a) {
std::cout << "Receiver: Working on (" << a << ".)\n";
}
void DoSomethingElse(const std::string &b) {
std::cout << "Receiver: Also working on (" << b << ".)\n";
}
};

/**
* However, some commands can delegate more complex operations to other objects,
* called "receivers."
*/
class ComplexCommand : public Command {
/**
* @var Receiver
*/
private:
Receiver *receiver_;
/**
* Context data, required for launching the receiver's methods.
*/
std::string a_;
std::string b_;
/**
* Complex commands can accept one or several receiver objects along with any
* context data via the constructor.
*/
public:
ComplexCommand(Receiver *receiver, std::string a, std::string b) : receiver_(receiver), a_(a), b_(b) {
}
/**
* Commands can delegate to any methods of a receiver.
*/
void Execute() const override {
std::cout << "ComplexCommand: Complex stuff should be done by a receiver object.\n";
this->receiver_->DoSomething(this->a_);
this->receiver_->DoSomethingElse(this->b_);
}
};

/**
* The Invoker is associated with one or several commands. It sends a request to
* the command.
*/
class Invoker {
/**
* @var Command
*/
private:
Command *on_start_;
/**
* @var Command
*/
Command *on_finish_;
/**
* Initialize commands.
*/
public:
~Invoker() {
delete on_start_;
delete on_finish_;
}

void SetOnStart(Command *command) {
this->on_start_ = command;
}
void SetOnFinish(Command *command) {
this->on_finish_ = command;
}
/**
* The Invoker does not depend on concrete command or receiver classes. The
* Invoker passes a request to a receiver indirectly, by executing a command.
*/
void DoSomethingImportant() {
std::cout << "Invoker: Does anybody want something done before I begin?\n";
if (this->on_start_) {
this->on_start_->Execute();
}
std::cout << "Invoker: ...doing something really important...\n";
std::cout << "Invoker: Does anybody want something done after I finish?\n";
if (this->on_finish_) {
this->on_finish_->Execute();
}
}
};
/**
* The client code can parameterize an invoker with any commands.
*/

int main() {
Invoker *invoker = new Invoker;
invoker->SetOnStart(new SimpleCommand("Say Hi!"));
Receiver *receiver = new Receiver;
invoker->SetOnFinish(new ComplexCommand(receiver, "Send email", "Save report"));
invoker->DoSomethingImportant();

delete invoker;
delete receiver;

return 0;
}

Output.txt: 执行结果

1
2
3
4
5
6
7
Invoker: Does anybody want something done before I begin?
SimpleCommand: See, I can do simple things like printing (Say Hi!)
Invoker: ...doing something really important...
Invoker: Does anybody want something done after I finish?
ComplexCommand: Complex stuff should be done by a receiver object.
Receiver: Working on (Send email.)
Receiver: Also working on (Save report.)

在 Java 中使用模式

复杂度: ★☆☆

流行度: ★★★

使用示例: 命令模式在 Java 代码中很常见。 大部分情况下, 它被用于代替包含行为的参数化 UI 元素的回调函数, 此外还被用于对任务进行排序和记录操作历史记录等。

以下是在核心 Java 程序库中的一些示例:

识别方法: 命令模式可以通过抽象或接口类型 (发送者) 中的行为方法来识别, 该类型调用另一个不同的抽象或接口类型 (接收者) 实现中的方法, 该实现则是在创建时由命令模式的实现封装。 命令类通常仅限于一些特殊行为。

文字编辑器和撤销

本例中的文字编辑器在每次用户与其互动时, 都会创建一个新的命令对象。 命令执行其行为后会被压入历史堆栈。

现在, 当程序执行撤销操作时, 它就需要从历史记录中取出最近执行的命令, 然后执行反向操作或者恢复由该命令保存的编辑器历史状态。

commands

commands/Command.java: 抽象基础命令

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
package refactoring_guru.command.example.commands;

import refactoring_guru.command.example.editor.Editor;

public abstract class Command {
public Editor editor;
private String backup;

Command(Editor editor) {
this.editor = editor;
}

void backup() {
backup = editor.textField.getText();
}

public void undo() {
editor.textField.setText(backup);
}

public abstract boolean execute();
}

commands/CopyCommand.java: 将所选文字复制到剪贴板

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
package refactoring_guru.command.example.commands;

import refactoring_guru.command.example.editor.Editor;

public class CopyCommand extends Command {

public CopyCommand(Editor editor) {
super(editor);
}

@Override
public boolean execute() {
editor.clipboard = editor.textField.getSelectedText();
return false;
}
}

commands/PasteCommand.java: 从剪贴板粘贴文字

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
package refactoring_guru.command.example.commands;

import refactoring_guru.command.example.editor.Editor;

public class PasteCommand extends Command {

public PasteCommand(Editor editor) {
super(editor);
}

@Override
public boolean execute() {
if (editor.clipboard == null || editor.clipboard.isEmpty()) return false;

backup();
editor.textField.insert(editor.clipboard, editor.textField.getCaretPosition());
return true;
}
}

commands/CutCommand.java: 将文字剪切到剪贴板

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
package refactoring_guru.command.example.commands;

import refactoring_guru.command.example.editor.Editor;

public class CutCommand extends Command {

public CutCommand(Editor editor) {
super(editor);
}

@Override
public boolean execute() {
if (editor.textField.getSelectedText().isEmpty()) return false;

backup();
String source = editor.textField.getText();
editor.clipboard = editor.textField.getSelectedText();
editor.textField.setText(cutString(source));
return true;
}

private String cutString(String source) {
String start = source.substring(0, editor.textField.getSelectionStart());
String end = source.substring(editor.textField.getSelectionEnd());
return start + end;
}
}

commands/CommandHistory.java: 命令历史

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
package refactoring_guru.command.example.commands;

import java.util.Stack;

public class CommandHistory {
private Stack<Command> history = new Stack<>();

public void push(Command c) {
history.push(c);
}

public Command pop() {
return history.pop();
}

public boolean isEmpty() { return history.isEmpty(); }
}

editor

editor/Editor.java: 文字编辑器的 GUI

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
package refactoring_guru.command.example.editor;

import refactoring_guru.command.example.commands.*;

import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;

public class Editor {
public JTextArea textField;
public String clipboard;
private CommandHistory history = new CommandHistory();

public void init() {
JFrame frame = new JFrame("Text editor (type & use buttons, Luke!)");
JPanel content = new JPanel();
frame.setContentPane(content);
frame.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
content.setLayout(new BoxLayout(content, BoxLayout.Y_AXIS));
textField = new JTextArea();
textField.setLineWrap(true);
content.add(textField);
JPanel buttons = new JPanel(new FlowLayout(FlowLayout.CENTER));
JButton ctrlC = new JButton("Ctrl+C");
JButton ctrlX = new JButton("Ctrl+X");
JButton ctrlV = new JButton("Ctrl+V");
JButton ctrlZ = new JButton("Ctrl+Z");
Editor editor = this;
ctrlC.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
executeCommand(new CopyCommand(editor));
}
});
ctrlX.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
executeCommand(new CutCommand(editor));
}
});
ctrlV.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
executeCommand(new PasteCommand(editor));
}
});
ctrlZ.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
undo();
}
});
buttons.add(ctrlC);
buttons.add(ctrlX);
buttons.add(ctrlV);
buttons.add(ctrlZ);
content.add(buttons);
frame.setSize(450, 200);
frame.setLocationRelativeTo(null);
frame.setVisible(true);
}

private void executeCommand(Command command) {
if (command.execute()) {
history.push(command);
}
}

private void undo() {
if (history.isEmpty()) return;

Command command = history.pop();
if (command != null) {
command.undo();
}
}
}

Demo.java: 客户端代码

1
2
3
4
5
6
7
8
9
10
package refactoring_guru.command.example;

import refactoring_guru.command.example.editor.Editor;

public class Demo {
public static void main(String[] args) {
Editor editor = new Editor();
editor.init();
}
}

OutputDemo.png: 执行结果

在 PHP 中使用模式

复杂度: ★☆☆

流行度: ★★★

使用示例: 命令模式在 Java 代码中很常见。 它被用于对任务进行排序、 记录任务执行历史以及执行 “撤销” 操作。

识别方法: 命令模式可以通过抽象或接口类型 (发送者) 中的行为方法来识别, 该类型调用另一个不同的抽象或接口类型 (接收者) 实现中的方法, 该实现则是在创建时由命令模式的实现封装。 命令类通常仅限于一些特殊行为。

概念示例

本例说明了命令设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

了解该模式的结构后, 你可以更容易地理解下面基于真实世界的 PHP 应用案例。

index.php: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
<?php

namespace RefactoringGuru\Command\Conceptual;

/**
* The Command interface declares a method for executing a command.
*/
interface Command
{
public function execute(): void;
}

/**
* Some commands can implement simple operations on their own.
*/
class SimpleCommand implements Command
{
private $payload;

public function __construct(string $payload)
{
$this->payload = $payload;
}

public function execute(): void
{
echo "SimpleCommand: See, I can do simple things like printing (" . $this->payload . ")\n";
}
}

/**
* However, some commands can delegate more complex operations to other objects,
* called "receivers."
*/
class ComplexCommand implements Command
{
/**
* @var Receiver
*/
private $receiver;

/**
* Context data, required for launching the receiver's methods.
*/
private $a;

private $b;

/**
* Complex commands can accept one or several receiver objects along with
* any context data via the constructor.
*/
public function __construct(Receiver $receiver, string $a, string $b)
{
$this->receiver = $receiver;
$this->a = $a;
$this->b = $b;
}

/**
* Commands can delegate to any methods of a receiver.
*/
public function execute(): void
{
echo "ComplexCommand: Complex stuff should be done by a receiver object.\n";
$this->receiver->doSomething($this->a);
$this->receiver->doSomethingElse($this->b);
}
}

/**
* The Receiver classes contain some important business logic. They know how to
* perform all kinds of operations, associated with carrying out a request. In
* fact, any class may serve as a Receiver.
*/
class Receiver
{
public function doSomething(string $a): void
{
echo "Receiver: Working on (" . $a . ".)\n";
}

public function doSomethingElse(string $b): void
{
echo "Receiver: Also working on (" . $b . ".)\n";
}
}

/**
* The Invoker is associated with one or several commands. It sends a request to
* the command.
*/
class Invoker
{
/**
* @var Command
*/
private $onStart;

/**
* @var Command
*/
private $onFinish;

/**
* Initialize commands.
*/
public function setOnStart(Command $command): void
{
$this->onStart = $command;
}

public function setOnFinish(Command $command): void
{
$this->onFinish = $command;
}

/**
* The Invoker does not depend on concrete command or receiver classes. The
* Invoker passes a request to a receiver indirectly, by executing a
* command.
*/
public function doSomethingImportant(): void
{
echo "Invoker: Does anybody want something done before I begin?\n";
if ($this->onStart instanceof Command) {
$this->onStart->execute();
}

echo "Invoker: ...doing something really important...\n";

echo "Invoker: Does anybody want something done after I finish?\n";
if ($this->onFinish instanceof Command) {
$this->onFinish->execute();
}
}
}

/**
* The client code can parameterize an invoker with any commands.
*/
$invoker = new Invoker();
$invoker->setOnStart(new SimpleCommand("Say Hi!"));
$receiver = new Receiver();
$invoker->setOnFinish(new ComplexCommand($receiver, "Send email", "Save report"));

$invoker->doSomethingImportant();

Output.txt: 执行结果

1
2
3
4
5
6
7
Invoker: Does anybody want something done before I begin?
SimpleCommand: See, I can do simple things like printing (Say Hi!)
Invoker: ...doing something really important...
Invoker: Does anybody want something done after I finish?
ComplexCommand: Complex stuff should be done by a receiver object.
Receiver: Working on (Send email.)
Receiver: Also working on (Save report.)

真实世界示例

在本例中, 命令模式被用于对 IMDB 网站的网页抓取操作进行排序, 使它们能依次执行。 队列本身保存在数据库中, 这有助于在脚本运行时保存命令。

index.php: 真实世界示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
<?php

namespace RefactoringGuru\Command\RealWorld;

/**
* The Command interface declares the main execution method as well as several
* helper methods for retrieving a command's metadata.
*/
interface Command
{
public function execute(): void;

public function getId(): int;

public function getStatus(): int;
}

/**
* The base web scraping Command defines the basic downloading infrastructure,
* common to all concrete web scraping commands.
*/
abstract class WebScrapingCommand implements Command
{
public $id;

public $status = 0;

/**
* @var string URL for scraping.
*/
public $url;

public function __construct(string $url)
{
$this->url = $url;
}

public function getId(): int
{
return $this->id;
}

public function getStatus(): int
{
return $this->status;
}

public function getURL(): string
{
return $this->url;
}

/**
* Since the execution methods for all web scraping commands are very
* similar, we can provide a default implementation and let subclasses
* override them if needed.
*
* Psst! An observant reader may spot another behavioral pattern in action
* here.
*/
public function execute(): void
{
$html = $this->download();
$this->parse($html);
$this->complete();
}

public function download(): string
{
$html = file_get_contents($this->getURL());
echo "WebScrapingCommand: Downloaded {$this->url}\n";

return $html;
}

abstract public function parse(string $html): void;

public function complete(): void
{
$this->status = 1;
Queue::get()->completeCommand($this);
}
}

/**
* The Concrete Command for scraping the list of movie genres.
*/
class IMDBGenresScrapingCommand extends WebScrapingCommand
{
public function __construct()
{
$this->url = "https://www.imdb.com/feature/genre/";
}

/**
* Extract all genres and their search URLs from the page:
* https://www.imdb.com/feature/genre/
*/
public function parse($html): void
{
preg_match_all("|href=\"(https://www.imdb.com/search/title\?genres=.*?)\"|", $html, $matches);
echo "IMDBGenresScrapingCommand: Discovered " . count($matches[1]) . " genres.\n";

foreach ($matches[1] as $genre) {
Queue::get()->add(new IMDBGenrePageScrapingCommand($genre));
}
}
}

/**
* The Concrete Command for scraping the list of movies in a specific genre.
*/
class IMDBGenrePageScrapingCommand extends WebScrapingCommand
{
private $page;

public function __construct(string $url, int $page = 1)
{
parent::__construct($url);
$this->page = $page;
}

public function getURL(): string
{
return $this->url . '?page=' . $this->page;
}

/**
* Extract all movies from a page like this:
* https://www.imdb.com/search/title?genres=sci-fi&explore=title_type,genres
*/
public function parse(string $html): void
{
preg_match_all("|href=\"(/title/.*?/)\?ref_=adv_li_tt\"|", $html, $matches);
echo "IMDBGenrePageScrapingCommand: Discovered " . count($matches[1]) . " movies.\n";

foreach ($matches[1] as $moviePath) {
$url = "https://www.imdb.com" . $moviePath;
Queue::get()->add(new IMDBMovieScrapingCommand($url));
}

// Parse the next page URL.
if (preg_match("|Next &#187;</a>|", $html)) {
Queue::get()->add(new IMDBGenrePageScrapingCommand($this->url, $this->page + 1));
}
}
}

/**
* The Concrete Command for scraping the movie details.
*/
class IMDBMovieScrapingCommand extends WebScrapingCommand
{
/**
* Get the movie info from a page like this:
* https://www.imdb.com/title/tt4154756/
*/
public function parse(string $html): void
{
if (preg_match("|<h1 itemprop=\"name\" class=\"\">(.*?)</h1>|", $html, $matches)) {
$title = $matches[1];
}
echo "IMDBMovieScrapingCommand: Parsed movie $title.\n";
}
}

/**
* The Queue class acts as an Invoker. It stacks the command objects and
* executes them one by one. If the script execution is suddenly terminated, the
* queue and all its commands can easily be restored, and you won't need to
* repeat all of the executed commands.
*
* Note that this is a very primitive implementation of the command queue, which
* stores commands in a local SQLite database. There are dozens of robust queue
* solution available for use in real apps.
*/
class Queue
{
private $db;

public function __construct()
{
$this->db = new \SQLite3(__DIR__ . '/commands.sqlite',
SQLITE3_OPEN_CREATE | SQLITE3_OPEN_READWRITE);

$this->db->query('CREATE TABLE IF NOT EXISTS "commands" (
"id" INTEGER PRIMARY KEY AUTO_INCREMENT NOT NULL,
"command" TEXT,
"status" INTEGER
)');
}

public function isEmpty(): bool
{
$query = 'SELECT COUNT("id") FROM "commands" WHERE status = 0';

return $this->db->querySingle($query) === 0;
}

public function add(Command $command): void
{
$query = 'INSERT INTO commands (command, status) VALUES (:command, :status)';
$statement = $this->db->prepare($query);
$statement->bindValue(':command', base64_encode(serialize($command)));
$statement->bindValue(':status', $command->getStatus());
$statement->execute();
}

public function getCommand(): Command
{
$query = 'SELECT * FROM "commands" WHERE "status" = 0 LIMIT 1';
$record = $this->db->querySingle($query, true);
$command = unserialize(base64_decode($record["command"]));
$command->id = $record['id'];

return $command;
}

public function completeCommand(Command $command): void
{
$query = 'UPDATE commands SET status = :status WHERE id = :id';
$statement = $this->db->prepare($query);
$statement->bindValue(':status', $command->getStatus());
$statement->bindValue(':id', $command->getId());
$statement->execute();
}

public function work(): void
{
while (!$this->isEmpty()) {
$command = $this->getCommand();
$command->execute();
}
}

/**
* For our convenience, the Queue object is a Singleton.
*/
public static function get(): Queue
{
static $instance;
if (!$instance) {
$instance = new Queue();
}

return $instance;
}
}

/**
* The client code.
*/

$queue = Queue::get();

if ($queue->isEmpty()) {
$queue->add(new IMDBGenresScrapingCommand());
}

$queue->work();

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
WebScrapingCommand: Downloaded https://www.imdb.com/feature/genre/
IMDBGenresScrapingCommand: Discovered 14 genres.
WebScrapingCommand: Downloaded https://www.imdb.com/search/title?genres=comedy
IMDBGenrePageScrapingCommand: Discovered 50 movies.
WebScrapingCommand: Downloaded https://www.imdb.com/search/title?genres=sci-fi
IMDBGenrePageScrapingCommand: Discovered 50 movies.
WebScrapingCommand: Downloaded https://www.imdb.com/search/title?genres=horror
IMDBGenrePageScrapingCommand: Discovered 50 movies.
WebScrapingCommand: Downloaded https://www.imdb.com/search/title?genres=romance
IMDBGenrePageScrapingCommand: Discovered 50 movies.
...

在 Python 中使用模式

复杂度: ★☆☆

流行度: ★★★

使用示例: 命令模式在 Python 代码中很常见。 大部分情况下, 它被用于代替包含行为的参数化 UI 元素的回调函数, 此外还被用于对任务进行排序和记录操作历史记录等。

识别方法: 命令模式可以通过抽象或接口类型 (发送者) 中的行为方法来识别, 该类型调用另一个不同的抽象或接口类型 (接收者) 实现中的方法, 该实现则是在创建时由命令模式的实现封装。 命令类通常仅限于一些特殊行为。

概念示例

本例说明了命令设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

main.py: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
from __future__ import annotations
from abc import ABC, abstractmethod


class Command(ABC):
"""
The Command interface declares a method for executing a command.
"""

@abstractmethod
def execute(self) -> None:
pass


class SimpleCommand(Command):
"""
Some commands can implement simple operations on their own.
"""

def __init__(self, payload: str) -> None:
self._payload = payload

def execute(self) -> None:
print(f"SimpleCommand: See, I can do simple things like printing"
f"({self._payload})")


class ComplexCommand(Command):
"""
However, some commands can delegate more complex operations to other
objects, called "receivers."
"""

def __init__(self, receiver: Receiver, a: str, b: str) -> None:
"""
Complex commands can accept one or several receiver objects along with
any context data via the constructor.
"""

self._receiver = receiver
self._a = a
self._b = b

def execute(self) -> None:
"""
Commands can delegate to any methods of a receiver.
"""

print("ComplexCommand: Complex stuff should be done by a receiver object", end="")
self._receiver.do_something(self._a)
self._receiver.do_something_else(self._b)


class Receiver:
"""
The Receiver classes contain some important business logic. They know how to
perform all kinds of operations, associated with carrying out a request. In
fact, any class may serve as a Receiver.
"""

def do_something(self, a: str) -> None:
print(f"\nReceiver: Working on ({a}.)", end="")

def do_something_else(self, b: str) -> None:
print(f"\nReceiver: Also working on ({b}.)", end="")


class Invoker:
"""
The Invoker is associated with one or several commands. It sends a request
to the command.
"""

_on_start = None
_on_finish = None

"""
Initialize commands.
"""

def set_on_start(self, command: Command):
self._on_start = command

def set_on_finish(self, command: Command):
self._on_finish = command

def do_something_important(self) -> None:
"""
The Invoker does not depend on concrete command or receiver classes. The
Invoker passes a request to a receiver indirectly, by executing a
command.
"""

print("Invoker: Does anybody want something done before I begin?")
if isinstance(self._on_start, Command):
self._on_start.execute()

print("Invoker: ...doing something really important...")

print("Invoker: Does anybody want something done after I finish?")
if isinstance(self._on_finish, Command):
self._on_finish.execute()


if __name__ == "__main__":
"""
The client code can parameterize an invoker with any commands.
"""

invoker = Invoker()
invoker.set_on_start(SimpleCommand("Say Hi!"))
receiver = Receiver()
invoker.set_on_finish(ComplexCommand(
receiver, "Send email", "Save report"))

invoker.do_something_important()

Output.txt: 执行结果

1
2
3
4
5
6
7
Invoker: Does anybody want something done before I begin?
SimpleCommand: See, I can do simple things like printing (Say Hi!)
Invoker: ...doing something really important...
Invoker: Does anybody want something done after I finish?
ComplexCommand: Complex stuff should be done by a receiver object
Receiver: Working on (Send email.)
Receiver: Also working on (Save report.)

在 Ruby 中使用模式

复杂度: ★☆☆

流行度: ★★★

使用示例: 命令模式在 Ruby 代码中很常见。 大部分情况下, 它被用于代替包含行为的参数化 UI 元素的回调函数, 此外还被用于对任务进行排序和记录操作历史记录等。

识别方法: 命令模式可以通过抽象或接口类型 (发送者) 中的行为方法来识别, 该类型调用另一个不同的抽象或接口类型 (接收者) 实现中的方法, 该实现则是在创建时由命令模式的实现封装。 命令类通常仅限于一些特殊行为。

概念示例

本例说明了命令设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

main.rb: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
# The Command interface declares a method for executing a command.
class Command
# @abstract
def execute
raise NotImplementedError, "#{self.class} has not implemented method '#{__method__}'"
end
end

# Some commands can implement simple operations on their own.
class SimpleCommand < Command
# @param [String] payload
def initialize(payload)
@payload = payload
end

def execute
puts "SimpleCommand: See, I can do simple things like printing (#{@payload})"
end
end

# However, some commands can delegate more complex operations to other objects,
# called "receivers".
class ComplexCommand < Command
# Complex commands can accept one or several receiver objects along with any
# context data via the constructor.
def initialize(receiver, a, b)
@receiver = receiver
@a = a
@b = b
end

# Commands can delegate to any methods of a receiver.
def execute
print 'ComplexCommand: Complex stuff should be done by a receiver object'
@receiver.do_something(@a)
@receiver.do_something_else(@b)
end
end

# The Receiver classes contain some important business logic. They know how to
# perform all kinds of operations, associated with carrying out a request. In
# fact, any class may serve as a Receiver.
class Receiver
# @param [String] a
def do_something(a)
print "\nReceiver: Working on (#{a}.)"
end

# @param [String] b
def do_something_else(b)
print "\nReceiver: Also working on (#{b}.)"
end
end

# The Invoker is associated with one or several commands. It sends a request to
# the command.
class Invoker
# Initialize commands.

# @param [Command] command
def on_start=(command)
@on_start = command
end

# @param [Command] command
def on_finish=(command)
@on_finish = command
end

# The Invoker does not depend on concrete command or receiver classes. The
# Invoker passes a request to a receiver indirectly, by executing a command.
def do_something_important
puts 'Invoker: Does anybody want something done before I begin?'
@on_start.execute if @on_start.is_a? Command

puts 'Invoker: ...doing something really important...'

puts 'Invoker: Does anybody want something done after I finish?'
@on_finish.execute if @on_finish.is_a? Command
end
end

# The client code can parameterize an invoker with any commands.
invoker = Invoker.new
invoker.on_start = SimpleCommand.new('Say Hi!')
receiver = Receiver.new
invoker.on_finish = ComplexCommand.new(receiver, 'Send email', 'Save report')

invoker.do_something_important

output.txt: 执行结果

1
2
3
4
5
6
7
Invoker: Does anybody want something done before I begin?
SimpleCommand: See, I can do simple things like printing (Say Hi!)
Invoker: ...doing something really important...
Invoker: Does anybody want something done after I finish?
ComplexCommand: Complex stuff should be done by a receiver object
Receiver: Working on (Send email.)
Receiver: Also working on (Save report.)

在 Swift 中使用模式

复杂度: ★☆☆

流行度: ★★★

使用示例: 命令模式在 Swift 代码中很常见。 大部分情况下, 它被用于代替包含行为的参数化 UI 元素的回调函数, 此外还被用于对任务进行排序和记录操作历史记录等。

识别方法: 命令模式可以通过抽象或接口类型 (发送者) 中的行为方法来识别, 该类型调用另一个不同的抽象或接口类型 (接收者) 实现中的方法, 该实现则是在创建时由命令模式的实现封装。 命令类通常仅限于一些特殊行为。

概念示例

本例说明了命令设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

了解该模式的结构后, 你可以更容易地理解下面基于真实世界的 Swift 应用案例。

Example.swift: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
import XCTest

/// The Command interface declares a method for executing a command.
protocol Command {

func execute()
}

/// Some commands can implement simple operations on their own.
class SimpleCommand: Command {

private var payload: String

init(_ payload: String) {
self.payload = payload
}

func execute() {
print("SimpleCommand: See, I can do simple things like printing (" + payload + ")")
}
}

/// However, some commands can delegate more complex operations to other
/// objects, called "receivers."
class ComplexCommand: Command {

private var receiver: Receiver

/// Context data, required for launching the receiver's methods.
private var a: String
private var b: String

/// Complex commands can accept one or several receiver objects along with
/// any context data via the constructor.
init(_ receiver: Receiver, _ a: String, _ b: String) {
self.receiver = receiver
self.a = a
self.b = b
}

/// Commands can delegate to any methods of a receiver.
func execute() {
print("ComplexCommand: Complex stuff should be done by a receiver object.\n")
receiver.doSomething(a)
receiver.doSomethingElse(b)
}
}

/// The Receiver classes contain some important business logic. They know how to
/// perform all kinds of operations, associated with carrying out a request. In
/// fact, any class may serve as a Receiver.
class Receiver {

func doSomething(_ a: String) {
print("Receiver: Working on (" + a + ")\n")
}

func doSomethingElse(_ b: String) {
print("Receiver: Also working on (" + b + ")\n")
}
}

/// The Invoker is associated with one or several commands. It sends a request
/// to the command.
class Invoker {

private var onStart: Command?

private var onFinish: Command?

/// Initialize commands.
func setOnStart(_ command: Command) {
onStart = command
}

func setOnFinish(_ command: Command) {
onFinish = command
}

/// The Invoker does not depend on concrete command or receiver classes. The
/// Invoker passes a request to a receiver indirectly, by executing a
/// command.
func doSomethingImportant() {

print("Invoker: Does anybody want something done before I begin?")

onStart?.execute()

print("Invoker: ...doing something really important...")
print("Invoker: Does anybody want something done after I finish?")

onFinish?.execute()
}
}

/// Let's see how it all comes together.
class CommandConceptual: XCTestCase {

func test() {
/// The client code can parameterize an invoker with any commands.

let invoker = Invoker()
invoker.setOnStart(SimpleCommand("Say Hi!"))

let receiver = Receiver()
invoker.setOnFinish(ComplexCommand(receiver, "Send email", "Save report"))
invoker.doSomethingImportant()
}
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
Invoker: Does anybody want something done before I begin?
SimpleCommand: See, I can do simple things like printing (Say Hi!)
Invoker: ...doing something really important...
Invoker: Does anybody want something done after I finish?
ComplexCommand: Complex stuff should be done by a receiver object.

Receiver: Working on (Send email)

Receiver: Also working on (Save report)

真实世界示例

Example.swift: 真实世界示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
import Foundation
import XCTest


class DelayedOperation: Operation {

private var delay: TimeInterval

init(_ delay: TimeInterval = 0) {
self.delay = delay
}

override var isExecuting : Bool {
get { return _executing }
set {
willChangeValue(forKey: "isExecuting")
_executing = newValue
didChangeValue(forKey: "isExecuting")
}
}
private var _executing : Bool = false

override var isFinished : Bool {
get { return _finished }
set {
willChangeValue(forKey: "isFinished")
_finished = newValue
didChangeValue(forKey: "isFinished")
}
}
private var _finished : Bool = false

override func start() {

guard delay > 0 else {
_start()
return
}

let deadline = DispatchTime.now() + delay
DispatchQueue(label: "").asyncAfter(deadline: deadline) {
self._start()
}
}

private func _start() {

guard !self.isCancelled else {
print("\(self): operation is canceled")
self.isFinished = true
return
}

self.isExecuting = true
self.main()
self.isExecuting = false
self.isFinished = true
}
}

class WindowOperation: DelayedOperation {

override func main() {
print("\(self): Windows are closed via HomeKit.")
}

override var description: String { return "WindowOperation" }
}

class DoorOperation: DelayedOperation {

override func main() {
print("\(self): Doors are closed via HomeKit.")
}

override var description: String { return "DoorOperation" }
}

class TaxiOperation: DelayedOperation {

override func main() {
print("\(self): Taxi is ordered via Uber")
}

override var description: String { return "TaxiOperation" }
}



class CommandRealWorld: XCTestCase {

func testCommandRealWorld() {
prepareTestEnvironment {

let siri = SiriShortcuts.shared

print("User: Hey Siri, I am leaving my home")
siri.perform(.leaveHome)

print("User: Hey Siri, I am leaving my work in 3 minutes")
siri.perform(.leaveWork, delay: 3) /// for simplicity, we use seconds

print("User: Hey Siri, I am still working")
siri.cancel(.leaveWork)
}
}
}

extension CommandRealWorld {

struct ExecutionTime {
static let max: TimeInterval = 5
static let waiting: TimeInterval = 4
}

func prepareTestEnvironment(_ execution: () -> ()) {

/// This method tells Xcode to wait for async operations. Otherwise the
/// main test is done immediately.

let expectation = self.expectation(description: "Expectation for async operations")

let deadline = DispatchTime.now() + ExecutionTime.waiting
DispatchQueue.main.asyncAfter(deadline: deadline) { expectation.fulfill() }

execution()

wait(for: [expectation], timeout: ExecutionTime.max)
}
}

class SiriShortcuts {

static let shared = SiriShortcuts()
private lazy var queue = OperationQueue()

private init() {}

enum Action: String {
case leaveHome
case leaveWork
}

func perform(_ action: Action, delay: TimeInterval = 0) {
print("Siri: performing \(action)-action\n")
switch action {
case .leaveHome:
add(operation: WindowOperation(delay))
add(operation: DoorOperation(delay))
case .leaveWork:
add(operation: TaxiOperation(delay))
}
}

func cancel(_ action: Action) {
print("Siri: canceling \(action)-action\n")
switch action {
case .leaveHome:
cancelOperation(with: WindowOperation.self)
cancelOperation(with: DoorOperation.self)
case .leaveWork:
cancelOperation(with: TaxiOperation.self)
}
}

private func cancelOperation(with operationType: Operation.Type) {
queue.operations.filter { operation in
return type(of: operation) == operationType
}.forEach({ $0.cancel() })
}

private func add(operation: Operation) {
queue.addOperation(operation)
}
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
User: Hey Siri, I am leaving my home
Siri: performing leaveHome-action

User: Hey Siri, I am leaving my work in 3 minutes
Siri: performing leaveWork-action

User: Hey Siri, I am still working
Siri: canceling leaveWork-action

DoorOperation: Doors are closed via HomeKit.
WindowOperation: Windows are closed via HomeKit.
TaxiOperation: operation is canceled

在 TypeScript 中使用模式

复杂度: ★☆☆

流行度: ★★★

使用示例: 命令模式在 TypeScript 代码中很常见。 大部分情况下, 它被用于代替包含行为的参数化 UI 元素的回调函数, 此外还被用于对任务进行排序和记录操作历史记录等。

识别方法: 命令模式可以通过抽象或接口类型 (发送者) 中的行为方法来识别, 该类型调用另一个不同的抽象或接口类型 (接收者) 实现中的方法, 该实现则是在创建时由命令模式的实现封装。 命令类通常仅限于一些特殊行为。

概念示例

本例说明了命令设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

index.ts: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
/**
* The Command interface declares a method for executing a command.
*/
interface Command {
execute(): void;
}

/**
* Some commands can implement simple operations on their own.
*/
class SimpleCommand implements Command {
private payload: string;

constructor(payload: string) {
this.payload = payload;
}

public execute(): void {
console.log(`SimpleCommand: See, I can do simple things like printing (${this.payload})`);
}
}

/**
* However, some commands can delegate more complex operations to other objects,
* called "receivers."
*/
class ComplexCommand implements Command {
private receiver: Receiver;

/**
* Context data, required for launching the receiver's methods.
*/
private a: string;

private b: string;

/**
* Complex commands can accept one or several receiver objects along with
* any context data via the constructor.
*/
constructor(receiver: Receiver, a: string, b: string) {
this.receiver = receiver;
this.a = a;
this.b = b;
}

/**
* Commands can delegate to any methods of a receiver.
*/
public execute(): void {
console.log('ComplexCommand: Complex stuff should be done by a receiver object.');
this.receiver.doSomething(this.a);
this.receiver.doSomethingElse(this.b);
}
}

/**
* The Receiver classes contain some important business logic. They know how to
* perform all kinds of operations, associated with carrying out a request. In
* fact, any class may serve as a Receiver.
*/
class Receiver {
public doSomething(a: string): void {
console.log(`Receiver: Working on (${a}.)`);
}

public doSomethingElse(b: string): void {
console.log(`Receiver: Also working on (${b}.)`);
}
}

/**
* The Invoker is associated with one or several commands. It sends a request to
* the command.
*/
class Invoker {
private onStart: Command;

private onFinish: Command;

/**
* Initialize commands.
*/
public setOnStart(command: Command): void {
this.onStart = command;
}

public setOnFinish(command: Command): void {
this.onFinish = command;
}

/**
* The Invoker does not depend on concrete command or receiver classes. The
* Invoker passes a request to a receiver indirectly, by executing a
* command.
*/
public doSomethingImportant(): void {
console.log('Invoker: Does anybody want something done before I begin?');
if (this.isCommand(this.onStart)) {
this.onStart.execute();
}

console.log('Invoker: ...doing something really important...');

console.log('Invoker: Does anybody want something done after I finish?');
if (this.isCommand(this.onFinish)) {
this.onFinish.execute();
}
}

private isCommand(object): object is Command {
return object.execute !== undefined;
}
}

/**
* The client code can parameterize an invoker with any commands.
*/
const invoker = new Invoker();
invoker.setOnStart(new SimpleCommand('Say Hi!'));
const receiver = new Receiver();
invoker.setOnFinish(new ComplexCommand(receiver, 'Send email', 'Save report'));

invoker.doSomethingImportant();

Output.txt: 执行结果

1
2
3
4
5
6
7
Invoker: Does anybody want something done before I begin?
SimpleCommand: See, I can do simple things like printing (Say Hi!)
Invoker: ...doing something really important...
Invoker: Does anybody want something done after I finish?
ComplexCommand: Complex stuff should be done by a receiver object.
Receiver: Working on (Send email.)
Receiver: Also working on (Save report.)

概念示例

下面我们通过电视机的例子来了解命令模式。 你可通过一下方式打开电视机:

  • 按下遥控器上的 ON 开关;
  • 按下电视机上的 ON 开关。

我们可以从实现 ON 命令对象并以电视机作为接收者入手。 当在此命令上调用 execute执行方法时, 方法会调用 TV.on打开电视函数。 最后的工作是定义请求者: 这里实际上有两个请求者: 遥控器和电视机。 两者都将嵌入 ON 命令对象。

注意我们是如何将相同请求封装进多个请求者的。 我们也可以采用相同的方式来处理其他命令。 创建独立命令对象的优势在于可将 UI 逻辑与底层业务逻辑解耦。 这样就无需为每个请求者开发不同的处理者了。 命令对象中包含执行所需的全部信息, 所以也可用于延迟执行。

button.go: 请求者

1
2
3
4
5
6
7
8
9
package main

type button struct {
command command
}

func (b *button) press() {
b.command.execute()
}

command.go: 命令接口

1
2
3
4
5
package main

type command interface {
execute()
}

onCommand.go: 具体接口

1
2
3
4
5
6
7
8
9
package main

type onCommand struct {
device device
}

func (c *onCommand) execute() {
c.device.on()
}

offCommand.go: 具体接口

1
2
3
4
5
6
7
8
9
package main

type offCommand struct {
device device
}

func (c *offCommand) execute() {
c.device.off()
}

device.go: 接收者接口

1
2
3
4
5
6
package main

type device interface {
on()
off()
}

tv.go: 具体接收者

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
package main

import "fmt"

type tv struct {
isRunning bool
}

func (t *tv) on() {
t.isRunning = true
fmt.Println("Turning tv on")
}

func (t *tv) off() {
t.isRunning = false
fmt.Println("Turning tv off")
}

main.go: 客户端代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
package main

func main() {
tv := &tv{}

onCommand := &onCommand{
device: tv,
}

offCommand := &offCommand{
device: tv,
}

onButton := &button{
command: onCommand,
}
onButton.press()

offButton := &button{
command: offCommand,
}
offButton.press()
}

output.txt: 执行结果

1
2
Turning tv on
Turning tv off

根据: Golang By Example
