Drone+Gitea自动化部署

本使用Vagrant搭建虚拟环境

新建一个虚拟机ip为192.168.56.100

1.安装私有仓库harbor

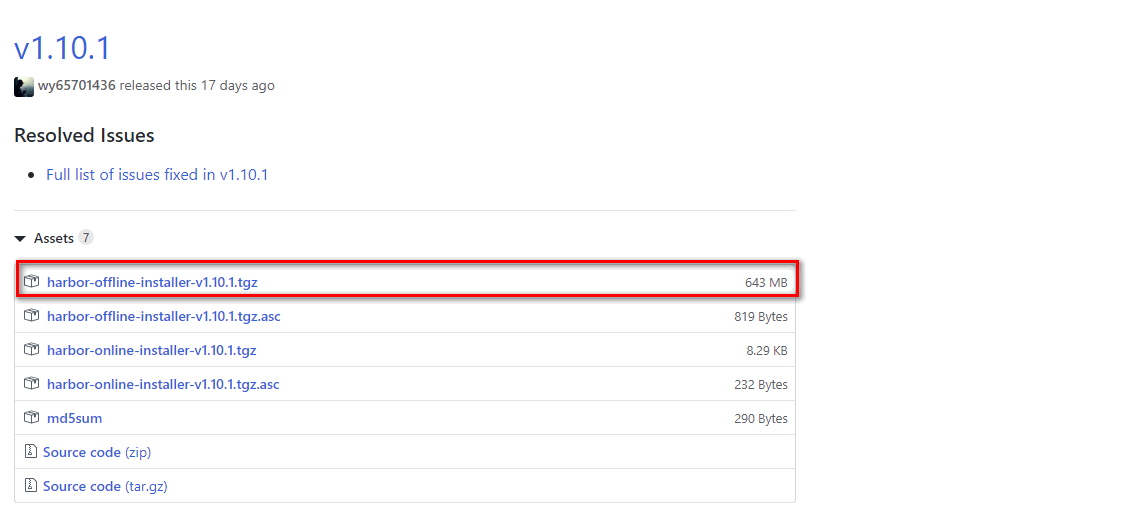

下载地址：https://github.com/goharbor/harbor/releases

1
2
3
4
$ vagrant ssh
#密码vagrant
$ sudo su
$ tar xvf harbor-offline-installer-v1.10.1.tgz

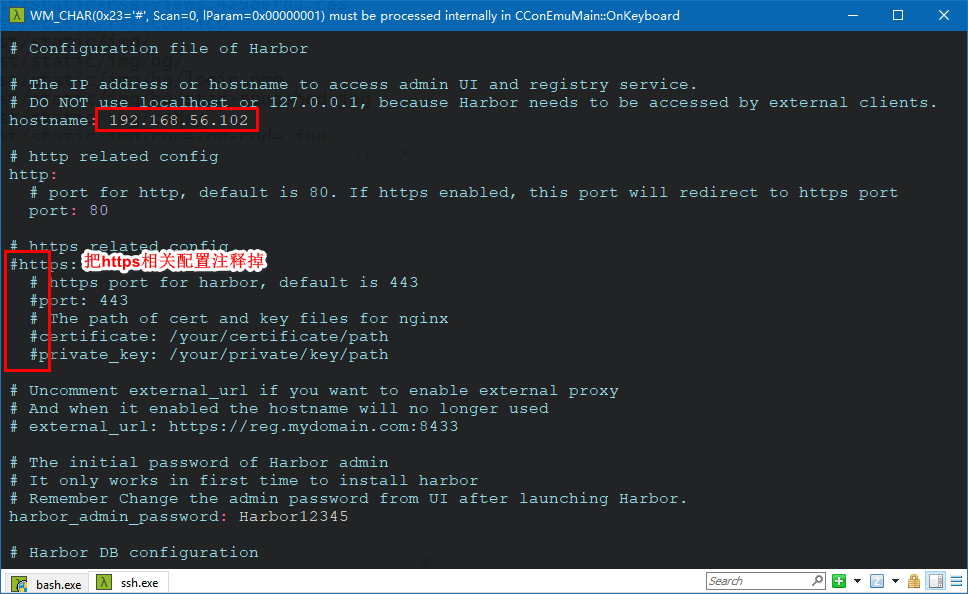

编辑harbor.yml文件

1
2
$ cd ./harbor
$ vi harbor.yml

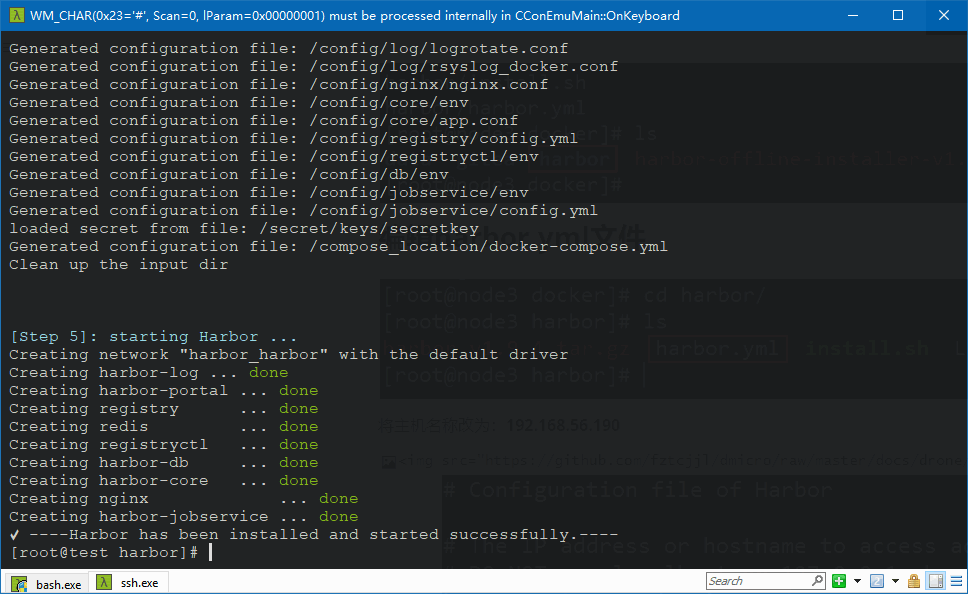

安装执行install.sh

1
$ ./install.sh

编辑 /etc/docker/daemon.json

1
2
3
4
{
  "insecure-registries":["192.168.56.100"],
  "registry-mirrors": ["https://c8x7u9xt.mirror.aliyuncs.com"]
}

重启docker：systemctl restart docker

重启harbor

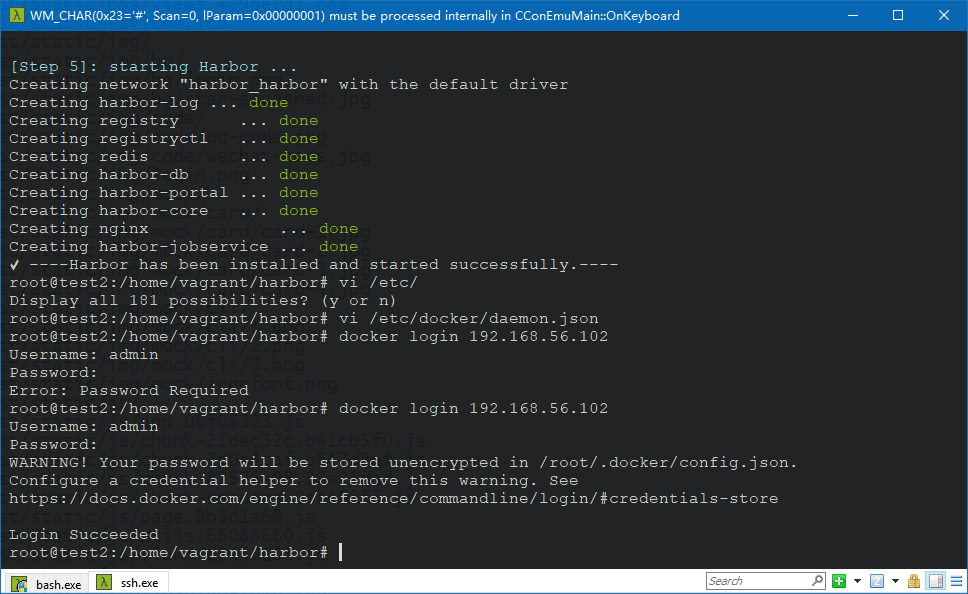

登录

1
2
3
$ docker login 192.168.56.100
#用户名: admin
#密码: Harbor12345

浏览器访问 192.168.56.100

2.安装Gitea

docker-compose.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
version: '3'

services:
  mysql:
    image: mysql:5.7
    container_name: gitea_mysql
    restart: always
    ports:
      - "13306:3306"
    environment:
      - TZ=Asia/Shanghai
      - MYSQL_ROOT_PASSWORD=123456
      - MYSQL_USER=gitea
      - MYSQL_PASSWORD=gitea
      - MYSQL_DATABASE=gitea
      - MYSQL_DATABASE_CHARSET=utf8mb4
      - MYSQL_DATABASE_COLLATION=utf8mb4_general_ci
    volumes:
      - /root/docker/data/gitea/mysql:/var/lib/mysql
  gitea:
    image: gitea/gitea:latest
    container_name: gitea
    restart: always
    ports:
      - "10022:22"
      - "10080:3000"
    environment:
      - TZ=Asia/Shanghai
      - DB_TYPE=mysql
      - DB_HOST=gitea_mysql:3306
      - DB_NAME=gitea
      - DB_USER=gitea
      - DB_PASSWD=gitea
    volumes:
      - /root/docker/data/gitea/gitea:/data
    depends_on:
      - mysql

安装

docker-compose up -d

打开浏览器访问 http://192.168.56.102:10080/install

配置数据库

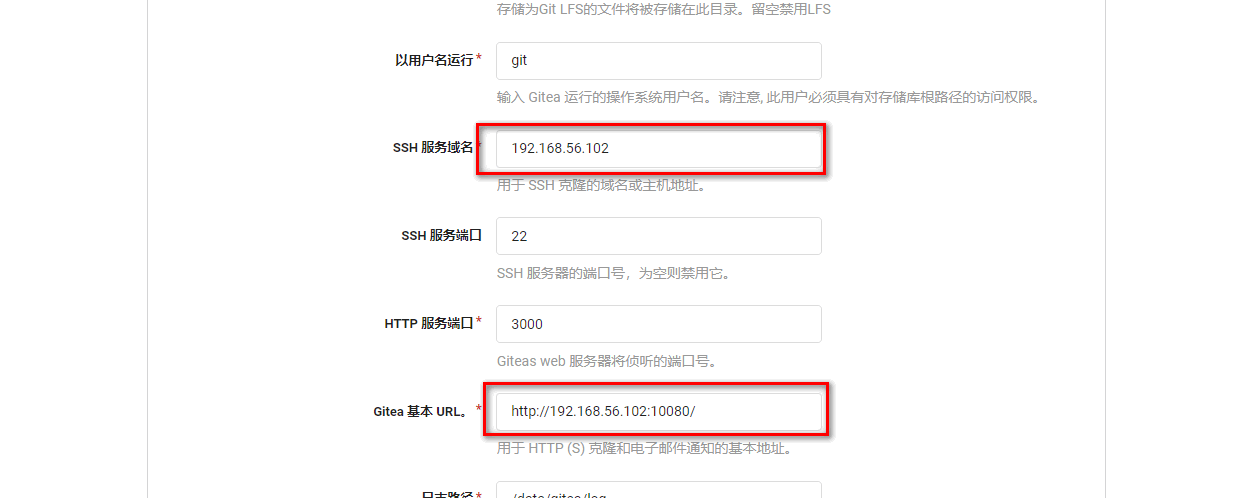

基础配置

设置账号

3.安装Drone

生成secret用于Drone runners和server的通信：

1
2
openssl rand -hex 16
4af3a6ee506d2a06273f3583224983e0

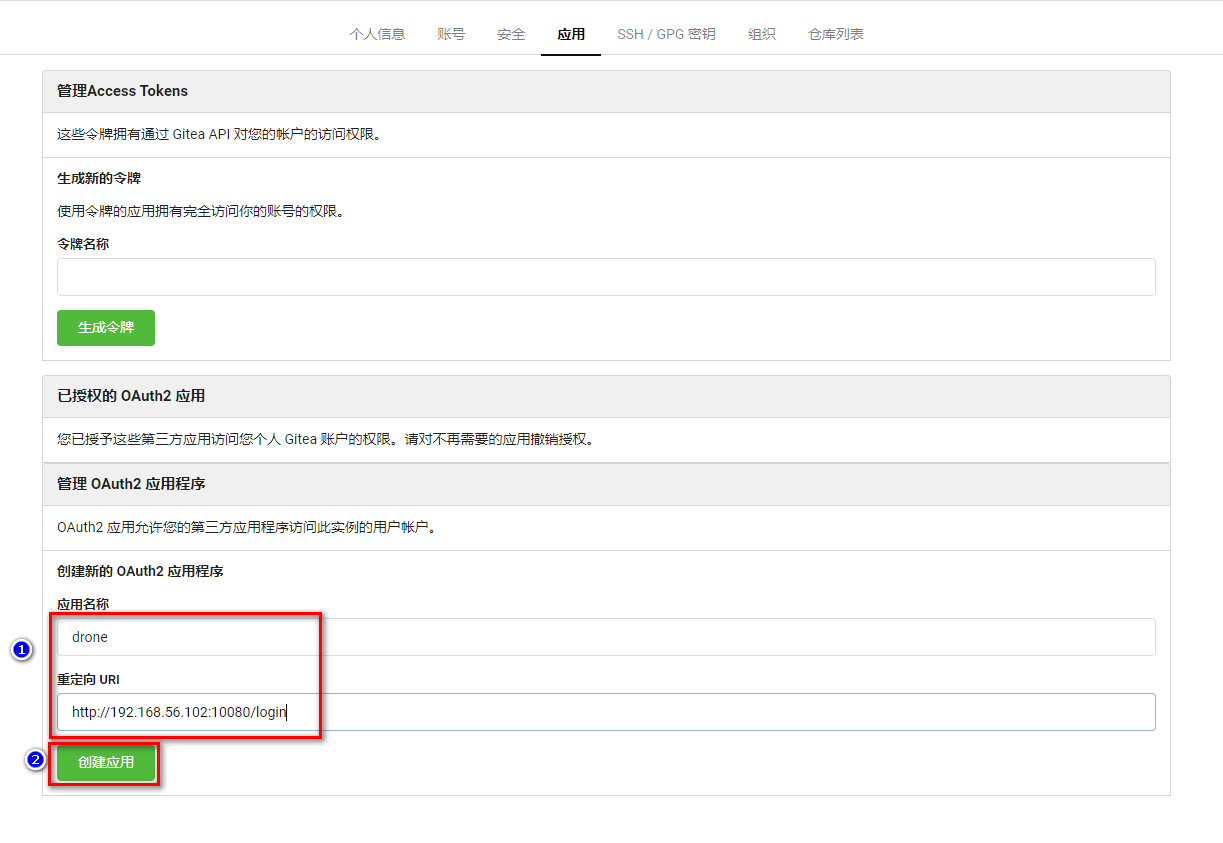

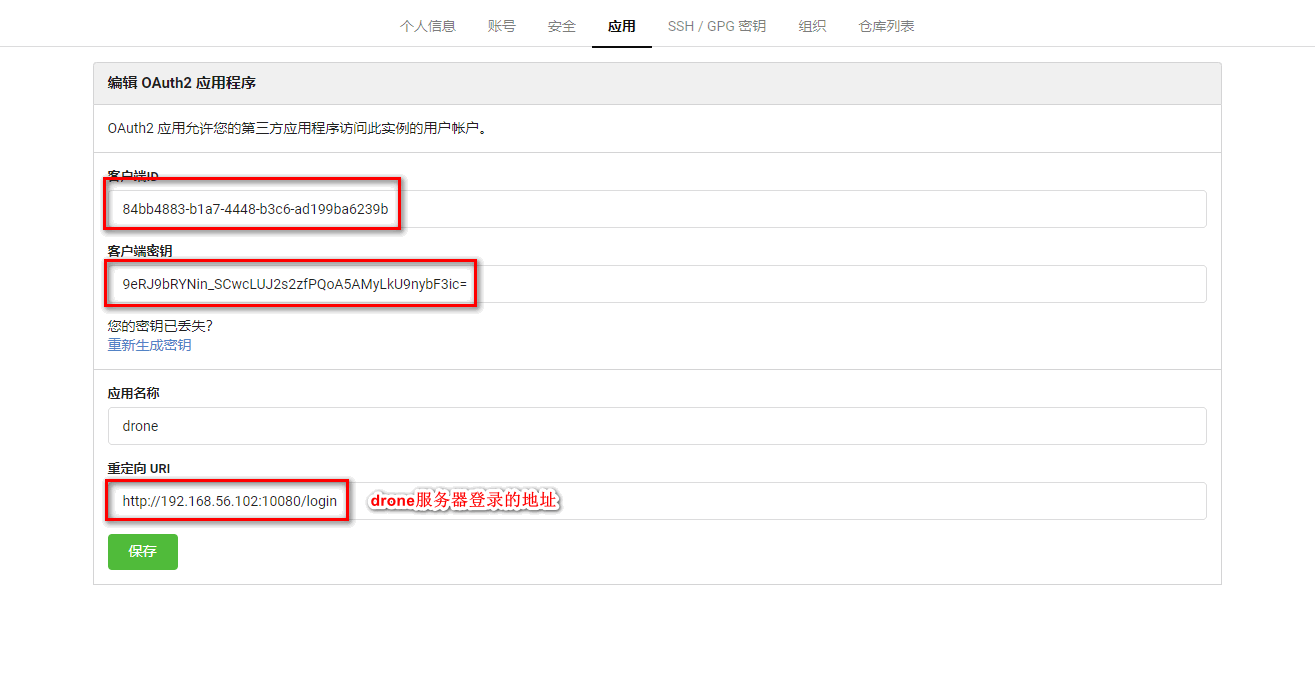

记住客户端ID与客户端密钥，将用于docker-compse.yml中

docker-compose.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
version: '3'

services:
  mysql:
    image: mysql:5.7
    container_name: drone_mysql
    restart: always
    ports:
      - "13307:3306"
    environment:
      - TZ=Asia/Shanghai
      - MYSQL_ROOT_PASSWORD=123456
      - MYSQL_USER=drone
      - MYSQL_PASSWORD=drone
      - MYSQL_DATABASE=drone
      - MYSQL_DATABASE_CHARSET=utf8mb4
      - MYSQL_DATABASE_COLLATION=utf8mb4_general_ci
    volumes:
      - /root/docker/data/drone/mysql:/var/lib/mysql
  drone-server:
    image: drone/drone:latest
    container_name: drone
    restart: always
    ports:
      - 10081:80
      - 8443:443
    environment:
      - TZ=Asia/Shanghai
      - DRONE_AGENTS_ENABLED=true
      - DRONE_GITEA_SERVER=http://192.168.56.100:10080/
      - DRONE_GITEA_CLIENT_ID=e2a50d23-2a78-4bcd-8fa2-b656bb944904
      - DRONE_GITEA_CLIENT_SECRET=VGLOi5YC9XgauXcHbNTpAMpPcUnK6ALdR7hgatCV0ic=
      - DRONE_RPC_SECRET=5d1789d5aa2ee55e6a5b956bec3c328f
      - DRONE_SERVER_HOST=192.168.56.100:10081
      - DRONE_SERVER_PROTO=http
# 		gitea的用户名，否则没有
      - DRONE_USER_CREATE=username:gitea,admin:true
#      - DRONE_LOGS_DEBUG=true
      - DRONE_GIT_USERNAME=gitea
      - DRONE_GIT_PASSWORD=gitea
      - DRONE_GIT_ALWAYS_AUTH=false
      - DRONE_DATABASE_DRIVER=mysql
      - DRONE_DATABASE_DATASOURCE=drone:drone@tcp(drone_mysql:3306)/drone?parseTime=true
    volumes:
      - /root/docker/data/drone/drone:/data
    depends_on:
      - mysql
  drone-agent:
    image: drone/agent:latest
    container_name: runner
    restart: always
    ports:
      - 13000:3000
    environment:
      - TZ=Asia/Shanghai
      - DRONE_RPC_PROTO=http
      - DRONE_RPC_HOST=drone
      - DRONE_RPC_SECRET=5d1789d5aa2ee55e6a5b956bec3c328f
      - DRONE_RUNNER_CAPACITY=2
      - DRONE_RUNNER_NAME=${HOSTNAME}
      - DRONE_DEBUG=true
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
    depends_on:
      - drone-server

注意：DRONE_USER_CREATE=username:gitea,admin:true中username是gitea的账号

执行命令docker-compose up -d

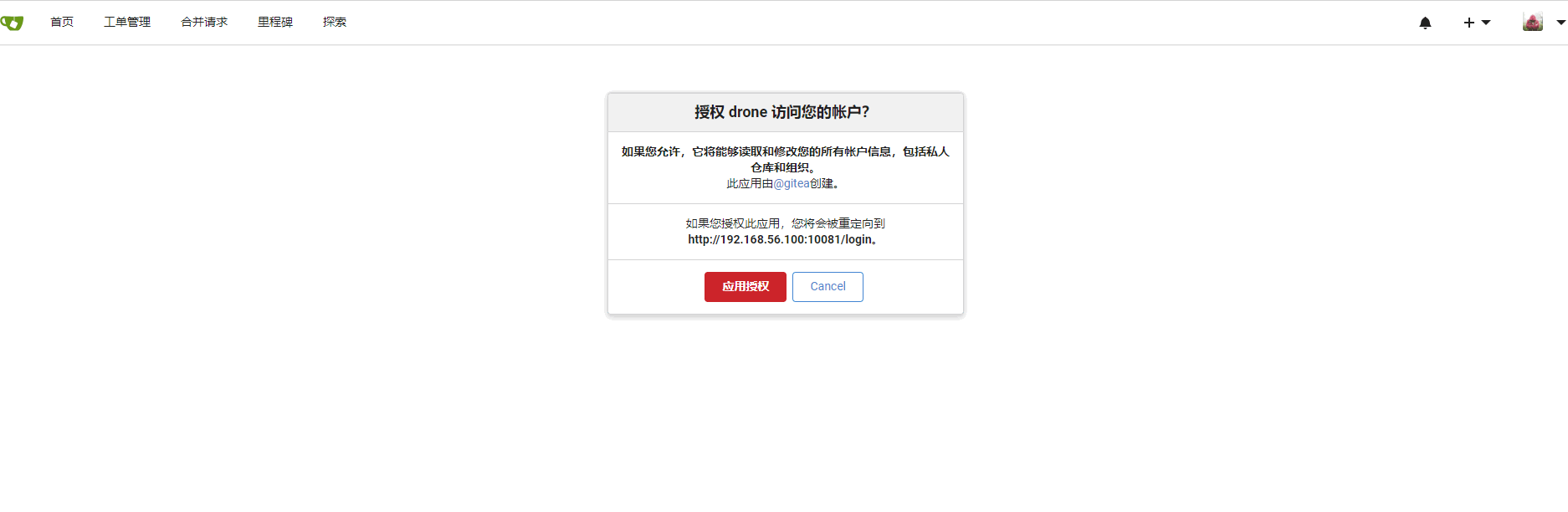

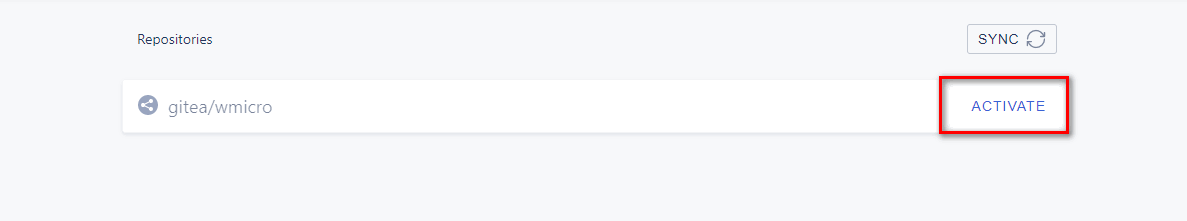

访问192.168.56.100:10081，完成gitea的授权

在harbor新建一个项目wmicro

在项目根目录中编写 .drone.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
kind: pipeline
name: wmicro

steps:
  - name: build micro
    image: golang:1.13.6-alpine3.11
    volumes:
      - name: cache
        path: /go
      - name: gocache
        path: /root/.cache/go-build
    environment:
      CGO_ENABLED: 0
      GO111MODULE: on
      GOPROXY: https://mirrors.aliyun.com/goproxy,direct
    commands:
      - go version
      - go env
      - cd gate/micro
      - go build -o micro
  - name: build dd
    image: golang:1.13.6-alpine3.11
    volumes:
      - name: cache
        path: /go
      - name: gocache
        path: /root/.cache/go-build
    environment:
      CGO_ENABLED: 0
      GO111MODULE: on
      GOPROXY: https://mirrors.aliyun.com/goproxy,direct
    commands:
      - go version
      - go env
      - cd web/dd
      - go build -o dd
  - name: build gid
    image: golang:1.13.6-alpine3.11
    volumes:
      - name: cache
        path: /go
      - name: gocache
        path: /root/.cache/go-build
    environment:
      CGO_ENABLED: 0
      GO111MODULE: on
      GOPROXY: https://mirrors.aliyun.com/goproxy,direct
    commands:
      - go version
      - go env
      - cd srv/gid
      - go build -o gid
  - name: build passport
    image: golang:1.13.6-alpine3.11
    volumes:
      - name: cache
        path: /go
      - name: gocache
        path: /root/.cache/go-build
    environment:
      CGO_ENABLED: 0
      GO111MODULE: on
      GOPROXY: https://mirrors.aliyun.com/goproxy,direct
    commands:
      - go version
      - go env
      - cd srv/passport
      - go build -o passport
  - name: build user
    image: golang:1.13.6-alpine3.11
    volumes:
      - name: cache
        path: /go
      - name: gocache
        path: /root/.cache/go-build
    environment:
      CGO_ENABLED: 0
      GO111MODULE: on
      GOPROXY: https://mirrors.aliyun.com/goproxy,direct
    commands:
      - go version
      - go env
      - cd srv/user
      - go build -o user
  - name: publish micro
    image: plugins/docker:18.09
    settings:
      username: admin
      password: Harbor12345
      context: gate/micro
      dockerfile: gate/micro/Dockerfile
      repo: 192.168.56.100/wmicro/micro
      registry: 192.168.56.100
      tags: latest
      insecure: true
  - name: publish dd
    image: plugins/docker:18.09
    settings:
      username: admin
      password: Harbor12345
      context: web/dd
      dockerfile: web/dd/Dockerfile
      repo: 192.168.56.100/wmicro/dd
      registry: 192.168.56.100
      tags: latest
      insecure: true
  - name: publish gid
    image: plugins/docker:18.09
    settings:
      username: admin
      password: Harbor12345
      context: srv/gid
      dockerfile: srv/gid/Dockerfile
      repo: 192.168.56.100/wmicro/gid
      registry: 192.168.56.100
      tags: latest
      insecure: true
  - name: publish passport
    image: plugins/docker:18.09
    settings:
      username: admin
      password: Harbor12345
      context: srv/passport
      dockerfile: srv/passport/Dockerfile
      repo: 192.168.56.100/wmicro/passport
      registry: 192.168.56.100
      tags: latest
      insecure: true
  - name: publish user
    image: plugins/docker:18.09
    settings:
      username: admin
      password: Harbor12345
      context: srv/user
      dockerfile: srv/user/Dockerfile
      repo: 192.168.56.100/wmicro/user
      registry: 192.168.56.100
      tags: latest
      insecure: true
  - name: deploy micro
    image: appleboy/drone-ssh:1.5.5
    settings:
      host: 192.168.56.100
      username: root
      password: vagrant
      port: 22
      script:
        - docker pull 192.168.56.100/wmicro/micro
        - docker rm -f micro || true
        - docker image prune -f
        - docker run -d --name micro -p 8082:8082 192.168.56.100/wmicro/micro web
  - name: deploy dd
    image: appleboy/drone-ssh:1.5.5
    settings:
      host: 192.168.56.100
      username: root
      password: vagrant
      port: 22
      script:
        - docker pull 192.168.56.100/wmicro/dd
        - docker rm -f dd || true
        - docker image prune -f
        - docker run -d --name dd 192.168.56.100/wmicro/dd
  - name: deploy gid
    image: appleboy/drone-ssh:1.5.5
    settings:
      host: 192.168.56.100
      username: root
      password: vagrant
      port: 22
      script:
        - docker pull 192.168.56.100/wmicro/gid
        - docker rm -f gid || true
        - docker image prune -f
        - docker run -d --name gid 192.168.56.100/wmicro/gid
  - name: deploy passport
    image: appleboy/drone-ssh:1.5.5
    settings:
      host: 192.168.56.100
      username: root
      password: vagrant
      port: 22
      script:
        - docker pull 192.168.56.100/wmicro/passport
        - docker rm -f passport || true
        - docker image prune -f
        - docker run -d --name passport 192.168.56.100/wmicro/passport
  - name: deploy user
    image: appleboy/drone-ssh:1.5.5
    settings:
      host: 192.168.56.100
      username: root
      password: vagrant
      port: 22
      script:
        - docker pull 192.168.56.100/wmicro/user
        - docker rm -f user || true
        - docker image prune -f
        - docker run -d --name user 192.168.56.100/wmicro/user
volumes:
  - name: cache
    host:
      path: /tmp/drone-cache/go
  - name: gocache
    host:
      path: /tmp/drone-cache/go_build
