结构型模式-享元模式

亦称: 缓存、Cache、Flyweight

意图

享元模式是一种结构型设计模式, 它摒弃了在每个对象中保存所有数据的方式, 通过共享多个对象所共有的相同状态, 让你能在有限的内存容量中载入更多对象。

问题

假如你希望在长时间工作后放松一下, 所以开发了一款简单的游戏: 玩家们在地图上移动并相互射击。 你决定实现一个真实的粒子系统, 并将其作为游戏的特色。 大量的子弹、 导弹和爆炸弹片会在整个地图上穿行, 为玩家提供紧张刺激的游戏体验。

开发完成后, 你推送提交了最新版本的程序, 并在编译游戏后将其发送给了一个朋友进行测试。 尽管该游戏在你的电脑上完美运行, 但是你的朋友却无法长时间进行游戏: 游戏总是会在他的电脑上运行几分钟后崩溃。 在研究了几个小时的调试消息记录后, 你发现导致游戏崩溃的原因是内存容量不足。 朋友的设备性能远比不上你的电脑, 因此游戏运行在他的电脑上时很快就会出现问题。

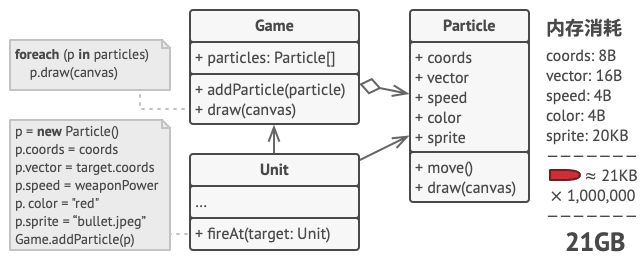

真正的问题与粒子系统有关。 每个粒子 (一颗子弹、 一枚导弹或一块弹片) 都由包含完整数据的独立对象来表示。 当玩家在游戏中鏖战进入高潮后的某一时刻, 游戏将无法在剩余内存中载入新建粒子, 于是程序就崩溃了。

解决方案

仔细观察 粒子Particle类, 你可能会注意到颜色 (color) 和精灵图 (sprite)这两个成员变量所消耗的内存要比其他变量多得多。 更糟糕的是, 对于所有的粒子来说, 这两个成员变量所存储的数据几乎完全一样 (比如所有子弹的颜色和精灵图都一样)。

每个粒子的另一些状态 (坐标、 移动矢量和速度) 则是不同的。 因为这些成员变量的数值会不断变化。 这些数据代表粒子在存续期间不断变化的情景, 但每个粒子的颜色和精灵图则会保持不变。

对象的常量数据通常被称为内在状态, 其位于对象中, 其他对象只能读取但不能修改其数值。 而对象的其他状态常常能被其他对象 “从外部” 改变, 因此被称为外在状态

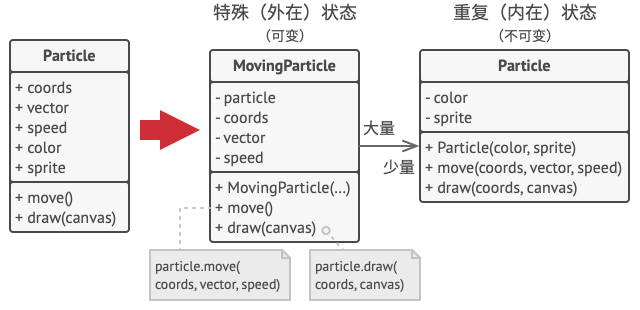

享元模式建议不在对象中存储外在状态, 而是将其传递给依赖于它的一个特殊方法。 程序只在对象中保存内在状态, 以方便在不同情景下重用。 这些对象的区别仅在于其内在状态 (与外在状态相比, 内在状态的变体要少很多), 因此你所需的对象数量会大大削减。

让我们回到游戏中。 假如能从粒子类中抽出外在状态, 那么我们只需三个不同的对象 (子弹、 导弹和弹片) 就能表示游戏中的所有粒子。 你现在很可能已经猜到了, 我们将这样一个仅存储内在状态的对象称为享元。

外在状态存储

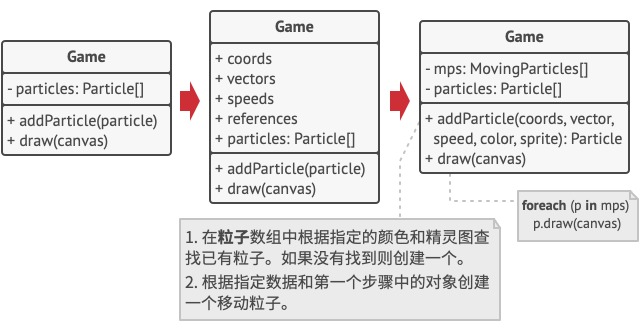

那么外在状态会被移动到什么地方呢? 总得有类来存储它们, 对不对? 在大部分情况中, 它们会被移动到容器对象中, 也就是我们应用享元模式前的聚合对象中。

在我们的例子中, 容器对象就是主要的 游戏Game对象, 其会将所有粒子存储在名为 粒子particles的成员变量中。 为了能将外在状态移动到这个类中, 你需要创建多个数组成员变量来存储每个粒子的坐标、 方向矢量和速度。 除此之外, 你还需要另一个数组来存储指向代表粒子的特定享元的引用。 这些数组必须保持同步, 这样你才能够使用同一索引来获取关于某个粒子的所有数据。

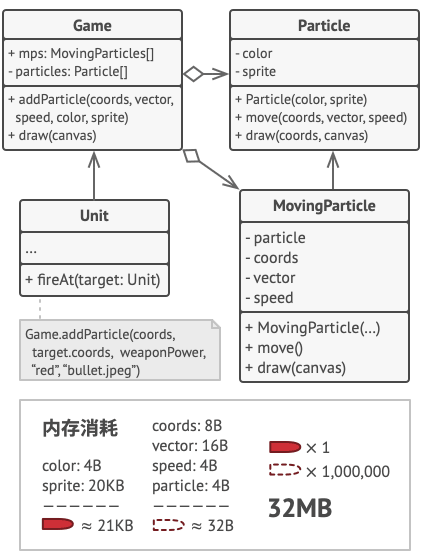

更优雅的解决方案是创建独立的情景类来存储外在状态和对享元对象的引用。 在该方法中, 容器类只需包含一个数组。

稍等! 这样的话情景对象数量不是会和不采用该模式时的对象数量一样多吗? 的确如此, 但这些对象要比之前小很多。 消耗内存最多的成员变量已经被移动到很少的几个享元对象中了。 现在, 一个享元大对象会被上千个情境小对象复用, 因此无需再重复存储数千个大对象的数据。

享元与不可变性

由于享元对象可在不同的情景中使用, 你必须确保其状态不能被修改。 享元类的状态只能由构造函数的参数进行一次性初始化, 它不能对其他对象公开其设置器或公有成员变量。

享元工厂

为了能更方便地访问各种享元, 你可以创建一个工厂方法来管理已有享元对象的缓存池。 工厂方法从客户端处接收目标享元对象的内在状态作为参数, 如果它能在缓存池中找到所需享元, 则将其返回给客户端; 如果没有找到, 它就会新建一个享元, 并将其添加到缓存池中。

你可以选择在程序的不同地方放入该函数。 最简单的选择就是将其放置在享元容器中。 除此之外, 你还可以新建一个工厂类, 或者创建一个静态的工厂方法并将其放入实际的享元类中。

享元模式结构

  1. 享元模式只是一种优化。 在应用该模式之前, 你要确定程序中存在与大量类似对象同时占用内存相关的内存消耗问题, 并且确保该问题无法使用其他更好的方式来解决。
  2. 享元 (Flyweight) 类包含原始对象中部分能在多个对象中共享的状态。 同一享元对象可在许多不同情景中使用。 享元中存储的状态被称为 “内在状态”。 传递给享元方法的状态被称为 “外在状态”。
  3. 情景 (Context) 类包含原始对象中各不相同的外在状态。 情景与享元对象组合在一起就能表示原始对象的全部状态。
  4. 通常情况下, 原始对象的行为会保留在享元类中。 因此调用享元方法必须提供部分外在状态作为参数。 但你也可将行为移动到情景类中, 然后将连入的享元作为单纯的数据对象。
  5. 客户端 (Client) 负责计算或存储享元的外在状态。 在客户端看来, 享元是一种可在运行时进行配置的模板对象, 具体的配置方式为向其方法中传入一些情景数据参数。
  6. 享元工厂 (Flyweight Factory) 会对已有享元的缓存池进行管理。 有了工厂后, 客户端就无需直接创建享元, 它们只需调用工厂并向其传递目标享元的一些内在状态即可。 工厂会根据参数在之前已创建的享元中进行查找, 如果找到满足条件的享元就将其返回; 如果没有找到就根据参数新建享元。

伪代码

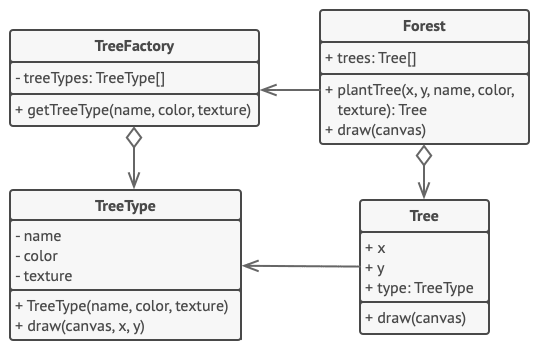

在本例中, 享元模式能有效减少在画布上渲染数百万个树状对象时所需的内存。

该模式从主要的 Tree类中抽取内在状态, 并将其移动到享元类 树种类Tree­Type之中。

最初程序需要在多个对象中存储相同数据, 而现在仅需在几个享元对象中保存数据, 然后在作为情景的 对象中连入享元即可。 客户端代码使用享元工厂创建树对象并封装搜索指定对象的复杂行为, 并能在需要时复用对象。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
// 享元类包含一个树的部分状态。这些成员变量保存的数值对于特定树而言是唯一
// 的。例如,你在这里找不到树的坐标。但这里有很多树木之间所共有的纹理和颜
// 色。由于这些数据的体积通常非常大,所以如果让每棵树都其进行保存的话将耗
// 费大量内存。因此,我们可将纹理、颜色和其他重复数据导出到一个单独的对象
// 中,然后让众多的单个树对象去引用它。
class TreeType is
field name
field color
field texture
constructor TreeType(name, color, texture) { ... }
method draw(canvas, x, y) is
// 1. 创建特定类型、颜色和纹理的位图。
// 2. 在画布坐标 (X,Y) 处绘制位图。

// 享元工厂决定是否复用已有享元或者创建一个新的对象。
class TreeFactory is
static field treeTypes: collection of tree types
static method getTreeType(name, color, texture) is
type = treeTypes.find(name, color, texture)
if (type == null)
type = new TreeType(name, color, texture)
treeTypes.add(type)
return type

// 情景对象包含树状态的外在部分。程序中可以创建数十亿个此类对象,因为它们
// 体积很小:仅有两个整型坐标和一个引用成员变量。
class Tree is
field x,y
field type: TreeType
constructor Tree(x, y, type) { ... }
method draw(canvas) is
type.draw(canvas, this.x, this.y)

// 树(Tree)和森林(Forest)类是享元的客户端。如果不打算继续对树类进行开
// 发,你可以将它们合并。
class Forest is
field trees: collection of Trees

method plantTree(x, y, name, color, texture) is
type = TreeFactory.getTreeType(name, color, texture)
tree = new Tree(x, y, type)
trees.add(tree)

method draw(canvas) is
foreach (tree in trees) do
tree.draw(canvas)

享元模式适合应用场景

仅在程序必须支持大量对象且没有足够的内存容量时使用享元模式。

应用该模式所获的收益大小取决于使用它的方式和情景。 它在下列情况中最有效:

  • 程序需要生成数量巨大的相似对象
  • 这将耗尽目标设备的所有内存
  • 对象中包含可抽取且能在多个对象间共享的重复状态。

实现方式

  1. 将需要改写为享元的类成员变量拆分为两个部分:
    • 内在状态: 包含不变的、 可在许多对象中重复使用的数据的成员变量。
    • 外在状态: 包含每个对象各自不同的情景数据的成员变量
  2. 保留类中表示内在状态的成员变量, 并将其属性设置为不可修改。 这些变量仅可在构造函数中获得初始数值。
  3. 找到所有使用外在状态成员变量的方法, 为在方法中所用的每个成员变量新建一个参数, 并使用该参数代替成员变量。
  4. 你可以有选择地创建工厂类来管理享元缓存池, 它负责在新建享元时检查已有的享元。 如果选择使用工厂, 客户端就只能通过工厂来请求享元, 它们需要将享元的内在状态作为参数传递给工厂。
  5. 客户端必须存储和计算外在状态 (情景) 的数值, 因为只有这样才能调用享元对象的方法。 为了使用方便, 外在状态和引用享元的成员变量可以移动到单独的情景类中。

享元模式优缺点

优点

  • 如果程序中有很多相似对象, 那么你将可以节省大量内存。

缺点

  • 你可能需要牺牲执行速度来换取内存, 因为他人每次调用享元方法时都需要重新计算部分情景数据。
  • 代码会变得更加复杂。 团队中的新成员总是会问: “为什么要像这样拆分一个实体的状态?”。

与其他模式的关系

  • 你可以使用享元模式实现组合模式树的共享叶节点以节省内存。
  • 享元展示了如何生成大量的小型对象, 外观模式则展示了如何用一个对象来代表整个子系统。
  • 如果你能将对象的所有共享状态简化为一个享元对象, 那么享元就和单例模式类似了。 但这两个模式有两个根本性的不同。
    1. 只会有一个单例实体, 但是享元类可以有多个实体, 各实体的内在状态也可以不同。
    2. 单例对象可以是可变的。 享元对象是不可变的。

代码示例

享元是一种结构型设计模式, 它允许你在消耗少量内存的情况下支持大量对象。

模式通过共享多个对象的部分状态来实现上述功能。 换句话来说, 享元会将不同对象的相同数据进行缓存以节省内存。

在 C# 中使用模式

复杂度: ★★★

流行度: ★☆☆

使用示例: 享元模式只有一个目的: 将内存消耗最小化。 如果你的程序没有遇到内存容量不足的问题, 则可以暂时忽略该模式。

识别方法: 享元可以通过构建方法来识别, 它会返回缓存对象而不是创建新的对象。

概念示例

本例说明了享元设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

Program.cs: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
using System;
using System.Collections.Generic;
using System.Linq;
// Use Json.NET library, you can download it from NuGet Package Manager
using Newtonsoft.Json;

namespace RefactoringGuru.DesignPatterns.Flyweight.Conceptual
{
// The Flyweight stores a common portion of the state (also called intrinsic
// state) that belongs to multiple real business entities. The Flyweight
// accepts the rest of the state (extrinsic state, unique for each entity)
// via its method parameters.
public class Flyweight
{
private Car _sharedState;

public Flyweight(Car car)
{
this._sharedState = car;
}

public void Operation(Car uniqueState)
{
string s = JsonConvert.SerializeObject(this._sharedState);
string u = JsonConvert.SerializeObject(uniqueState);
Console.WriteLine($"Flyweight: Displaying shared {s} and unique {u} state.");
}
}

// The Flyweight Factory creates and manages the Flyweight objects. It
// ensures that flyweights are shared correctly. When the client requests a
// flyweight, the factory either returns an existing instance or creates a
// new one, if it doesn't exist yet.
public class FlyweightFactory
{
private List<Tuple<Flyweight, string>> flyweights = new List<Tuple<Flyweight, string>>();

public FlyweightFactory(params Car[] args)
{
foreach (var elem in args)
{
flyweights.Add(new Tuple<Flyweight, string>(new Flyweight(elem), this.getKey(elem)));
}
}

// Returns a Flyweight's string hash for a given state.
public string getKey(Car key)
{
List<string> elements = new List<string>();

elements.Add(key.Model);
elements.Add(key.Color);
elements.Add(key.Company);

if (key.Owner != null && key.Number != null)
{
elements.Add(key.Number);
elements.Add(key.Owner);
}

elements.Sort();

return string.Join("_", elements);
}

// Returns an existing Flyweight with a given state or creates a new
// one.
public Flyweight GetFlyweight(Car sharedState)
{
string key = this.getKey(sharedState);

if (flyweights.Where(t => t.Item2 == key).Count() == 0)
{
Console.WriteLine("FlyweightFactory: Can't find a flyweight, creating new one.");
this.flyweights.Add(new Tuple<Flyweight, string>(new Flyweight(sharedState), key));
}
else
{
Console.WriteLine("FlyweightFactory: Reusing existing flyweight.");
}
return this.flyweights.Where(t => t.Item2 == key).FirstOrDefault().Item1;
}

public void listFlyweights()
{
var count = flyweights.Count;
Console.WriteLine($"\nFlyweightFactory: I have {count} flyweights:");
foreach (var flyweight in flyweights)
{
Console.WriteLine(flyweight.Item2);
}
}
}

public class Car
{
public string Owner { get; set; }

public string Number { get; set; }

public string Company { get; set; }

public string Model { get; set; }

public string Color { get; set; }
}

class Program
{
static void Main(string[] args)
{
// The client code usually creates a bunch of pre-populated
// flyweights in the initialization stage of the application.
var factory = new FlyweightFactory(
new Car { Company = "Chevrolet", Model = "Camaro2018", Color = "pink" },
new Car { Company = "Mercedes Benz", Model = "C300", Color = "black" },
new Car { Company = "Mercedes Benz", Model = "C500", Color = "red" },
new Car { Company = "BMW", Model = "M5", Color = "red" },
new Car { Company = "BMW", Model = "X6", Color = "white" }
);
factory.listFlyweights();

addCarToPoliceDatabase(factory, new Car {
Number = "CL234IR",
Owner = "James Doe",
Company = "BMW",
Model = "M5",
Color = "red"
});

addCarToPoliceDatabase(factory, new Car {
Number = "CL234IR",
Owner = "James Doe",
Company = "BMW",
Model = "X1",
Color = "red"
});

factory.listFlyweights();
}

public static void addCarToPoliceDatabase(FlyweightFactory factory, Car car)
{
Console.WriteLine("\nClient: Adding a car to database.");

var flyweight = factory.GetFlyweight(new Car {
Color = car.Color,
Model = car.Model,
Company = car.Company
});

// The client code either stores or calculates extrinsic state and
// passes it to the flyweight's methods.
flyweight.Operation(car);
}
}
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
FlyweightFactory: I have 5 flyweights:
Camaro2018_Chevrolet_pink
black_C300_Mercedes Benz
C500_Mercedes Benz_red
BMW_M5_red
BMW_white_X6

Client: Adding a car to database.
FlyweightFactory: Reusing existing flyweight.
Flyweight: Displaying shared {"Owner":null,"Number":null,"Company":"BMW","Model":"M5","Color":"red"} and unique {"Owner":"James Doe","Number":"CL234IR","Company":"BMW","Model":"M5","Color":"red"} state.

Client: Adding a car to database.
FlyweightFactory: Can't find a flyweight, creating new one.
Flyweight: Displaying shared {"Owner":null,"Number":null,"Company":"BMW","Model":"X1","Color":"red"} and unique {"Owner":"James Doe","Number":"CL234IR","Company":"BMW","Model":"X1","Color":"red"} state.

FlyweightFactory: I have 6 flyweights:
Camaro2018_Chevrolet_pink
black_C300_Mercedes Benz
C500_Mercedes Benz_red
BMW_M5_red
BMW_white_X6
BMW_red_X1

在 C++ 中使用模式

复杂度: ★★★

流行度: ★☆☆

使用示例: 享元模式只有一个目的: 将内存消耗最小化。 如果你的程序没有遇到内存容量不足的问题, 则可以暂时忽略该模式。

识别方法: 享元可以通过构建方法来识别, 它会返回缓存对象而不是创建新的对象。

概念示例

本例说明了享元设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

main.cc: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
/**
* Flyweight Design Pattern
*
* Intent: Lets you fit more objects into the available amount of RAM by sharing
* common parts of state between multiple objects, instead of keeping all of the
* data in each object.
*/

struct SharedState
{
std::string brand_;
std::string model_;
std::string color_;

SharedState(const std::string &brand, const std::string &model, const std::string &color)
: brand_(brand), model_(model), color_(color)
{
}

friend std::ostream &operator<<(std::ostream &os, const SharedState &ss)
{
return os << "[ " << ss.brand_ << " , " << ss.model_ << " , " << ss.color_ << " ]";
}
};

struct UniqueState
{
std::string owner_;
std::string plates_;

UniqueState(const std::string &owner, const std::string &plates)
: owner_(owner), plates_(plates)
{
}

friend std::ostream &operator<<(std::ostream &os, const UniqueState &us)
{
return os << "[ " << us.owner_ << " , " << us.plates_ << " ]";
}
};

/**
* The Flyweight stores a common portion of the state (also called intrinsic
* state) that belongs to multiple real business entities. The Flyweight accepts
* the rest of the state (extrinsic state, unique for each entity) via its
* method parameters.
*/
class Flyweight
{
private:
SharedState *shared_state_;

public:
Flyweight(const SharedState *shared_state) : shared_state_(new SharedState(*shared_state))
{
}
Flyweight(const Flyweight &other) : shared_state_(new SharedState(*other.shared_state_))
{
}
~Flyweight()
{
delete shared_state_;
}
SharedState *shared_state() const
{
return shared_state_;
}
void Operation(const UniqueState &unique_state) const
{
std::cout << "Flyweight: Displaying shared (" << *shared_state_ << ") and unique (" << unique_state << ") state.\n";
}
};
/**
* The Flyweight Factory creates and manages the Flyweight objects. It ensures
* that flyweights are shared correctly. When the client requests a flyweight,
* the factory either returns an existing instance or creates a new one, if it
* doesn't exist yet.
*/
class FlyweightFactory
{
/**
* @var Flyweight[]
*/
private:
std::unordered_map<std::string, Flyweight> flyweights_;
/**
* Returns a Flyweight's string hash for a given state.
*/
std::string GetKey(const SharedState &ss) const
{
return ss.brand_ + "_" + ss.model_ + "_" + ss.color_;
}

public:
FlyweightFactory(std::initializer_list<SharedState> share_states)
{
for (const SharedState &ss : share_states)
{
this->flyweights_.insert(std::make_pair<std::string, Flyweight>(this->GetKey(ss), Flyweight(&ss)));
}
}

/**
* Returns an existing Flyweight with a given state or creates a new one.
*/
Flyweight GetFlyweight(const SharedState &shared_state)
{
std::string key = this->GetKey(shared_state);
if (this->flyweights_.find(key) == this->flyweights_.end())
{
std::cout << "FlyweightFactory: Can't find a flyweight, creating new one.\n";
this->flyweights_.insert(std::make_pair(key, Flyweight(&shared_state)));
}
else
{
std::cout << "FlyweightFactory: Reusing existing flyweight.\n";
}
return this->flyweights_.at(key);
}
void ListFlyweights() const
{
size_t count = this->flyweights_.size();
std::cout << "\nFlyweightFactory: I have " << count << " flyweights:\n";
for (std::pair<std::string, Flyweight> pair : this->flyweights_)
{
std::cout << pair.first << "\n";
}
}
};

// ...
void AddCarToPoliceDatabase(
FlyweightFactory &ff, const std::string &plates, const std::string &owner,
const std::string &brand, const std::string &model, const std::string &color)
{
std::cout << "\nClient: Adding a car to database.\n";
const Flyweight &flyweight = ff.GetFlyweight({brand, model, color});
// The client code either stores or calculates extrinsic state and passes it
// to the flyweight's methods.
flyweight.Operation({owner, plates});
}

/**
* The client code usually creates a bunch of pre-populated flyweights in the
* initialization stage of the application.
*/

int main()
{
FlyweightFactory *factory = new FlyweightFactory({{"Chevrolet", "Camaro2018", "pink"}, {"Mercedes Benz", "C300", "black"}, {"Mercedes Benz", "C500", "red"}, {"BMW", "M5", "red"}, {"BMW", "X6", "white"}});
factory->ListFlyweights();

AddCarToPoliceDatabase(*factory,
"CL234IR",
"James Doe",
"BMW",
"M5",
"red");

AddCarToPoliceDatabase(*factory,
"CL234IR",
"James Doe",
"BMW",
"X1",
"red");
factory->ListFlyweights();
delete factory;

return 0;
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
FlyweightFactory: I have 5 flyweights:
BMW_X6_white
Mercedes Benz_C500_red
Mercedes Benz_C300_black
BMW_M5_red
Chevrolet_Camaro2018_pink

Client: Adding a car to database.
FlyweightFactory: Reusing existing flyweight.
Flyweight: Displaying shared ([ BMW , M5 , red ]) and unique ([ CL234IR , James Doe ]) state.

Client: Adding a car to database.
FlyweightFactory: Can't find a flyweight, creating new one.
Flyweight: Displaying shared ([ BMW , X1 , red ]) and unique ([ CL234IR , James Doe ]) state.

FlyweightFactory: I have 6 flyweights:
BMW_X1_red
Mercedes Benz_C300_black
BMW_X6_white
Mercedes Benz_C500_red
BMW_M5_red
Chevrolet_Camaro2018_pink

在 Java 中使用模式

复杂度: ★★★

流行度: ★☆☆

使用示例: 享元模式只有一个目的: 将内存消耗最小化。 如果你的程序没有遇到内存容量不足的问题, 则可以暂时忽略该模式。

享元模式在核心 Java 程序库中的示例:

识别方法: 享元可以通过构建方法来识别, 它会返回缓存对象而不是创建新的对象。

渲染一片森林

本例中, 我们将渲染一片森林 (1,000,000 棵树)! 每棵树都由包含一些状态的对象来表示 (坐标和纹理等)。 尽管程序能够完成其主要工作, 但很显然它需要消耗大量内存。

原因很简单: 太多树对象包含重复数据 (名称、 纹理和颜色)。 因此我们可用享元模式来将这些数值存储在单独的享元对象中 ( Tree­Type类)。 现在我们不再将相同数据存储在数千个 Tree对象中, 而是使用一组特殊的数值来引用其中一个享元对象。

客户端代码不会知道任何事情, 因为重用享元对象的复杂机制隐藏在了享元工厂中。

trees

trees/Tree.java: 包含每棵树的独特状态

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
package refactoring_guru.flyweight.example.trees;

import java.awt.*;

public class Tree {
private int x;
private int y;
private TreeType type;

public Tree(int x, int y, TreeType type) {
this.x = x;
this.y = y;
this.type = type;
}

public void draw(Graphics g) {
type.draw(g, x, y);
}
}

trees/TreeType.java: 包含多棵树共享的状态

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
package refactoring_guru.flyweight.example.trees;

import java.awt.*;

public class TreeType {
private String name;
private Color color;
private String otherTreeData;

public TreeType(String name, Color color, String otherTreeData) {
this.name = name;
this.color = color;
this.otherTreeData = otherTreeData;
}

public void draw(Graphics g, int x, int y) {
g.setColor(Color.BLACK);
g.fillRect(x - 1, y, 3, 5);
g.setColor(color);
g.fillOval(x - 5, y - 10, 10, 10);
}
}

trees/TreeFactory.java: 封装创建享元的复杂机制

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
package refactoring_guru.flyweight.example.trees;

import java.awt.*;
import java.util.HashMap;
import java.util.Map;

public class TreeFactory {
static Map<String, TreeType> treeTypes = new HashMap<>();

public static TreeType getTreeType(String name, Color color, String otherTreeData) {
TreeType result = treeTypes.get(name);
if (result == null) {
result = new TreeType(name, color, otherTreeData);
treeTypes.put(name, result);
}
return result;
}
}

forest

forest/Forest.java: 我们绘制的森林

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
package refactoring_guru.flyweight.example.forest;

import refactoring_guru.flyweight.example.trees.Tree;
import refactoring_guru.flyweight.example.trees.TreeFactory;
import refactoring_guru.flyweight.example.trees.TreeType;

import javax.swing.*;
import java.awt.*;
import java.util.ArrayList;
import java.util.List;

public class Forest extends JFrame {
private List<Tree> trees = new ArrayList<>();

public void plantTree(int x, int y, String name, Color color, String otherTreeData) {
TreeType type = TreeFactory.getTreeType(name, color, otherTreeData);
Tree tree = new Tree(x, y, type);
trees.add(tree);
}

@Override
public void paint(Graphics graphics) {
for (Tree tree : trees) {
tree.draw(graphics);
}
}
}

Demo.java: 客户端代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
package refactoring_guru.flyweight.example;

import refactoring_guru.flyweight.example.forest.Forest;

import java.awt.*;

public class Demo {
static int CANVAS_SIZE = 500;
static int TREES_TO_DRAW = 1000000;
static int TREE_TYPES = 2;

public static void main(String[] args) {
Forest forest = new Forest();
for (int i = 0; i < Math.floor(TREES_TO_DRAW / TREE_TYPES); i++) {
forest.plantTree(random(0, CANVAS_SIZE), random(0, CANVAS_SIZE),
"Summer Oak", Color.GREEN, "Oak texture stub");
forest.plantTree(random(0, CANVAS_SIZE), random(0, CANVAS_SIZE),
"Autumn Oak", Color.ORANGE, "Autumn Oak texture stub");
}
forest.setSize(CANVAS_SIZE, CANVAS_SIZE);
forest.setVisible(true);

System.out.println(TREES_TO_DRAW + " trees drawn");
System.out.println("---------------------");
System.out.println("Memory usage:");
System.out.println("Tree size (8 bytes) * " + TREES_TO_DRAW);
System.out.println("+ TreeTypes size (~30 bytes) * " + TREE_TYPES + "");
System.out.println("---------------------");
System.out.println("Total: " + ((TREES_TO_DRAW * 8 + TREE_TYPES * 30) / 1024 / 1024) +
"MB (instead of " + ((TREES_TO_DRAW * 38) / 1024 / 1024) + "MB)");
}

private static int random(int min, int max) {
return min + (int) (Math.random() * ((max - min) + 1));
}
}

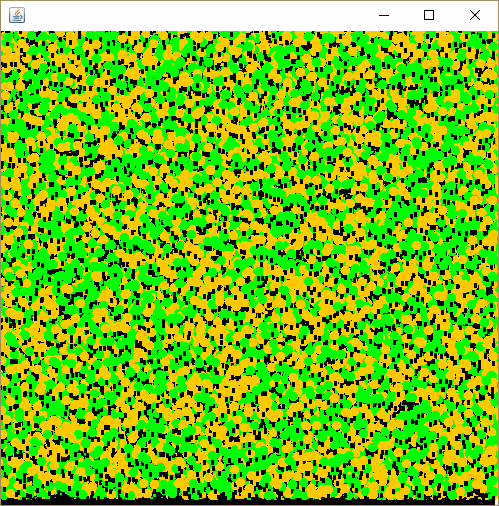

OutputDemo.png: 屏幕截图

OutputDemo.txt: 内存使用统计

1
2
3
4
5
6
7
1000000 trees drawn
---------------------
Memory usage:
Tree size (8 bytes) * 1000000
+ TreeTypes size (~30 bytes) * 2
---------------------
Total: 7MB (instead of 36MB)

在 PHP 中使用模式

复杂度: ★★★

流行度: ☆☆☆

使用示例: 由于 PHP 语言的特性, 享元模式很少在 PHP 中使用。 PHP 脚本通常仅需要应用的一部分数据, 从不会同时将所有数据载入内存。

识别方法: 享元可以通过构建方法来识别, 它会返回缓存对象而不是创建新的对象。

概念示例

本例说明了享元设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

了解该模式的结构后, 你可以更轻松地理解下面基于真实世界的 PHP 应用案例。

index.php: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
<?php

namespace RefactoringGuru\Flyweight\Conceptual;

/**
* The Flyweight stores a common portion of the state (also called intrinsic
* state) that belongs to multiple real business entities. The Flyweight accepts
* the rest of the state (extrinsic state, unique for each entity) via its
* method parameters.
*/
class Flyweight
{
private $sharedState;

public function __construct($sharedState)
{
$this->sharedState = $sharedState;
}

public function operation($uniqueState): void
{
$s = json_encode($this->sharedState);
$u = json_encode($uniqueState);
echo "Flyweight: Displaying shared ($s) and unique ($u) state.\n";
}
}

/**
* The Flyweight Factory creates and manages the Flyweight objects. It ensures
* that flyweights are shared correctly. When the client requests a flyweight,
* the factory either returns an existing instance or creates a new one, if it
* doesn't exist yet.
*/
class FlyweightFactory
{
/**
* @var Flyweight[]
*/
private $flyweights = [];

public function __construct(array $initialFlyweights)
{
foreach ($initialFlyweights as $state) {
$this->flyweights[$this->getKey($state)] = new Flyweight($state);
}
}

/**
* Returns a Flyweight's string hash for a given state.
*/
private function getKey(array $state): string
{
ksort($state);

return implode("_", $state);
}

/**
* Returns an existing Flyweight with a given state or creates a new one.
*/
public function getFlyweight(array $sharedState): Flyweight
{
$key = $this->getKey($sharedState);

if (!isset($this->flyweights[$key])) {
echo "FlyweightFactory: Can't find a flyweight, creating new one.\n";
$this->flyweights[$key] = new Flyweight($sharedState);
} else {
echo "FlyweightFactory: Reusing existing flyweight.\n";
}

return $this->flyweights[$key];
}

public function listFlyweights(): void
{
$count = count($this->flyweights);
echo "\nFlyweightFactory: I have $count flyweights:\n";
foreach ($this->flyweights as $key => $flyweight) {
echo $key . "\n";
}
}
}

/**
* The client code usually creates a bunch of pre-populated flyweights in the
* initialization stage of the application.
*/
$factory = new FlyweightFactory([
["Chevrolet", "Camaro2018", "pink"],
["Mercedes Benz", "C300", "black"],
["Mercedes Benz", "C500", "red"],
["BMW", "M5", "red"],
["BMW", "X6", "white"],
// ...
]);
$factory->listFlyweights();

// ...

function addCarToPoliceDatabase(
FlyweightFactory $ff, $plates, $owner,
$brand, $model, $color
) {
echo "\nClient: Adding a car to database.\n";
$flyweight = $ff->getFlyweight([$brand, $model, $color]);

// The client code either stores or calculates extrinsic state and passes it
// to the flyweight's methods.
$flyweight->operation([$plates, $owner]);
}

addCarToPoliceDatabase($factory,
"CL234IR",
"James Doe",
"BMW",
"M5",
"red",
);

addCarToPoliceDatabase($factory,
"CL234IR",
"James Doe",
"BMW",
"X1",
"red",
);

$factory->listFlyweights();

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
FlyweightFactory: I have 5 flyweights:
Chevrolet_Camaro2018_pink
Mercedes Benz_C300_black
Mercedes Benz_C500_red
BMW_M5_red
BMW_X6_white

Client: Adding a car to database.
FlyweightFactory: Reusing existing flyweight.
Flyweight: Displaying shared (["BMW","M5","red"]) and unique (["CL234IR","James Doe"]) state.

Client: Adding a car to database.
FlyweightFactory: Can't find a flyweight, creating new one.
Flyweight: Displaying shared (["BMW","X1","red"]) and unique (["CL234IR","James Doe"]) state.

FlyweightFactory: I have 6 flyweights:
Chevrolet_Camaro2018_pink
Mercedes Benz_C300_black
Mercedes Benz_C500_red
BMW_M5_red
BMW_X6_white
BMW_X1_red

真实世界示例

在我们开始前, 请注意享元模式在 PHP 中的真实应用情况非常罕见。 这源于 PHP 的单线程特性, 你不应该在同一线程中同时将应用中的所有对象载入内存。 尽管本例并非完全严谨, 且内存问题可以通过调整应用结构来解决, 但是它仍说明了在真实世界中使用该模式时的概念。 好了, 我已经做完了免责声明。 现在让我们开始吧。

在本例中, 享元模式被用于将猫类专科兽医诊所动物数据库中的对象内存用量最小化。 数据库中的每条记录都将由对象 来表示, 其数据由两个部分组成:

  1. 特殊 (外在) 数据 (例如宠物名字、 年龄和主人的信息)。
  2. 共享 (内在) 数据 (例如品种名称、 颜色和纹理等)。

第一部分直接存储在 类中作为上下文。 但第二部分则会单独存储且由好几只猫共享。 共享数据存储在 猫品种 (Cat­Variation) 类中。 所有包含类似特征的猫都会链接到同一个 猫品种类, 而不是在其自身对象中存储重复的数据。

index.php: 真实世界示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
<?php

namespace RefactoringGuru\Flyweight\RealWorld;

/**
* Flyweight objects represent the data shared by multiple Cat objects. This is
* the combination of breed, color, texture, etc.
*/
class CatVariation
{
/**
* The so-called "intrinsic" state.
*/
public $breed;

public $image;

public $color;

public $texture;

public $fur;

public $size;

public function __construct(
string $breed,
string $image,
string $color,
string $texture,
string $fur,
string $size
) {
$this->breed = $breed;
$this->image = $image;
$this->color = $color;
$this->texture = $texture;
$this->fur = $fur;
$this->size = $size;
}

/**
* This method displays the cat information. The method accepts the
* extrinsic state as arguments. The rest of the state is stored inside
* Flyweight's fields.
*
* You might be wondering why we had put the primary cat's logic into the
* CatVariation class instead of keeping it in the Cat class. I agree, it
* does sound confusing.
*
* Keep in mind that in the real world, the Flyweight pattern can either be
* implemented from the start or forced onto an existing application
* whenever the developers realize they've hit upon a RAM problem.
*
* In the latter case, you end up with such classes as we have here. We kind
* of "refactored" an ideal app where all the data was initially inside the
* Cat class. If we had implemented the Flyweight from the start, our class
* names might be different and less confusing. For example, Cat and
* CatContext.
*
* However, the actual reason why the primary behavior should live in the
* Flyweight class is that you might not have the Context class declared at
* all. The context data might be stored in an array or some other more
* efficient data structure. You won't have another place to put your
* methods in, except the Flyweight class.
*/
public function renderProfile(string $name, string $age, string $owner)
{
echo "= $name =\n";
echo "Age: $age\n";
echo "Owner: $owner\n";
echo "Breed: $this->breed\n";
echo "Image: $this->image\n";
echo "Color: $this->color\n";
echo "Texture: $this->texture\n";
}
}

/**
* The context stores the data unique for each cat.
*
* A designated class for storing context is optional and not always viable. The
* context may be stored inside a massive data structure within the Client code
* and passed to the flyweight methods when needed.
*/
class Cat
{
/**
* The so-called "extrinsic" state.
*/
public $name;

public $age;

public $owner;

/**
* @var CatVariation
*/
private $variation;

public function __construct(string $name, string $age, string $owner, CatVariation $variation)
{
$this->name = $name;
$this->age = $age;
$this->owner = $owner;
$this->variation = $variation;
}

/**
* Since the Context objects don't own all of their state, sometimes, for
* the sake of convenience, you may need to implement some helper methods
* (for example, for comparing several Context objects.)
*/
public function matches(array $query): bool
{
foreach ($query as $key => $value) {
if (property_exists($this, $key)) {
if ($this->$key != $value) {
return false;
}
} elseif (property_exists($this->variation, $key)) {
if ($this->variation->$key != $value) {
return false;
}
} else {
return false;
}
}

return true;
}

/**
* The Context might also define several shortcut methods, that delegate
* execution to the Flyweight object. These methods might be remnants of
* real methods, extracted to the Flyweight class during a massive
* refactoring to the Flyweight pattern.
*/
public function render(): string
{
$this->variation->renderProfile($this->name, $this->age, $this->owner);
}
}

/**
* The Flyweight Factory stores both the Context and Flyweight objects,
* effectively hiding any notion of the Flyweight pattern from the client.
*/
class CatDataBase
{
/**
* The list of cat objects (Contexts).
*/
private $cats = [];

/**
* The list of cat variations (Flyweights).
*/
private $variations = [];

/**
* When adding a cat to the database, we look for an existing cat variation
* first.
*/
public function addCat(
string $name,
string $age,
string $owner,
string $breed,
string $image,
string $color,
string $texture,
string $fur,
string $size
) {
$variation =
$this->getVariation($breed, $image, $color, $texture, $fur, $size);
$this->cats[] = new Cat($name, $age, $owner, $variation);
echo "CatDataBase: Added a cat ($name, $breed).\n";
}

/**
* Return an existing variation (Flyweight) by given data or create a new
* one if it doesn't exist yet.
*/
public function getVariation(
string $breed,
string $image, $color,
string $texture,
string $fur,
string $size
): CatVariation {
$key = $this->getKey(get_defined_vars());

if (!isset($this->variations[$key])) {
$this->variations[$key] =
new CatVariation($breed, $image, $color, $texture, $fur, $size);
}

return $this->variations[$key];
}

/**
* This function helps to generate unique array keys.
*/
private function getKey(array $data): string
{
return md5(implode("_", $data));
}

/**
* Look for a cat in the database using the given query parameters.
*/
public function findCat(array $query)
{
foreach ($this->cats as $cat) {
if ($cat->matches($query)) {
return $cat;
}
}
echo "CatDataBase: Sorry, your query does not yield any results.";
}
}

/**
* The client code.
*/
$db = new CatDataBase();

echo "Client: Let's see what we have in \"cats.csv\".\n";

// To see the real effect of the pattern, you should have a large database with
// several millions of records. Feel free to experiment with code to see the
// real extent of the pattern.
$handle = fopen(__DIR__ . "/cats.csv", "r");
$row = 0;
$columns = [];
while (($data = fgetcsv($handle)) !== false) {
if ($row == 0) {
for ($c = 0; $c < count($data); $c++) {
$columnIndex = $c;
$columnKey = strtolower($data[$c]);
$columns[$columnKey] = $columnIndex;
}
$row++;
continue;
}

$db->addCat(
$data[$columns['name']],
$data[$columns['age']],
$data[$columns['owner']],
$data[$columns['breed']],
$data[$columns['image']],
$data[$columns['color']],
$data[$columns['texture']],
$data[$columns['fur']],
$data[$columns['size']],
);
$row++;
}
fclose($handle);

// ...

echo "\nClient: Let's look for a cat named \"Siri\".\n";
$cat = $db->findCat(['name' => "Siri"]);
if ($cat) {
$cat->render();
}

echo "\nClient: Let's look for a cat named \"Bob\".\n";
$cat = $db->findCat(['name' => "Bob"]);
if ($cat) {
$cat->render();
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Client: Let's see what we have in "cats.csv".
CatDataBase: Added a cat (Steve, Bengal).
CatDataBase: Added a cat (Siri, Domestic short-haired).
CatDataBase: Added a cat (Fluffy, Maine Coon).

Client: Let's look for a cat named "Siri".
= Siri =
Age: 2
Owner: Alexander Shvets
Breed: Domestic short-haired
Image: /cats/domestic-sh.jpg
Color: Black
Texture: Solid

Client: Let's look for a cat named "Bob".
CatDataBase: Sorry, your query does not yield any results.

在 Python 中使用模式

复杂度: ★★★

流行度: ☆☆☆

使用示例: 享元模式只有一个目的: 将内存消耗最小化。 如果你的程序没有遇到内存容量不足的问题, 则可以暂时忽略该模式。

识别方法: 享元可以通过构建方法来识别, 它会返回缓存对象而不是创建新的对象。

概念示例

本例说明了享元设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

main.py: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
import json
from typing import Dict


class Flyweight():
"""
The Flyweight stores a common portion of the state (also called intrinsic
state) that belongs to multiple real business entities. The Flyweight
accepts the rest of the state (extrinsic state, unique for each entity) via
its method parameters.
"""

def __init__(self, shared_state: str) -> None:
self._shared_state = shared_state

def operation(self, unique_state: str) -> None:
s = json.dumps(self._shared_state)
u = json.dumps(unique_state)
print(f"Flyweight: Displaying shared ({s}) and unique ({u}) state.", end="")


class FlyweightFactory():
"""
The Flyweight Factory creates and manages the Flyweight objects. It ensures
that flyweights are shared correctly. When the client requests a flyweight,
the factory either returns an existing instance or creates a new one, if it
doesn't exist yet.
"""

_flyweights: Dict[str, Flyweight] = {}

def __init__(self, initial_flyweights: Dict) -> None:
for state in initial_flyweights:
self._flyweights[self.get_key(state)] = Flyweight(state)

def get_key(self, state: Dict) -> str:
"""
Returns a Flyweight's string hash for a given state.
"""

return "_".join(sorted(state))

def get_flyweight(self, shared_state: Dict) -> Flyweight:
"""
Returns an existing Flyweight with a given state or creates a new one.
"""

key = self.get_key(shared_state)

if not self._flyweights.get(key):
print("FlyweightFactory: Can't find a flyweight, creating new one.")
self._flyweights[key] = Flyweight(shared_state)
else:
print("FlyweightFactory: Reusing existing flyweight.")

return self._flyweights[key]

def list_flyweights(self) -> None:
count = len(self._flyweights)
print(f"FlyweightFactory: I have {count} flyweights:")
print("\n".join(map(str, self._flyweights.keys())), end="")


def add_car_to_police_database(
factory: FlyweightFactory, plates: str, owner: str,
brand: str, model: str, color: str
) -> None:
print("\n\nClient: Adding a car to database.")
flyweight = factory.get_flyweight([brand, model, color])
# The client code either stores or calculates extrinsic state and passes it
# to the flyweight's methods.
flyweight.operation([plates, owner])


if __name__ == "__main__":
"""
The client code usually creates a bunch of pre-populated flyweights in the
initialization stage of the application.
"""

factory = FlyweightFactory([
["Chevrolet", "Camaro2018", "pink"],
["Mercedes Benz", "C300", "black"],
["Mercedes Benz", "C500", "red"],
["BMW", "M5", "red"],
["BMW", "X6", "white"],
])

factory.list_flyweights()

add_car_to_police_database(
factory, "CL234IR", "James Doe", "BMW", "M5", "red")

add_car_to_police_database(
factory, "CL234IR", "James Doe", "BMW", "X1", "red")

print("\n")

factory.list_flyweights()

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
FlyweightFactory: I have 5 flyweights:
Camaro2018_Chevrolet_pink
C300_Mercedes Benz_black
C500_Mercedes Benz_red
BMW_M5_red
BMW_X6_white

Client: Adding a car to database.
FlyweightFactory: Reusing existing flyweight.
Flyweight: Displaying shared (["BMW", "M5", "red"]) and unique (["CL234IR", "James Doe"]) state.

Client: Adding a car to database.
FlyweightFactory: Can't find a flyweight, creating new one.
Flyweight: Displaying shared (["BMW", "X1", "red"]) and unique (["CL234IR", "James Doe"]) state.

FlyweightFactory: I have 6 flyweights:
Camaro2018_Chevrolet_pink
C300_Mercedes Benz_black
C500_Mercedes Benz_red
BMW_M5_red
BMW_X6_white
BMW_X1_red

在 Ruby 中使用模式

复杂度: ★★★

流行度: ☆☆☆

使用示例: 享元模式只有一个目的: 将内存消耗最小化。 如果你的程序没有遇到内存容量不足的问题, 则可以暂时忽略该模式。

识别方法: 享元可以通过构建方法来识别, 它会返回缓存对象而不是创建新的对象。

概念示例

本例说明了享元设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

main.rb: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
require 'json'

# The Flyweight stores a common portion of the state (also called intrinsic
# state) that belongs to multiple real business entities. The Flyweight accepts
# the rest of the state (extrinsic state, unique for each entity) via its method
# parameters.
class Flyweight
# @param [String] shared_state
def initialize(shared_state)
@shared_state = shared_state
end

# @param [String] unique_state
def operation(unique_state)
s = @shared_state.to_json
u = unique_state.to_json
print "Flyweight: Displaying shared (#{s}) and unique (#{u}) state."
end
end

# The Flyweight Factory creates and manages the Flyweight objects. It ensures
# that flyweights are shared correctly. When the client requests a flyweight,
# the factory either returns an existing instance or creates a new one, if it
# doesn't exist yet.
class FlyweightFactory
# @param [Hash] initial_flyweights
def initialize(initial_flyweights)
@flyweights = {}
initial_flyweights.each do |state|
@flyweights[get_key(state)] = Flyweight.new(state)
end
end

# Returns a Flyweight's string hash for a given state.
def get_key(state)
state.sort.join('_')
end

# Returns an existing Flyweight with a given state or creates a new one.
def get_flyweight(shared_state)
key = get_key(shared_state)

if !@flyweights.key?(key)
puts "FlyweightFactory: Can't find a flyweight, creating new one."
@flyweights[key] = Flyweight.new(shared_state)
else
puts 'FlyweightFactory: Reusing existing flyweight.'
end

@flyweights[key]
end

def list_flyweights
puts "FlyweightFactory: I have #{@flyweights.size} flyweights:"
print @flyweights.keys.join("\n")
end
end

# @param [FlyweightFactory] factory
# @param [String] plates
# @param [String] owner
# @param [String] brand
# @param [String] model
# @param [String] color
def add_car_to_police_database(factory, plates, owner, brand, model, color)
puts "\n\nClient: Adding a car to database."
flyweight = factory.get_flyweight([brand, model, color])
# The client code either stores or calculates extrinsic state and passes it to
# the flyweight's methods.
flyweight.operation([plates, owner])
end

# The client code usually creates a bunch of pre-populated flyweights in the
# initialization stage of the application.

factory = FlyweightFactory.new([
%w[Chevrolet Camaro2018 pink],
['Mercedes Benz', 'C300', 'black'],
['Mercedes Benz', 'C500', 'red'],
%w[BMW M5 red],
%w[BMW X6 white]
])

factory.list_flyweights

add_car_to_police_database(factory, 'CL234IR', 'James Doe', 'BMW', 'M5', 'red')

add_car_to_police_database(factory, 'CL234IR', 'James Doe', 'BMW', 'X1', 'red')

puts "\n\n"

factory.list_flyweights

output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
FlyweightFactory: I have 5 flyweights:
Camaro2018_Chevrolet_pink
C300_Mercedes Benz_black
C500_Mercedes Benz_red
BMW_M5_red
BMW_X6_white

Client: Adding a car to database.
FlyweightFactory: Reusing existing flyweight.
Flyweight: Displaying shared (["BMW","M5","red"]) and unique (["CL234IR","James Doe"]) state.

Client: Adding a car to database.
FlyweightFactory: Can't find a flyweight, creating new one.
Flyweight: Displaying shared (["BMW","X1","red"]) and unique (["CL234IR","James Doe"]) state.

FlyweightFactory: I have 6 flyweights:
Camaro2018_Chevrolet_pink
C300_Mercedes Benz_black
C500_Mercedes Benz_red
BMW_M5_red
BMW_X6_white
BMW_X1_red

在 Swift 中使用模式

复杂度: ★★★

流行度: ☆☆☆

使用示例: 享元模式只有一个目的: 将内存消耗最小化。 如果你的程序没有遇到内存容量不足的问题, 则可以暂时忽略该模式。

识别方法: 享元可以通过构建方法来识别, 它会返回缓存对象而不是创建新的对象。

概念示例

本例说明了享元设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

了解该模式的结构后, 你可以更轻松地理解下面基于真实世界的 Swift 应用案例。

Example.swift: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
import XCTest

/// The Flyweight stores a common portion of the state (also called intrinsic
/// state) that belongs to multiple real business entities. The Flyweight
/// accepts the rest of the state (extrinsic state, unique for each entity) via
/// its method parameters.
class Flyweight {

private let sharedState: [String]

init(sharedState: [String]) {
self.sharedState = sharedState
}

func operation(uniqueState: [String]) {
print("Flyweight: Displaying shared (\(sharedState)) and unique (\(uniqueState) state.\n")
}
}

/// The Flyweight Factory creates and manages the Flyweight objects. It ensures
/// that flyweights are shared correctly. When the client requests a flyweight,
/// the factory either returns an existing instance or creates a new one, if it
/// doesn't exist yet.
class FlyweightFactory {

private var flyweights: [String: Flyweight]

init(states: [[String]]) {

var flyweights = [String: Flyweight]()

for state in states {
flyweights[state.key] = Flyweight(sharedState: state)
}

self.flyweights = flyweights
}

/// Returns an existing Flyweight with a given state or creates a new one.
func flyweight(for state: [String]) -> Flyweight {

let key = state.key

guard let foundFlyweight = flyweights[key] else {

print("FlyweightFactory: Can't find a flyweight, creating new one.\n")
let flyweight = Flyweight(sharedState: state)
flyweights.updateValue(flyweight, forKey: key)
return flyweight
}
print("FlyweightFactory: Reusing existing flyweight.\n")
return foundFlyweight
}

func printFlyweights() {
print("FlyweightFactory: I have \(flyweights.count) flyweights:\n")
for item in flyweights {
print(item.key)
}
}
}

extension Array where Element == String {

/// Returns a Flyweight's string hash for a given state.
var key: String {
return self.joined()
}
}


class FlyweightConceptual: XCTestCase {

func testFlyweight() {

/// The client code usually creates a bunch of pre-populated flyweights
/// in the initialization stage of the application.

let factory = FlyweightFactory(states:
[
["Chevrolet", "Camaro2018", "pink"],
["Mercedes Benz", "C300", "black"],
["Mercedes Benz", "C500", "red"],
["BMW", "M5", "red"],
["BMW", "X6", "white"]
])

factory.printFlyweights()

/// ...

addCarToPoliceDatabase(factory,
"CL234IR",
"James Doe",
"BMW",
"M5",
"red")

addCarToPoliceDatabase(factory,
"CL234IR",
"James Doe",
"BMW",
"X1",
"red")

factory.printFlyweights()
}

func addCarToPoliceDatabase(
_ factory: FlyweightFactory,
_ plates: String,
_ owner: String,
_ brand: String,
_ model: String,
_ color: String) {

print("Client: Adding a car to database.\n")

let flyweight = factory.flyweight(for: [brand, model, color])

/// The client code either stores or calculates extrinsic state and
/// passes it to the flyweight's methods.
flyweight.operation(uniqueState: [plates, owner])
}
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
FlyweightFactory: I have 5 flyweights:

Mercedes BenzC500red
ChevroletCamaro2018pink
Mercedes BenzC300black
BMWX6white
BMWM5red
Client: Adding a car to database.

FlyweightFactory: Reusing existing flyweight.

Flyweight: Displaying shared (["BMW", "M5", "red"]) and unique (["CL234IR", "James Doe"] state.

Client: Adding a car to database.

FlyweightFactory: Can't find a flyweight, creating new one.

Flyweight: Displaying shared (["BMW", "X1", "red"]) and unique (["CL234IR", "James Doe"] state.

FlyweightFactory: I have 6 flyweights:

Mercedes BenzC500red
BMWX1red
ChevroletCamaro2018pink
Mercedes BenzC300black
BMWX6white
BMWM5red

真实世界示例

Example.swift: 真实世界示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
import XCTest
import UIKit

class FlyweightRealWorld: XCTestCase {

func testFlyweightRealWorld() {

let maineCoon = Animal(name: "Maine Coon",
country: "USA",
type: .cat)

let sphynx = Animal(name: "Sphynx",
country: "Egypt",
type: .cat)

let bulldog = Animal(name: "Bulldog",
country: "England",
type: .dog)

print("Client: I created a number of objects to display")

/// Displaying objects for the 1-st time.

print("Client: Let's show animals for the 1st time\n")
display(animals: [maineCoon, sphynx, bulldog])


/// Displaying objects for the 2-nd time.
///
/// Note: Cached object of the appearance will be reused this time.

print("\nClient: I have a new dog, let's show it the same way!\n")

let germanShepherd = Animal(name: "German Shepherd",
country: "Germany",
type: .dog)

display(animals: [germanShepherd])
}
}

extension FlyweightRealWorld {

func display(animals: [Animal]) {

let cells = loadCells(count: animals.count)

for index in 0..<animals.count {
cells[index].update(with: animals[index])
}

/// Using cells...
}

func loadCells(count: Int) -> [Cell] {
/// Emulates behavior of a table/collection view.
return Array(repeating: Cell(), count: count)
}
}

enum Type: String {
case cat
case dog
}

class Cell {

private var animal: Animal?

func update(with animal: Animal) {
self.animal = animal
let type = animal.type.rawValue
let photos = "photos \(animal.appearance.photos.count)"
print("Cell: Updating an appearance of a \(type)-cell: \(photos)\n")
}
}

struct Animal: Equatable {

/// This is an external context that contains specific values and an object
/// with a common state.
///
/// Note: The object of appearance will be lazily created when it is needed

let name: String
let country: String
let type: Type

var appearance: Appearance {
return AppearanceFactory.appearance(for: type)
}
}

struct Appearance: Equatable {

/// This object contains a predefined appearance of every cell

let photos: [UIImage]
let backgroundColor: UIColor
}

extension Animal: CustomStringConvertible {

var description: String {
return "\(name), \(country), \(type.rawValue) + \(appearance.description)"
}
}

extension Appearance: CustomStringConvertible {

var description: String {
return "photos: \(photos.count), \(backgroundColor)"
}
}

class AppearanceFactory {

private static var cache = [Type: Appearance]()

static func appearance(for key: Type) -> Appearance {

guard cache[key] == nil else {
print("AppearanceFactory: Reusing an existing \(key.rawValue)-appearance.")
return cache[key]!
}

print("AppearanceFactory: Can't find a cached \(key.rawValue)-object, creating a new one.")

switch key {
case .cat:
cache[key] = catInfo
case .dog:
cache[key] = dogInfo
}

return cache[key]!
}
}

extension AppearanceFactory {

private static var catInfo: Appearance {
return Appearance(photos: [UIImage()], backgroundColor: .red)
}

private static var dogInfo: Appearance {
return Appearance(photos: [UIImage(), UIImage()], backgroundColor: .blue)
}
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Client: I created a number of objects to display
Client: Let's show animals for the 1st time

AppearanceFactory: Can't find a cached cat-object, creating a new one.
Cell: Updating an appearance of a cat-cell: photos 1

AppearanceFactory: Reusing an existing cat-appearance.
Cell: Updating an appearance of a cat-cell: photos 1

AppearanceFactory: Can't find a cached dog-object, creating a new one.
Cell: Updating an appearance of a dog-cell: photos 2


Client: I have a new dog, let's show it the same way!

AppearanceFactory: Reusing an existing dog-appearance.
Cell: Updating an appearance of a dog-cell: photos 2

在 TypeScript 中使用模式

复杂度: ★★★

流行度: ☆☆☆

使用示例: 享元模式只有一个目的: 将内存消耗最小化。 如果你的程序没有遇到内存容量不足的问题, 则可以暂时忽略该模式。

识别方法: 享元可以通过构建方法来识别, 它会返回缓存对象而不是创建新的对象。

概念示例

本例说明了享元设计模式的结构并重点回答了下面的问题:

  • 它由哪些类组成?
  • 这些类扮演了哪些角色?
  • 模式中的各个元素会以何种方式相互关联?

index.ts: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
/**
* The Flyweight stores a common portion of the state (also called intrinsic
* state) that belongs to multiple real business entities. The Flyweight accepts
* the rest of the state (extrinsic state, unique for each entity) via its
* method parameters.
*/
class Flyweight {
private sharedState: any;

constructor(sharedState: any) {
this.sharedState = sharedState;
}

public operation(uniqueState): void {
const s = JSON.stringify(this.sharedState);
const u = JSON.stringify(uniqueState);
console.log(`Flyweight: Displaying shared (${s}) and unique (${u}) state.`);
}
}

/**
* The Flyweight Factory creates and manages the Flyweight objects. It ensures
* that flyweights are shared correctly. When the client requests a flyweight,
* the factory either returns an existing instance or creates a new one, if it
* doesn't exist yet.
*/
class FlyweightFactory {
private flyweights: {[key: string]: Flyweight} = <any>{};

constructor(initialFlyweights: string[][]) {
for (const state of initialFlyweights) {
this.flyweights[this.getKey(state)] = new Flyweight(state);
}
}

/**
* Returns a Flyweight's string hash for a given state.
*/
private getKey(state: string[]): string {
return state.join('_');
}

/**
* Returns an existing Flyweight with a given state or creates a new one.
*/
public getFlyweight(sharedState: string[]): Flyweight {
const key = this.getKey(sharedState);

if (!(key in this.flyweights)) {
console.log('FlyweightFactory: Can\'t find a flyweight, creating new one.');
this.flyweights[key] = new Flyweight(sharedState);
} else {
console.log('FlyweightFactory: Reusing existing flyweight.');
}

return this.flyweights[key];
}

public listFlyweights(): void {
const count = Object.keys(this.flyweights).length;
console.log(`\nFlyweightFactory: I have ${count} flyweights:`);
for (const key in this.flyweights) {
console.log(key);
}
}
}

/**
* The client code usually creates a bunch of pre-populated flyweights in the
* initialization stage of the application.
*/
const factory = new FlyweightFactory([
['Chevrolet', 'Camaro2018', 'pink'],
['Mercedes Benz', 'C300', 'black'],
['Mercedes Benz', 'C500', 'red'],
['BMW', 'M5', 'red'],
['BMW', 'X6', 'white'],
// ...
]);
factory.listFlyweights();

// ...

function addCarToPoliceDatabase(
ff: FlyweightFactory, plates: string, owner: string,
brand: string, model: string, color: string,
) {
console.log('\nClient: Adding a car to database.');
const flyweight = ff.getFlyweight([brand, model, color]);

// The client code either stores or calculates extrinsic state and passes it
// to the flyweight's methods.
flyweight.operation([plates, owner]);
}

addCarToPoliceDatabase(factory, 'CL234IR', 'James Doe', 'BMW', 'M5', 'red');

addCarToPoliceDatabase(factory, 'CL234IR', 'James Doe', 'BMW', 'X1', 'red');

factory.listFlyweights();

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
FlyweightFactory: I have 5 flyweights:
Chevrolet_Camaro2018_pink
Mercedes Benz_C300_black
Mercedes Benz_C500_red
BMW_M5_red
BMW_X6_white

Client: Adding a car to database.
FlyweightFactory: Reusing existing flyweight.
Flyweight: Displaying shared (["BMW","M5","red"]) and unique (["CL234IR","James Doe"]) state.

Client: Adding a car to database.
FlyweightFactory: Can't find a flyweight, creating new one.
Flyweight: Displaying shared (["BMW","X1","red"]) and unique (["CL234IR","James Doe"]) state.

FlyweightFactory: I have 6 flyweights:
Chevrolet_Camaro2018_pink
Mercedes Benz_C300_black
Mercedes Benz_C500_red
BMW_M5_red
BMW_X6_white
BMW_X1_red

概念示例

在游戏 《反恐精英》 中, 恐怖分子和反恐精英身着不同类型的衣物。 为了简便起见, 我们就假设双方都各有一种服装类型。 服装对象嵌入在玩家对象之中, 如下所示。

下面是玩家的结构体。 我们可以看到, 服装对象是嵌入在玩家结构体之中的:

1
2
3
4
5
6
type player struct {
dress dress
playerType string // 可为 T 或 CT
lat int
long int
}

假设目前有 5 名恐怖分子和 5 名反恐精英, 一共是 10 名玩家。 那么关于服装, 我们就有两个选项了。

  1. 10 个玩家对象各自创建不同的服装对象, 并将其嵌入。 总共会创建 10 个服装对象。
  2. 我们创建两个服装对象:
  • 单一恐怖分子服装对象: 其将在 5 名恐怖分子之间共享。
  • 单一反恐精英服装对象: 其将在 5 名反恐精英之间共享。

你可以看到, 方法 1 中我们总共创建了 10 个服装对象; 方法 2 中则只有 2 个服装对象。 第二种方法, 就是我们所遵循的享元设计模式。 我们所创建的 2 个服装对象被称为是享元对象。

享元模式会从对象中提取出公共部分并创建享元对象。 这些享元对象 (服装) 随后可在多个对象 (玩家) 中分享。 这极大地减少了服装对象的数量, 更棒的是即便你创建了更多玩家, 也只需这么两个服装对象就足够了。

在享元模式中, 我们会将享元对象存储在 map 容器中。 每当创建共享享元对象的其他对象时, 都会从 map 容器中获取享元对象。

下面让我们来看看此类安排的内部状态和外部状态:

  • 内部状态: 内部状态的服装可在多个恐怖分子和反恐精英对象间共享。
  • 外部状态: 玩家位置和玩家所使用的武器就是外部状态, 因为其在每个对象中都是不同的。

dressFactory.go: 享元工厂

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
package main

import "fmt"

const (
//TerroristDressType terrorist dress type
TerroristDressType = "tDress"
//CounterTerrroristDressType terrorist dress type
CounterTerrroristDressType = "ctDress"
)

var (
dressFactorySingleInstance = &dressFactory{
dressMap: make(map[string]dress),
}
)

type dressFactory struct {
dressMap map[string]dress
}

func (d *dressFactory) getDressByType(dressType string) (dress, error) {
if d.dressMap[dressType] != nil {
return d.dressMap[dressType], nil
}

if dressType == TerroristDressType {
d.dressMap[dressType] = newTerroristDress()
return d.dressMap[dressType], nil
}
if dressType == CounterTerrroristDressType {
d.dressMap[dressType] = newCounterTerroristDress()
return d.dressMap[dressType], nil
}

return nil, fmt.Errorf("Wrong dress type passed")
}

func getDressFactorySingleInstance() *dressFactory {
return dressFactorySingleInstance
}

dress.go: 享元接口

1
2
3
4
5
package main

type dress interface {
getColor() string
}

terroristDress.go: 具体享元对象

1
2
3
4
5
6
7
8
9
10
11
12
13
package main

type terroristDress struct {
color string
}

func (t *terroristDress) getColor() string {
return t.color
}

func newTerroristDress() *terroristDress {
return &terroristDress{color: "red"}
}

counterTerroristDress.go: 具体享元对象

1
2
3
4
5
6
7
8
9
10
11
12
13
package main

type counterTerroristDress struct {
color string
}

func (c *counterTerroristDress) getColor() string {
return c.color
}

func newCounterTerroristDress() *counterTerroristDress {
return &counterTerroristDress{color: "green"}
}

player.go: 背景

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
package main

type player struct {
dress dress
playerType string
lat int
long int
}

func newPlayer(playerType, dressType string) *player {
dress, _ := getDressFactorySingleInstance().getDressByType(dressType)
return &player{
playerType: playerType,
dress: dress,
}
}

func (p *player) newLocation(lat, long int) {
p.lat = lat
p.long = long
}

game.go: 客户端代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
package main

type game struct {
terrorists []*player
counterTerrorists []*player
}

func newGame() *game {
return &game{
terrorists: make([]*player, 1),
counterTerrorists: make([]*player, 1),
}
}

func (c *game) addTerrorist(dressType string) {
player := newPlayer("T", dressType)
c.terrorists = append(c.terrorists, player)
return
}

func (c *game) addCounterTerrorist(dressType string) {
player := newPlayer("CT", dressType)
c.counterTerrorists = append(c.counterTerrorists, player)
return
}

main.go: 客户端代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
package main

import "fmt"

func main() {
game := newGame()

//Add Terrorist
game.addTerrorist(TerroristDressType)
game.addTerrorist(TerroristDressType)
game.addTerrorist(TerroristDressType)
game.addTerrorist(TerroristDressType)

//Add CounterTerrorist
game.addCounterTerrorist(CounterTerrroristDressType)
game.addCounterTerrorist(CounterTerrroristDressType)
game.addCounterTerrorist(CounterTerrroristDressType)

dressFactoryInstance := getDressFactorySingleInstance()

for dressType, dress := range dressFactoryInstance.dressMap {
fmt.Printf("DressColorType: %s\nDressColor: %s\n", dressType, dress.getColor())
}
}

output.txt: 执行结果

1
2
3
4
DressColorType: ctDress
DressColor: green
DressColorType: tDress
DressColor: red

根据: Golang By Example
