结构型模式-组合模式

亦称： 对象树、Object Tree、Composite

意图

组合模式是一种结构型设计模式， 你可以使用它将对象组合成树状结构， 并且能像使用独立对象一样使用它们。

问题

如果应用的核心模型能用树状结构表示， 在应用中使用组合模式才有价值。

例如， 你有两类对象： 产品和 盒子 。 一个盒子中可以包含多个 产品或者几个较小的 盒子 。 这些小 盒子中同样可以包含一些 产品或更小的 盒子 ， 以此类推。

假设你希望在这些类的基础上开发一个定购系统。 订单中可以包含无包装的简单产品， 也可以包含装满产品的盒子……以及其他盒子。 此时你会如何计算每张订单的总价格呢？

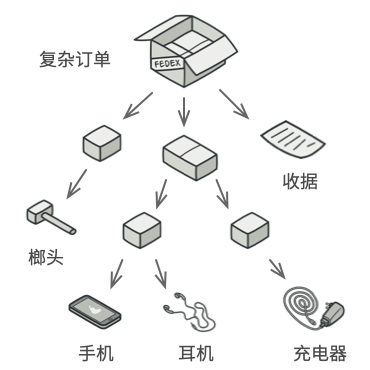

订单中可能包括各种产品， 这些产品放置在盒子中， 然后又被放入一层又一层更大的盒子中。 整个结构看上去像是一棵倒过来的树

你可以尝试直接计算： 打开所有盒子， 找到每件产品， 然后计算总价。 这在真实世界中或许可行， 但在程序中， 你并不能简单地使用循环语句来完成该工作。 你必须事先知道所有 产品和 盒子的类别， 所有盒子的嵌套层数以及其他繁杂的细节信息。 因此， 直接计算极不方便， 甚至完全不可行。

解决方案

组合模式建议使用一个通用接口来与 产品和 盒子进行交互， 并且在该接口中声明一个计算总价的方法。

那么方法该如何设计呢？ 对于一个产品， 该方法直接返回其价格； 对于一个盒子， 该方法遍历盒子中的所有项目， 询问每个项目的价格， 然后返回该盒子的总价格。 如果其中某个项目是小一号的盒子， 那么当前盒子也会遍历其中的所有项目， 以此类推， 直到计算出所有内部组成部分的价格。 你甚至可以在盒子的最终价格中增加额外费用， 作为该盒子的包装费用。

组合模式以递归方式处理对象树中的所有项目

该方式的最大优点在于你无需了解构成树状结构的对象的具体类。 你也无需了解对象是简单的产品还是复杂的盒子。 你只需调用通用接口以相同的方式对其进行处理即可。 当你调用该方法后， 对象会将请求沿着树结构传递下去。

真实世界类比

部队结构的例子

大部分国家的军队都采用层次结构管理。 每支部队包括几个师， 师由旅构成， 旅由团构成， 团可以继续划分为排。 最后， 每个排由一小队实实在在的士兵组成。 军事命令由最高层下达， 通过每个层级传递， 直到每位士兵都知道自己应该服从的命令。

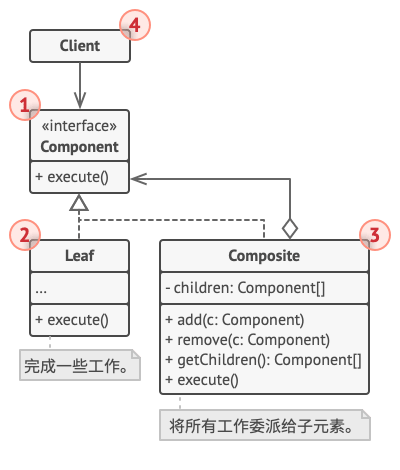

组合模式结构

  1. 组件 （Component） 接口描述了树中简单项目和复杂项目所共有的操作。

  2. 叶节点 （Leaf） 是树的基本结构， 它不包含子项目。

    一般情况下， 叶节点最终会完成大部分的实际工作， 因为它们无法将工作指派给其他部分。

  3. 容器 （Container）——又名 “组合 （Composite）”——是包含叶节点或其他容器等子项目的单位。 容器不知道其子项目所属的具体类， 它只通过通用的组件接口与其子项目交互。

    容器接收到请求后会将工作分配给自己的子项目， 处理中间结果， 然后将最终结果返回给客户端。

  4. 客户端 （Client） 通过组件接口与所有项目交互。 因此， 客户端能以相同方式与树状结构中的简单或复杂项目交互。

伪代码

在本例中， 我们将借助组合模式帮助你在图形编辑器中实现一系列的几何图形。

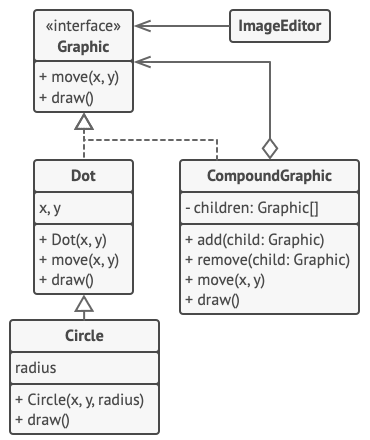

几何形状编辑器示例

组合图形Compound­Graphic是一个容器， 它可以由多个包括容器在内的子图形构成。 组合图形与简单图形拥有相同的方法。 但是， 组合图形自身并不完成具体工作， 而是将请求递归地传递给自己的子项目， 然后 “汇总” 结果。

通过所有图形类所共有的接口， 客户端代码可以与所有图形互动。 因此， 客户端不知道与其交互的是简单图形还是组合图形。 客户端可以与非常复杂的对象结构进行交互， 而无需与组成该结构的实体类紧密耦合。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
// 组件接口会声明组合中简单和复杂对象的通用操作。
interface Graphic is
    method move(x, y)
    method draw()

// 叶节点类代表组合的终端对象。叶节点对象中不能包含任何子对象。叶节点对象
// 通常会完成实际的工作，组合对象则仅会将工作委派给自己的子部件。
class Dot implements Graphic is
    field x, y

    constructor Dot(x, y) { ... }

    method move(x, y) is
        this.x += x, this.y += y

    method draw() is
        // 在坐标位置(X,Y)处绘制一个点。

// 所有组件类都可以扩展其他组件。
class Circle extends Dot is
    field radius

    constructor Circle(x, y, radius) { ... }

    method draw() is
        // 在坐标位置(X,Y)处绘制一个半径为 R 的圆。

// 组合类表示可能包含子项目的复杂组件。组合对象通常会将实际工作委派给子项
// 目，然后“汇总”结果。
class CompoundGraphic implements Graphic is
    field children: array of Graphic

    // 组合对象可在其项目列表中添加或移除其他组件（简单的或复杂的皆可）。
    method add(child: Graphic) is
        // 在子项目数组中添加一个子项目。

    method remove(child: Graphic) is
        // 从子项目数组中移除一个子项目。

    method move(x, y) is
        foreach (child in children) do
            child.move(x, y)

    // 组合会以特定的方式执行其主要逻辑。它会递归遍历所有子项目，并收集和
    // 汇总其结果。由于组合的子项目也会将调用传递给自己的子项目，以此类推，
    // 最后组合将会完成整个对象树的遍历工作。
    method draw() is
        // 1. 对于每个子部件：
        //     - 绘制该部件。
        //     - 更新边框坐标。
        // 2. 根据边框坐标绘制一个虚线长方形。


// 客户端代码会通过基础接口与所有组件进行交互。这样一来，客户端代码便可同
// 时支持简单叶节点组件和复杂组件。
class ImageEditor is
    field all: CompoundGraphic

    method load() is
        all = new CompoundGraphic()
        all.add(new Dot(1, 2))
        all.add(new Circle(5, 3, 10))
        // ...

    // 将所需组件组合为复杂的组合组件。
    method groupSelected(components: array of Graphic) is
        group = new CompoundGraphic()
        foreach (component in components) do
            group.add(component)
            all.remove(component)
        all.add(group)
        // 所有组件都将被绘制。
        all.draw()

组合模式适合应用场景

如果你需要实现树状对象结构，可以使用组合模式。

组合模式为你提供了两种共享公共接口的基本元素类型： 简单叶节点和复杂容器。 容器中可以包含叶节点和其他容器。 这使得你可以构建树状嵌套递归对象结构。

如果你希望客户端代码以相同方式处理简单和复杂元素，可以使用该模式。

组合模式中定义的所有元素共用同一个接口。 在这一接口的帮助下， 客户端不必在意其所使用的对象的具体类。

实现方式

  1. 确保应用的核心模型能够以树状结构表示。 尝试将其分解为简单元素和容器。 记住， 容器必须能够同时包含简单元素和其他容器。

  2. 声明组件接口及其一系列方法， 这些方法对简单和复杂元素都有意义。

  3. 创建一个叶节点类表示简单元素。 程序中可以有多个不同的叶节点类。

  4. 创建一个容器类表示复杂元素。 在该类中， 创建一个数组成员变量来存储对于其子元素的引用。 该数组必须能够同时保存叶节点和容器， 因此请确保将其声明为组合接口类型。

    实现组件接口方法时， 记住容器应该将大部分工作交给其子元素来完成。

  5. 最后， 在容器中定义添加和删除子元素的方法。

    记住， 这些操作可在组件接口中声明。 这将会违反_接口隔离原则_， 因为叶节点类中的这些方法为空。 但是， 这可以让客户端无差别地访问所有元素， 即使是组成树状结构的元素。

组合模式优缺点

优点

  • 你可以利用多态和递归机制更方便地使用复杂树结构。
  • 开闭原则。 无需更改现有代码， 你就可以在应用中添加新元素， 使其成为对象树的一部分。

缺点

  • 对于功能差异较大的类， 提供公共接口或许会有困难。 在特定情况下， 你需要过度一般化组件接口， 使其变得令人难以理解。

与其他模式的关系

  • 桥接模式、 状态模式和策略模式 （在某种程度上包括适配器模式） 模式的接口非常相似。 实际上， 它们都基于组合模式——即将工作委派给其他对象， 不过也各自解决了不同的问题。 模式并不只是以特定方式组织代码的配方， 你还可以使用它们来和其他开发者讨论模式所解决的问题。

  • 你可以在创建复杂组合树时使用生成器模式， 因为这可使其构造步骤以递归的方式运行。

  • 责任链模式通常和组合模式结合使用。 在这种情况下， 叶组件接收到请求后， 可以将请求沿包含全体父组件的链一直传递至对象树的底部。

  • 你可以使用迭代器模式来遍历组合树。

  • 你可以使用访问者模式对整个组合树执行操作。

  • 你可以使用享元模式实现组合树的共享叶节点以节省内存。

  • 组合和装饰模式的结构图很相似， 因为两者都依赖递归组合来组织无限数量的对象。

    装饰类似于组合， 但其只有一个子组件。 此外还有一个明显不同： 装饰为被封装对象添加了额外的职责， 组合仅对其子节点的结果进行了 “求和”。

    但是， 模式也可以相互合作： 你可以使用装饰来扩展组合树中特定对象的行为。

  • 大量使用组合和装饰的设计通常可从对于原型模式的使用中获益。 你可以通过该模式来复制复杂结构， 而非从零开始重新构造。

代码示例

组合是一种结构型设计模式， 你可以使用它将对象组合成树状结构， 并且能像使用独立对象一样使用它们。

对于绝大多数需要生成树状结构的问题来说， 组合都是非常受欢迎的解决方案。 组合最主要的功能是在整个树状结构上递归调用方法并对结果进行汇总。

在 C# 中使用模式

复杂度： ★★☆

流行度： ★★☆

使用实例： 组合模式在 C# 代码中很常见， 常用于表示与图形打交道的用户界面组件或代码的层次结构。

识别方法： 组合可以通过将同一抽象或接口类型的实例放入树状结构的行为方法来轻松识别。

概念示例

本例说明了组合设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

Program.cs: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
using System;
using System.Collections.Generic;

namespace RefactoringGuru.DesignPatterns.Composite.Conceptual
{
    // The base Component class declares common operations for both simple and
    // complex objects of a composition.
    abstract class Component
    {
        public Component() { }

        // The base Component may implement some default behavior or leave it to
        // concrete classes (by declaring the method containing the behavior as
        // "abstract").
        public abstract string Operation();

        // In some cases, it would be beneficial to define the child-management
        // operations right in the base Component class. This way, you won't
        // need to expose any concrete component classes to the client code,
        // even during the object tree assembly. The downside is that these
        // methods will be empty for the leaf-level components.
        public virtual void Add(Component component)
        {
            throw new NotImplementedException();
        }

        public virtual void Remove(Component component)
        {
            throw new NotImplementedException();
        }

        // You can provide a method that lets the client code figure out whether
        // a component can bear children.
        public virtual bool IsComposite()
        {
            return true;
        }
    }

    // The Leaf class represents the end objects of a composition. A leaf can't
    // have any children.
    //
    // Usually, it's the Leaf objects that do the actual work, whereas Composite
    // objects only delegate to their sub-components.
    class Leaf : Component
    {
        public override string Operation()
        {
            return "Leaf";
        }

        public override bool IsComposite()
        {
            return false;
        }
    }

    // The Composite class represents the complex components that may have
    // children. Usually, the Composite objects delegate the actual work to
    // their children and then "sum-up" the result.
    class Composite : Component
    {
        protected List<Component> _children = new List<Component>();

        public override void Add(Component component)
        {
            this._children.Add(component);
        }

        public override void Remove(Component component)
        {
            this._children.Remove(component);
        }

        // The Composite executes its primary logic in a particular way. It
        // traverses recursively through all its children, collecting and
        // summing their results. Since the composite's children pass these
        // calls to their children and so forth, the whole object tree is
        // traversed as a result.
        public override string Operation()
        {
            int i = 0;
            string result = "Branch(";

            foreach (Component component in this._children)
            {
                result += component.Operation();
                if (i != this._children.Count - 1)
                {
                    result += "+";
                }
                i++;
            }

            return result + ")";
        }
    }

    class Client
    {
        // The client code works with all of the components via the base
        // interface.
        public void ClientCode(Component leaf)
        {
            Console.WriteLine($"RESULT: {leaf.Operation()}\n");
        }

        // Thanks to the fact that the child-management operations are declared
        // in the base Component class, the client code can work with any
        // component, simple or complex, without depending on their concrete
        // classes.
        public void ClientCode2(Component component1, Component component2)
        {
            if (component1.IsComposite())
            {
                component1.Add(component2);
            }

            Console.WriteLine($"RESULT: {component1.Operation()}");
        }
    }

    class Program
    {
        static void Main(string[] args)
        {
            Client client = new Client();

            // This way the client code can support the simple leaf
            // components...
            Leaf leaf = new Leaf();
            Console.WriteLine("Client: I get a simple component:");
            client.ClientCode(leaf);

            // ...as well as the complex composites.
            Composite tree = new Composite();
            Composite branch1 = new Composite();
            branch1.Add(new Leaf());
            branch1.Add(new Leaf());
            Composite branch2 = new Composite();
            branch2.Add(new Leaf());
            tree.Add(branch1);
            tree.Add(branch2);
            Console.WriteLine("Client: Now I've got a composite tree:");
            client.ClientCode(tree);

            Console.Write("Client: I don't need to check the components classes even when managing the tree:\n");
            client.ClientCode2(tree, leaf);
        }
    }
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
Client: I get a simple component:
RESULT: Leaf

Client: Now I've got a composite tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf))

Client: I don't need to check the components classes even when managing the tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf)+Leaf)

在 C++ 中使用模式

复杂度： ★★☆

流行度： ★★☆

使用实例： 组合模式在 C++ 代码中很常见， 常用于表示与图形打交道的用户界面组件或代码的层次结构。

识别方法： 组合可以通过将同一抽象或接口类型的实例放入树状结构的行为方法来轻松识别。

概念示例

本例说明了组合设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

main.cc: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
#include <algorithm>
#include <iostream>
#include <list>
#include <string>
/**
 * The base Component class declares common operations for both simple and
 * complex objects of a composition.
 */
class Component {
  /**
   * @var Component
   */
 protected:
  Component *parent_;
  /**
   * Optionally, the base Component can declare an interface for setting and
   * accessing a parent of the component in a tree structure. It can also
   * provide some default implementation for these methods.
   */
 public:
  virtual ~Component() {}
  void SetParent(Component *parent) {
    this->parent_ = parent;
  }
  Component *GetParent() const {
    return this->parent_;
  }
  /**
   * In some cases, it would be beneficial to define the child-management
   * operations right in the base Component class. This way, you won't need to
   * expose any concrete component classes to the client code, even during the
   * object tree assembly. The downside is that these methods will be empty for
   * the leaf-level components.
   */
  virtual void Add(Component *component) {}
  virtual void Remove(Component *component) {}
  /**
   * You can provide a method that lets the client code figure out whether a
   * component can bear children.
   */
  virtual bool IsComposite() const {
    return false;
  }
  /**
   * The base Component may implement some default behavior or leave it to
   * concrete classes (by declaring the method containing the behavior as
   * "abstract").
   */
  virtual std::string Operation() const = 0;
};
/**
 * The Leaf class represents the end objects of a composition. A leaf can't have
 * any children.
 *
 * Usually, it's the Leaf objects that do the actual work, whereas Composite
 * objects only delegate to their sub-components.
 */
class Leaf : public Component {
 public:
  std::string Operation() const override {
    return "Leaf";
  }
};
/**
 * The Composite class represents the complex components that may have children.
 * Usually, the Composite objects delegate the actual work to their children and
 * then "sum-up" the result.
 */
class Composite : public Component {
  /**
   * @var \SplObjectStorage
   */
 protected:
  std::list<Component *> children_;

 public:
  /**
   * A composite object can add or remove other components (both simple or
   * complex) to or from its child list.
   */
  void Add(Component *component) override {
    this->children_.push_back(component);
    component->SetParent(this);
  }
  /**
   * Have in mind that this method removes the pointer to the list but doesn't
   * frees the
   *     memory, you should do it manually or better use smart pointers.
   */
  void Remove(Component *component) override {
    children_.remove(component);
    component->SetParent(nullptr);
  }
  bool IsComposite() const override {
    return true;
  }
  /**
   * The Composite executes its primary logic in a particular way. It traverses
   * recursively through all its children, collecting and summing their results.
   * Since the composite's children pass these calls to their children and so
   * forth, the whole object tree is traversed as a result.
   */
  std::string Operation() const override {
    std::string result;
    for (const Component *c : children_) {
      if (c == children_.back()) {
        result += c->Operation();
      } else {
        result += c->Operation() + "+";
      }
    }
    return "Branch(" + result + ")";
  }
};
/**
 * The client code works with all of the components via the base interface.
 */
void ClientCode(Component *component) {
  // ...
  std::cout << "RESULT: " << component->Operation();
  // ...
}

/**
 * Thanks to the fact that the child-management operations are declared in the
 * base Component class, the client code can work with any component, simple or
 * complex, without depending on their concrete classes.
 */
void ClientCode2(Component *component1, Component *component2) {
  // ...
  if (component1->IsComposite()) {
    component1->Add(component2);
  }
  std::cout << "RESULT: " << component1->Operation();
  // ...
}

/**
 * This way the client code can support the simple leaf components...
 */

int main() {
  Component *simple = new Leaf;
  std::cout << "Client: I've got a simple component:\n";
  ClientCode(simple);
  std::cout << "\n\n";
  /**
   * ...as well as the complex composites.
   */

  Component *tree = new Composite;
  Component *branch1 = new Composite;

  Component *leaf_1 = new Leaf;
  Component *leaf_2 = new Leaf;
  Component *leaf_3 = new Leaf;
  branch1->Add(leaf_1);
  branch1->Add(leaf_2);
  Component *branch2 = new Composite;
  branch2->Add(leaf_3);
  tree->Add(branch1);
  tree->Add(branch2);
  std::cout << "Client: Now I've got a composite tree:\n";
  ClientCode(tree);
  std::cout << "\n\n";

  std::cout << "Client: I don't need to check the components classes even when managing the tree:\n";
  ClientCode2(tree, simple);
  std::cout << "\n";

  delete simple;
  delete tree;
  delete branch1;
  delete branch2;
  delete leaf_1;
  delete leaf_2;
  delete leaf_3;

  return 0;
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
Client: I've got a simple component:
RESULT: Leaf

Client: Now I've got a composite tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf))

Client: I don't need to check the components classes even when managing the tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf)+Leaf)

在 Java 中使用模式

复杂度： ★★☆

流行度： ★★☆

使用实例： 组合模式在 Java 代码中很常见,常用于表示与图形打交道的用户界面组件或代码的层次结构。

下面是一些来自 Java 标准程序库中的组合示例：

识别方法： 组合可以通过将同一抽象或接口类型的实例放入树状结构的行为方法来轻松识别。

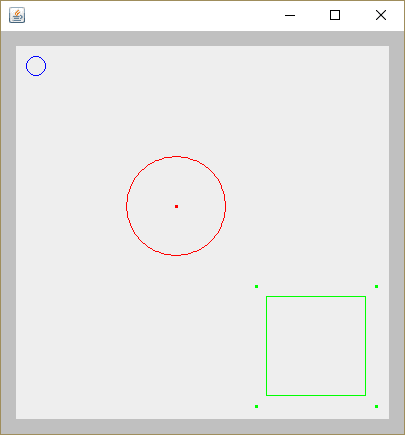

简单和复合图形

本例展示了如何利用较为简单的形状来组成复杂图形， 以及如何统一处理简单和复杂图形。

shapes

shapes/Shape.java: 通用形状接口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
package refactoring_guru.composite.example.shapes;

import java.awt.*;

public interface Shape {
    int getX();
    int getY();
    int getWidth();
    int getHeight();
    void move(int x, int y);
    boolean isInsideBounds(int x, int y);
    void select();
    void unSelect();
    boolean isSelected();
    void paint(Graphics graphics);
}

shapes/BaseShape.java: 提供基本功能的抽象形状

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
package refactoring_guru.composite.example.shapes;

import java.awt.*;

abstract class BaseShape implements Shape {
    public int x;
    public int y;
    public Color color;
    private boolean selected = false;

    BaseShape(int x, int y, Color color) {
        this.x = x;
        this.y = y;
        this.color = color;
    }

    @Override
    public int getX() {
        return x;
    }

    @Override
    public int getY() {
        return y;
    }

    @Override
    public int getWidth() {
        return 0;
    }

    @Override
    public int getHeight() {
        return 0;
    }

    @Override
    public void move(int x, int y) {
        this.x += x;
        this.y += y;
    }

    @Override
    public boolean isInsideBounds(int x, int y) {
        return x > getX() && x < (getX() + getWidth()) &&
                y > getY() && y < (getY() + getHeight());
    }

    @Override
    public void select() {
        selected = true;
    }

    @Override
    public void unSelect() {
        selected = false;
    }

    @Override
    public boolean isSelected() {
        return selected;
    }

    void enableSelectionStyle(Graphics graphics) {
        graphics.setColor(Color.LIGHT_GRAY);

        Graphics2D g2 = (Graphics2D) graphics;
        float dash1[] = {2.0f};
        g2.setStroke(new BasicStroke(1.0f,
                BasicStroke.CAP_BUTT,
                BasicStroke.JOIN_MITER,
                2.0f, dash1, 0.0f));
    }

    void disableSelectionStyle(Graphics graphics) {
        graphics.setColor(color);
        Graphics2D g2 = (Graphics2D) graphics;
        g2.setStroke(new BasicStroke());
    }


    @Override
    public void paint(Graphics graphics) {
        if (isSelected()) {
            enableSelectionStyle(graphics);
        }
        else {
            disableSelectionStyle(graphics);
        }

        // ...
    }
}

shapes/Dot.java: 点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
package refactoring_guru.composite.example.shapes;

import java.awt.*;

public class Dot extends BaseShape {
    private final int DOT_SIZE = 3;

    public Dot(int x, int y, Color color) {
        super(x, y, color);
    }

    @Override
    public int getWidth() {
        return DOT_SIZE;
    }

    @Override
    public int getHeight() {
        return DOT_SIZE;
    }

    @Override
    public void paint(Graphics graphics) {
        super.paint(graphics);
        graphics.fillRect(x - 1, y - 1, getWidth(), getHeight());
    }
}

shapes/Circle.java: 圆形

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
package refactoring_guru.composite.example.shapes;

import java.awt.*;

public class Circle extends BaseShape {
    public int radius;

    public Circle(int x, int y, int radius, Color color) {
        super(x, y, color);
        this.radius = radius;
    }

    @Override
    public int getWidth() {
        return radius * 2;
    }

    @Override
    public int getHeight() {
        return radius * 2;
    }

    public void paint(Graphics graphics) {
        super.paint(graphics);
        graphics.drawOval(x, y, getWidth() - 1, getHeight() - 1);
    }
}

shapes/Rectangle.java: 三角形

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
package refactoring_guru.composite.example.shapes;

import java.awt.*;

public class Rectangle extends BaseShape {
    public int width;
    public int height;

    public Rectangle(int x, int y, int width, int height, Color color) {
        super(x, y, color);
        this.width = width;
        this.height = height;
    }

    @Override
    public int getWidth() {
        return width;
    }

    @Override
    public int getHeight() {
        return height;
    }

    @Override
    public void paint(Graphics graphics) {
        super.paint(graphics);
        graphics.drawRect(x, y, getWidth() - 1, getHeight() - 1);
    }
}

shapes/CompoundShape.java: 由其他形状对象组成的复合形状

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
package refactoring_guru.composite.example.shapes;

import java.awt.*;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

public class CompoundShape extends BaseShape {
    protected List<Shape> children = new ArrayList<>();

    public CompoundShape(Shape... components) {
        super(0, 0, Color.BLACK);
        add(components);
    }

    public void add(Shape component) {
        children.add(component);
    }

    public void add(Shape... components) {
        children.addAll(Arrays.asList(components));
    }

    public void remove(Shape child) {
        children.remove(child);
    }

    public void remove(Shape... components) {
        children.removeAll(Arrays.asList(components));
    }

    public void clear() {
        children.clear();
    }

    @Override
    public int getX() {
        if (children.size() == 0) {
            return 0;
        }
        int x = children.get(0).getX();
        for (Shape child : children) {
            if (child.getX() < x) {
                x = child.getX();
            }
        }
        return x;
    }

    @Override
    public int getY() {
        if (children.size() == 0) {
            return 0;
        }
        int y = children.get(0).getY();
        for (Shape child : children) {
            if (child.getY() < y) {
                y = child.getY();
            }
        }
        return y;
    }

    @Override
    public int getWidth() {
        int maxWidth = 0;
        int x = getX();
        for (Shape child : children) {
            int childsRelativeX = child.getX() - x;
            int childWidth = childsRelativeX + child.getWidth();
            if (childWidth > maxWidth) {
                maxWidth = childWidth;
            }
        }
        return maxWidth;
    }

    @Override
    public int getHeight() {
        int maxHeight = 0;
        int y = getY();
        for (Shape child : children) {
            int childsRelativeY = child.getY() - y;
            int childHeight = childsRelativeY + child.getHeight();
            if (childHeight > maxHeight) {
                maxHeight = childHeight;
            }
        }
        return maxHeight;
    }

    @Override
    public void move(int x, int y) {
        for (Shape child : children) {
            child.move(x, y);
        }
    }

    @Override
    public boolean isInsideBounds(int x, int y) {
        for (Shape child : children) {
            if (child.isInsideBounds(x, y)) {
                return true;
            }
        }
        return false;
    }

    @Override
    public void unSelect() {
        super.unSelect();
        for (Shape child : children) {
            child.unSelect();
        }
    }

    public boolean selectChildAt(int x, int y) {
        for (Shape child : children) {
            if (child.isInsideBounds(x, y)) {
                child.select();
                return true;
            }
        }
        return false;
    }

    @Override
    public void paint(Graphics graphics) {
        if (isSelected()) {
            enableSelectionStyle(graphics);
            graphics.drawRect(getX() - 1, getY() - 1, getWidth() + 1, getHeight() + 1);
            disableSelectionStyle(graphics);
        }

        for (refactoring_guru.composite.example.shapes.Shape child : children) {
            child.paint(graphics);
        }
    }
}

editor

editor/ImageEditor.java: 形状编辑器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
package refactoring_guru.composite.example.editor;

import refactoring_guru.composite.example.shapes.CompoundShape;
import refactoring_guru.composite.example.shapes.Shape;

import javax.swing.*;
import javax.swing.border.Border;
import java.awt.*;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;

public class ImageEditor {
    private EditorCanvas canvas;
    private CompoundShape allShapes = new CompoundShape();

    public ImageEditor() {
        canvas = new EditorCanvas();
    }

    public void loadShapes(Shape... shapes) {
        allShapes.clear();
        allShapes.add(shapes);
        canvas.refresh();
    }

    private class EditorCanvas extends Canvas {
        JFrame frame;

        private static final int PADDING = 10;

        EditorCanvas() {
            createFrame();
            refresh();
            addMouseListener(new MouseAdapter() {
                @Override
                public void mousePressed(MouseEvent e) {
                    allShapes.unSelect();
                    allShapes.selectChildAt(e.getX(), e.getY());
                    e.getComponent().repaint();
                }
            });
        }

        void createFrame() {
            frame = new JFrame();
            frame.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
            frame.setLocationRelativeTo(null);

            JPanel contentPanel = new JPanel();
            Border padding = BorderFactory.createEmptyBorder(PADDING, PADDING, PADDING, PADDING);
            contentPanel.setBorder(padding);
            frame.setContentPane(contentPanel);

            frame.add(this);
            frame.setVisible(true);
            frame.getContentPane().setBackground(Color.LIGHT_GRAY);
        }

        public int getWidth() {
            return allShapes.getX() + allShapes.getWidth() + PADDING;
        }

        public int getHeight() {
            return allShapes.getY() + allShapes.getHeight() + PADDING;
        }

        void refresh() {
            this.setSize(getWidth(), getHeight());
            frame.pack();
        }

        public void paint(Graphics graphics) {
            allShapes.paint(graphics);
        }
    }
}

Demo.java: 客户端代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
package refactoring_guru.composite.example;

import refactoring_guru.composite.example.editor.ImageEditor;
import refactoring_guru.composite.example.shapes.Circle;
import refactoring_guru.composite.example.shapes.CompoundShape;
import refactoring_guru.composite.example.shapes.Dot;
import refactoring_guru.composite.example.shapes.Rectangle;

import java.awt.*;

public class Demo {
    public static void main(String[] args) {
        ImageEditor editor = new ImageEditor();

        editor.loadShapes(
                new Circle(10, 10, 10, Color.BLUE),

                new CompoundShape(
                    new Circle(110, 110, 50, Color.RED),
                    new Dot(160, 160, Color.RED)
                ),

                new CompoundShape(
                        new Rectangle(250, 250, 100, 100, Color.GREEN),
                        new Dot(240, 240, Color.GREEN),
                        new Dot(240, 360, Color.GREEN),
                        new Dot(360, 360, Color.GREEN),
                        new Dot(360, 240, Color.GREEN)
                )
        );
    }
}

OutputDemo.png: 执行结果

在 PHP 中使用模式

复杂度： ★★☆

流行度： ★★☆

使用实例： 组合模式常在与对象树打交道时使用。 最简单的示例是将该模式应用到 DOM 树的元素上， 使得我们能用相同的方式来与树上的组合和简单元素进行合作。

识别方法： 组合可以通过将同一抽象或接口类型的实例放入树状结构的行为方法来轻松识别。

概念示例

本例说明了组合设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

了解该模式的结构后， 你可以更容易地理解下面基于真实世界的 PHP 应用案例。

index.php: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
<?php

namespace RefactoringGuru\Composite\Conceptual;

/**
 * The base Component class declares common operations for both simple and
 * complex objects of a composition.
 */
abstract class Component
{
    /**
     * @var Component
     */
    protected $parent;

    /**
     * Optionally, the base Component can declare an interface for setting and
     * accessing a parent of the component in a tree structure. It can also
     * provide some default implementation for these methods.
     */
    public function setParent(Component $parent)
    {
        $this->parent = $parent;
    }

    public function getParent(): Component
    {
        return $this->parent;
    }

    /**
     * In some cases, it would be beneficial to define the child-management
     * operations right in the base Component class. This way, you won't need to
     * expose any concrete component classes to the client code, even during the
     * object tree assembly. The downside is that these methods will be empty
     * for the leaf-level components.
     */
    public function add(Component $component): void { }

    public function remove(Component $component): void { }

    /**
     * You can provide a method that lets the client code figure out whether a
     * component can bear children.
     */
    public function isComposite(): bool
    {
        return false;
    }

    /**
     * The base Component may implement some default behavior or leave it to
     * concrete classes (by declaring the method containing the behavior as
     * "abstract").
     */
    abstract public function operation(): string;
}

/**
 * The Leaf class represents the end objects of a composition. A leaf can't have
 * any children.
 *
 * Usually, it's the Leaf objects that do the actual work, whereas Composite
 * objects only delegate to their sub-components.
 */
class Leaf extends Component
{
    public function operation(): string
    {
        return "Leaf";
    }
}

/**
 * The Composite class represents the complex components that may have children.
 * Usually, the Composite objects delegate the actual work to their children and
 * then "sum-up" the result.
 */
class Composite extends Component
{
    /**
     * @var \SplObjectStorage
     */
    protected $children;

    public function __construct()
    {
        $this->children = new \SplObjectStorage();
    }

    /**
     * A composite object can add or remove other components (both simple or
     * complex) to or from its child list.
     */
    public function add(Component $component): void
    {
        $this->children->attach($component);
        $component->setParent($this);
    }

    public function remove(Component $component): void
    {
        $this->children->detach($component);
        $component->setParent(null);
    }

    public function isComposite(): bool
    {
        return true;
    }

    /**
     * The Composite executes its primary logic in a particular way. It
     * traverses recursively through all its children, collecting and summing
     * their results. Since the composite's children pass these calls to their
     * children and so forth, the whole object tree is traversed as a result.
     */
    public function operation(): string
    {
        $results = [];
        foreach ($this->children as $child) {
            $results[] = $child->operation();
        }

        return "Branch(" . implode("+", $results) . ")";
    }
}

/**
 * The client code works with all of the components via the base interface.
 */
function clientCode(Component $component)
{
    // ...

    echo "RESULT: " . $component->operation();

    // ...
}

/**
 * This way the client code can support the simple leaf components...
 */
$simple = new Leaf();
echo "Client: I've got a simple component:\n";
clientCode($simple);
echo "\n\n";

/**
 * ...as well as the complex composites.
 */
$tree = new Composite();
$branch1 = new Composite();
$branch1->add(new Leaf());
$branch1->add(new Leaf());
$branch2 = new Composite();
$branch2->add(new Leaf());
$tree->add($branch1);
$tree->add($branch2);
echo "Client: Now I've got a composite tree:\n";
clientCode($tree);
echo "\n\n";

/**
 * Thanks to the fact that the child-management operations are declared in the
 * base Component class, the client code can work with any component, simple or
 * complex, without depending on their concrete classes.
 */
function clientCode2(Component $component1, Component $component2)
{
    // ...

    if ($component1->isComposite()) {
        $component1->add($component2);
    }
    echo "RESULT: " . $component1->operation();

    // ...
}

echo "Client: I don't need to check the components classes even when managing the tree:\n";
clientCode2($tree, $simple);

Output.txt: 执行结果

1
2
3
4
5
6
7
8
Client: I get a simple component:
RESULT: Leaf

Client: Now I get a composite tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf))

Client: I don't need to check the components classes even when managing the tree::
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf)+Leaf)

真实世界示例

组合模式可以精简任何使用树状递归结构的工作。 HTML DOM 树就是这种结构的例子。 例如， 各种输入元素可担当叶节点， 而表单和字段集则可担当组合的角色。

请记住， 你可以用组合模式以对待树结构内部元素的方式来在整个 HTML 树上执行各种行为， 而又无需让代码与 DOM 树的具体类相耦合。 此类行为的示例可以是渲染 DOM 元素、 将其导出为多种格式、 校验其组件等等。

使用组合模式时， 你无需在执行行为前检查元素类型是简单还是复杂。 它会根据元素类型决定是马上执行， 还是将其传递给该元素的所有子元素。

index.php: 真实世界示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
<?php

namespace RefactoringGuru\Composite\RealWorld;

/**
 * The base Component class declares an interface for all concrete components,
 * both simple and complex.
 *
 * In our example, we'll be focusing on the rendering behavior of DOM elements.
 */
abstract class FormElement
{
    /**
     * We can anticipate that all DOM elements require these 3 fields.
     */
    protected $name;
    protected $title;
    protected $data;

    public function __construct(string $name, string $title)
    {
        $this->name = $name;
        $this->title = $title;
    }

    public function getName(): string
    {
        return $this->name;
    }

    public function setData($data): void
    {
        $this->data = $data;
    }

    public function getData(): array
    {
        return $this->data;
    }

    /**
     * Each concrete DOM element must provide its rendering implementation, but
     * we can safely assume that all of them are returning strings.
     */
    abstract public function render(): string;
}

/**
 * This is a Leaf component. Like all the Leaves, it can't have any children.
 */
class Input extends FormElement
{
    private $type;

    public function __construct(string $name, string $title, string $type)
    {
        parent::__construct($name, $title);
        $this->type = $type;
    }

    /**
     * Since Leaf components don't have any children that may handle the bulk of
     * the work for them, usually it is the Leaves who do the most of the heavy-
     * lifting within the Composite pattern.
     */
    public function render(): string
    {
        return "<label for=\"{$this->name}\">{$this->title}</label>\n" .
            "<input name=\"{$this->name}\" type=\"{$this->type}\" value=\"{$this->data}\">\n";
    }
}

/**
 * The base Composite class implements the infrastructure for managing child
 * objects, reused by all Concrete Composites.
 */
abstract class FieldComposite extends FormElement
{
    /**
     * @var FormElement[]
     */
    protected $fields = [];

    /**
     * The methods for adding/removing sub-objects.
     */
    public function add(FormElement $field): void
    {
        $name = $field->getName();
        $this->fields[$name] = $field;
    }

    public function remove(FormElement $component): void
    {
        $this->fields = array_filter($this->fields, function ($child) use ($component) {
            return $child != $component;
        });
    }

    /**
     * Whereas a Leaf's method just does the job, the Composite's method almost
     * always has to take its sub-objects into account.
     *
     * In this case, the composite can accept structured data.
     *
     * @param array $data
     */
    public function setData($data): void
    {
        foreach ($this->fields as $name => $field) {
            if (isset($data[$name])) {
                $field->setData($data[$name]);
            }
        }
    }

    /**
     * The same logic applies to the getter. It returns the structured data of
     * the composite itself (if any) and all the children data.
     */
    public function getData(): array
    {
        $data = [];

        foreach ($this->fields as $name => $field) {
            $data[$name] = $field->getData();
        }

        return $data;
    }

    /**
     * The base implementation of the Composite's rendering simply combines
     * results of all children. Concrete Composites will be able to reuse this
     * implementation in their real rendering implementations.
     */
    public function render(): string
    {
        $output = "";

        foreach ($this->fields as $name => $field) {
            $output .= $field->render();
        }

        return $output;
    }
}

/**
 * The fieldset element is a Concrete Composite.
 */
class Fieldset extends FieldComposite
{
    public function render(): string
    {
        // Note how the combined rendering result of children is incorporated
        // into the fieldset tag.
        $output = parent::render();

        return "<fieldset><legend>{$this->title}</legend>\n$output</fieldset>\n";
    }
}

/**
 * And so is the form element.
 */
class Form extends FieldComposite
{
    protected $url;

    public function __construct(string $name, string $title, string $url)
    {
        parent::__construct($name, $title);
        $this->url = $url;
    }

    public function render(): string
    {
        $output = parent::render();
        return "<form action=\"{$this->url}\">\n<h3>{$this->title}</h3>\n$output</form>\n";
    }
}

/**
 * The client code gets a convenient interface for building complex tree
 * structures.
 */
function getProductForm(): FormElement
{
    $form = new Form('product', "Add product", "/product/add");
    $form->add(new Input('name', "Name", 'text'));
    $form->add(new Input('description', "Description", 'text'));

    $picture = new Fieldset('photo', "Product photo");
    $picture->add(new Input('caption', "Caption", 'text'));
    $picture->add(new Input('image', "Image", 'file'));
    $form->add($picture);

    return $form;
}

/**
 * The form structure can be filled with data from various sources. The Client
 * doesn't have to traverse through all form fields to assign data to various
 * fields since the form itself can handle that.
 */
function loadProductData(FormElement $form)
{
    $data = [
        'name' => 'Apple MacBook',
        'description' => 'A decent laptop.',
        'photo' => [
            'caption' => 'Front photo.',
            'image' => 'photo1.png',
        ],
    ];

    $form->setData($data);
}

/**
 * The client code can work with form elements using the abstract interface.
 * This way, it doesn't matter whether the client works with a simple component
 * or a complex composite tree.
 */
function renderProduct(FormElement $form)
{
    // ..

    echo $form->render();

    // ..
}

$form = getProductForm();
loadProductData($form);
renderProduct($form);

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
<form action="/product/add">
<h3>Add product</h3>
<label for="name">Name</label>
<input name="name" type="text" value="Apple MacBook">
<label for="description">Description</label>
<input name="description" type="text" value="A decent laptop.">
<fieldset><legend>Product photo</legend>
<label for="caption">Caption</label>
<input name="caption" type="text" value="Front photo.">
<label for="image">Image</label>
<input name="image" type="file" value="photo1.png">
</fieldset>
</form>

在 Python 中使用模式

复杂度： ★★☆

流行度： ★★☆

使用实例： 组合模式在 Python 代码中很常见， 常用于表示与图形打交道的用户界面组件或代码的层次结构。

识别方法： 组合可以通过将同一抽象或接口类型的实例放入树状结构的行为方法来轻松识别。

概念示例

本例说明了组合设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

main.py: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
from __future__ import annotations
from abc import ABC, abstractmethod
from typing import List


class Component(ABC):
    """
    The base Component class declares common operations for both simple and
    complex objects of a composition.
    """

    @property
    def parent(self) -> Component:
        return self._parent

    @parent.setter
    def parent(self, parent: Component):
        """
        Optionally, the base Component can declare an interface for setting and
        accessing a parent of the component in a tree structure. It can also
        provide some default implementation for these methods.
        """

        self._parent = parent

    """
    In some cases, it would be beneficial to define the child-management
    operations right in the base Component class. This way, you won't need to
    expose any concrete component classes to the client code, even during the
    object tree assembly. The downside is that these methods will be empty for
    the leaf-level components.
    """

    def add(self, component: Component) -> None:
        pass

    def remove(self, component: Component) -> None:
        pass

    def is_composite(self) -> bool:
        """
        You can provide a method that lets the client code figure out whether a
        component can bear children.
        """

        return False

    @abstractmethod
    def operation(self) -> str:
        """
        The base Component may implement some default behavior or leave it to
        concrete classes (by declaring the method containing the behavior as
        "abstract").
        """

        pass


class Leaf(Component):
    """
    The Leaf class represents the end objects of a composition. A leaf can't
    have any children.

    Usually, it's the Leaf objects that do the actual work, whereas Composite
    objects only delegate to their sub-components.
    """

    def operation(self) -> str:
        return "Leaf"


class Composite(Component):
    """
    The Composite class represents the complex components that may have
    children. Usually, the Composite objects delegate the actual work to their
    children and then "sum-up" the result.
    """

    def __init__(self) -> None:
        self._children: List[Component] = []

    """
    A composite object can add or remove other components (both simple or
    complex) to or from its child list.
    """

    def add(self, component: Component) -> None:
        self._children.append(component)
        component.parent = self

    def remove(self, component: Component) -> None:
        self._children.remove(component)
        component.parent = None

    def is_composite(self) -> bool:
        return True

    def operation(self) -> str:
        """
        The Composite executes its primary logic in a particular way. It
        traverses recursively through all its children, collecting and summing
        their results. Since the composite's children pass these calls to their
        children and so forth, the whole object tree is traversed as a result.
        """

        results = []
        for child in self._children:
            results.append(child.operation())
        return f"Branch({'+'.join(results)})"


def client_code(component: Component) -> None:
    """
    The client code works with all of the components via the base interface.
    """

    print(f"RESULT: {component.operation()}", end="")


def client_code2(component1: Component, component2: Component) -> None:
    """
    Thanks to the fact that the child-management operations are declared in the
    base Component class, the client code can work with any component, simple or
    complex, without depending on their concrete classes.
    """

    if component1.is_composite():
        component1.add(component2)

    print(f"RESULT: {component1.operation()}", end="")


if __name__ == "__main__":
    # This way the client code can support the simple leaf components...
    simple = Leaf()
    print("Client: I've got a simple component:")
    client_code(simple)
    print("\n")

    # ...as well as the complex composites.
    tree = Composite()

    branch1 = Composite()
    branch1.add(Leaf())
    branch1.add(Leaf())

    branch2 = Composite()
    branch2.add(Leaf())

    tree.add(branch1)
    tree.add(branch2)

    print("Client: Now I've got a composite tree:")
    client_code(tree)
    print("\n")

    print("Client: I don't need to check the components classes even when managing the tree:")
    client_code2(tree, simple)

Output.txt: 执行结果

1
2
3
4
5
6
7
8
Client: I've got a simple component:
RESULT: Leaf

Client: Now I've got a composite tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf))

Client: I don't need to check the components classes even when managing the tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf)+Leaf)

在 Ruby 中使用模式

复杂度： ★★☆

流行度： ★★☆

使用实例： 组合模式在 Ruby 代码中很常见， 常用于表示与图形打交道的用户界面组件或代码的层次结构。

识别方法： 组合可以通过将同一抽象或接口类型的实例放入树状结构的行为方法来轻松识别。

概念示例

本例说明了组合设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

main.rb: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
# The base Component class declares common operations for both simple and
# complex objects of a composition.
class Component
  # @return [Component]
  def parent
    @parent
  end

  # Optionally, the base Component can declare an interface for setting and
  # accessing a parent of the component in a tree structure. It can also provide
  # some default implementation for these methods.
  def parent=(parent)
    @parent = parent
  end

  # In some cases, it would be beneficial to define the child-management
  # operations right in the base Component class. This way, you won't need to
  # expose any concrete component classes to the client code, even during the
  # object tree assembly. The downside is that these methods will be empty for
  # the leaf-level components.
  def add(component)
    raise NotImplementedError, "#{self.class} has not implemented method '#{__method__}'"
  end

  # @abstract
  #
  # @param [Component] component
  def remove(component)
    raise NotImplementedError, "#{self.class} has not implemented method '#{__method__}'"
  end

  # You can provide a method that lets the client code figure out whether a
  # component can bear children.
  def composite?
    false
  end

  # The base Component may implement some default behavior or leave it to
  # concrete classes (by declaring the method containing the behavior as
  # "abstract").
  def operation
    raise NotImplementedError, "#{self.class} has not implemented method '#{__method__}'"
  end
end

# The Leaf class represents the end objects of a composition. A leaf can't have
# any children.
#
# Usually, it's the Leaf objects that do the actual work, whereas Composite
# objects only delegate to their sub-components.
class Leaf < Component
  # return [String]
  def operation
    'Leaf'
  end
end

# The Composite class represents the complex components that may have children.
# Usually, the Composite objects delegate the actual work to their children and
# then "sum-up" the result.
class Composite < Component
  def initialize
    @children = []
  end

  # A composite object can add or remove other components (both simple or
  # complex) to or from its child list.

  # @param [Component] component
  def add(component)
    @children.append(component)
    component.parent = self
  end

  # @param [Component] component
  def remove(component)
    @children.remove(component)
    component.parent = nil
  end

  # @return [Boolean]
  def composite?
    true
  end

  # The Composite executes its primary logic in a particular way. It traverses
  # recursively through all its children, collecting and summing their results.
  # Since the composite's children pass these calls to their children and so
  # forth, the whole object tree is traversed as a result.
  def operation
    results = []
    @children.each { |child| results.append(child.operation) }
    "Branch(#{results.join('+')})"
  end
end

# The client code works with all of the components via the base interface.
def client_code(component)
  puts "RESULT: #{component.operation}"
end

# Thanks to the fact that the child-management operations are declared in the
# base Component class, the client code can work with any component, simple or
# complex, without depending on their concrete classes.
def client_code2(component1, component2)
  component1.add(component2) if component1.composite?

  print "RESULT: #{component1.operation}"
end

# This way the client code can support the simple leaf components...
simple = Leaf.new
puts 'Client: I\'ve got a simple component:'
client_code(simple)
puts "\n"

# ...as well as the complex composites.
tree = Composite.new

branch1 = Composite.new
branch1.add(Leaf.new)
branch1.add(Leaf.new)

branch2 = Composite.new
branch2.add(Leaf.new)

tree.add(branch1)
tree.add(branch2)

puts 'Client: Now I\'ve got a composite tree:'
client_code(tree)
puts "\n"

puts 'Client: I don\'t need to check the components classes even when managing the tree:'
client_code2(tree, simple)

output.txt: 执行结果

1
2
3
4
5
6
7
8
Client: I've got a simple component:
RESULT: Leaf

Client: Now I've got a composite tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf))

Client: I don't need to check the components classes even when managing the tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf)+Leaf)

在 Swift 中使用模式

复杂度： ★★☆

流行度： ★★☆

使用示例： 组合模式在 Swift 代码中很常见， 常用于表示与图形打交道的用户界面组件或代码的层次结构。

识别方法： 组合可以通过将同一抽象或接口类型的实例放入树状结构的行为方法来轻松识别。

概念示例

本例说明了组合设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

了解该模式的结构后， 你可以更容易地理解下面基于真实世界的 Swift 应用案例。

Example.swift: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
import XCTest

/// The base Component class declares common operations for both simple and
/// complex objects of a composition.
protocol Component {

    /// The base Component may optionally declare methods for setting and
    /// accessing a parent of the component in a tree structure. It can also
    /// provide some default implementation for these methods.
    var parent: Component? { get set }

    /// In some cases, it would be beneficial to define the child-management
    /// operations right in the base Component class. This way, you won't need
    /// to expose any concrete component classes to the client code, even during
    /// the object tree assembly. The downside is that these methods will be
    /// empty for the leaf-level components.
    func add(component: Component)
    func remove(component: Component)

    /// You can provide a method that lets the client code figure out whether a
    /// component can bear children.
    func isComposite() -> Bool

    /// The base Component may implement some default behavior or leave it to
    /// concrete classes.
    func operation() -> String
}

extension Component {

    func add(component: Component) {}
    func remove(component: Component) {}
    func isComposite() -> Bool {
        return false
    }
}

/// The Leaf class represents the end objects of a composition. A leaf can't
/// have any children.
///
/// Usually, it's the Leaf objects that do the actual work, whereas Composite
/// objects only delegate to their sub-components.
class Leaf: Component {

    var parent: Component?

    func operation() -> String {
        return "Leaf"
    }
}

/// The Composite class represents the complex components that may have
/// children. Usually, the Composite objects delegate the actual work to their
/// children and then "sum-up" the result.
class Composite: Component {

    var parent: Component?

    /// This fields contains the conponent subtree.
    private var children = [Component]()

    /// A composite object can add or remove other components (both simple or
    /// complex) to or from its child list.
    func add(component: Component) {
        var item = component
        item.parent = self
        children.append(item)
    }

    func remove(component: Component) {
        // ...
    }

    func isComposite() -> Bool {
        return true
    }

    /// The Composite executes its primary logic in a particular way. It
    /// traverses recursively through all its children, collecting and summing
    /// their results. Since the composite's children pass these calls to their
    /// children and so forth, the whole object tree is traversed as a result.
    func operation() -> String {
        let result = children.map({ $0.operation() })
        return "Branch(" + result.joined(separator: " ") + ")"
    }
}

class Client {

    /// The client code works with all of the components via the base interface.
    static func someClientCode(component: Component) {
        print("Result: " + component.operation())
    }

    /// Thanks to the fact that the child-management operations are also
    /// declared in the base Component class, the client code can work with both
    /// simple or complex components.
    static func moreComplexClientCode(leftComponent: Component, rightComponent: Component) {
        if leftComponent.isComposite() {
            leftComponent.add(component: rightComponent)
        }
        print("Result: " + leftComponent.operation())
    }
}

/// Let's see how it all comes together.
class CompositeConceptual: XCTestCase {

    func testCompositeConceptual() {

        /// This way the client code can support the simple leaf components...
        print("Client: I've got a simple component:")
        Client.someClientCode(component: Leaf())

        /// ...as well as the complex composites.
        let tree = Composite()

        let branch1 = Composite()
        branch1.add(component: Leaf())
        branch1.add(component: Leaf())

        let branch2 = Composite()
        branch2.add(component: Leaf())
        branch2.add(component: Leaf())

        tree.add(component: branch1)
        tree.add(component: branch2)

        print("\nClient: Now I've got a composite tree:")
        Client.someClientCode(component: tree)

        print("\nClient: I don't need to check the components classes even when managing the tree:")
        Client.moreComplexClientCode(leftComponent: tree, rightComponent: Leaf())
    }
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
Client: I've got a simple component:
Result: Leaf

Client: Now I've got a composite tree:
Result: Branch(Branch(Leaf Leaf) Branch(Leaf Leaf))

Client: I don't need to check the components classes even when managing the tree:
Result: Branch(Branch(Leaf Leaf) Branch(Leaf Leaf) Leaf)

真实世界示例

Example.swift: 真实世界示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
import UIKit
import XCTest

protocol Component {

    func accept<T: Theme>(theme: T)
}

extension Component where Self: UIViewController {

    func accept<T: Theme>(theme: T) {
        view.accept(theme: theme)
        view.subviews.forEach({ $0.accept(theme: theme) })
    }
}

extension UIView: Component {}
extension UIViewController: Component {}

extension Component where Self: UIView {

    func accept<T: Theme>(theme: T) {

        print("\t\(description): has applied \(theme.description)")

        backgroundColor = theme.backgroundColor
    }
}

extension Component where Self: UILabel {

    func accept<T: LabelTheme>(theme: T) {

        print("\t\(description): has applied \(theme.description)")

        backgroundColor = theme.backgroundColor
        textColor = theme.textColor
    }
}

extension Component where Self: UIButton {

    func accept<T: ButtonTheme>(theme: T) {

        print("\t\(description): has applied \(theme.description)")

        backgroundColor = theme.backgroundColor
        setTitleColor(theme.textColor, for: .normal)
        setTitleColor(theme.highlightedColor, for: .highlighted)
    }
}


protocol Theme: CustomStringConvertible {

    var backgroundColor: UIColor { get }
}

protocol ButtonTheme: Theme {

    var textColor: UIColor { get }

    var highlightedColor: UIColor { get }

    /// other properties
}

protocol LabelTheme: Theme {

    var textColor: UIColor { get }

    /// other properties
}

/// Button Themes

struct DefaultButtonTheme: ButtonTheme {

    var textColor = UIColor.red

    var highlightedColor = UIColor.white

    var backgroundColor = UIColor.orange

    var description: String { return "Default Buttom Theme" }
}

struct NightButtonTheme: ButtonTheme {

    var textColor = UIColor.white

    var highlightedColor = UIColor.red

    var backgroundColor = UIColor.black

    var description: String { return "Night Buttom Theme" }
}

/// Label Themes

struct DefaultLabelTheme: LabelTheme {

    var textColor = UIColor.red

    var backgroundColor = UIColor.black

    var description: String { return "Default Label Theme" }
}

struct NightLabelTheme: LabelTheme {

    var textColor = UIColor.white

    var backgroundColor = UIColor.black

    var description: String { return "Night Label Theme" }
}



class CompositeRealWorld: XCTestCase {

    func testCompositeRealWorld() {

        print("\nClient: Applying 'default' theme for 'UIButton'")
        apply(theme: DefaultButtonTheme(), for: UIButton())

        print("\nClient: Applying 'night' theme for 'UIButton'")
        apply(theme: NightButtonTheme(), for: UIButton())


        print("\nClient: Let's use View Controller as a composite!")

        /// Night theme
        print("\nClient: Applying 'night button' theme for 'WelcomeViewController'...")
        apply(theme: NightButtonTheme(), for: WelcomeViewController())
        print()

        print("\nClient: Applying 'night label' theme for 'WelcomeViewController'...")
        apply(theme: NightLabelTheme(), for: WelcomeViewController())
        print()

        /// Default Theme
        print("\nClient: Applying 'default button' theme for 'WelcomeViewController'...")
        apply(theme: DefaultButtonTheme(), for: WelcomeViewController())
        print()

        print("\nClient: Applying 'default label' theme for 'WelcomeViewController'...")
        apply(theme: DefaultLabelTheme(), for: WelcomeViewController())
        print()
    }

    func apply<T: Theme>(theme: T, for component: Component) {
        component.accept(theme: theme)
    }
}

class WelcomeViewController: UIViewController {

    class ContentView: UIView {

        var titleLabel = UILabel()
        var actionButton = UIButton()

        override init(frame: CGRect) {
            super.init(frame: frame)
            setup()
        }

        required init?(coder decoder: NSCoder) {
            super.init(coder: decoder)
            setup()
        }

        func setup() {
            addSubview(titleLabel)
            addSubview(actionButton)
        }
    }

    override func loadView() {
        view = ContentView()
    }
}

/// Let's override a description property for the better output

extension WelcomeViewController {

    open override var description: String { return "WelcomeViewController" }
}

extension WelcomeViewController.ContentView {

    override var description: String { return "ContentView" }
}

extension UIButton {

    open override var description: String { return "UIButton" }
}

extension UILabel {

    open override var description: String { return "UILabel" }
}

Output.txt: 执行结果

1
2
3
4
5
6
7
8
9
10
11
12
Client: Applying 'default' theme for 'UIButton'
UIButton: has applied Default Buttom Theme

Client: Applying 'night' theme for 'UIButton'
UIButton: has applied Night Buttom Theme

Client: Let's use View Controller as a composite!

Client: Applying 'night button' theme for 'WelcomeViewController'...
ContentView: has applied Night Buttom Theme
UILabel: has applied Night Buttom Theme
UIButton: has applied Night Buttom Theme

在 TypeScript 中使用模式

复杂度： ★★☆

流行度： ★★☆

使用实例： 组合模式在 TypeScript 代码中很常见， 常用于表示与图形打交道的用户界面组件或代码的层次结构。

识别方法： 组合可以通过将同一抽象或接口类型的实例放入树状结构的行为方法来轻松识别。

概念示例

本例说明了组合设计模式的结构并重点回答了下面的问题：

  • 它由哪些类组成？
  • 这些类扮演了哪些角色？
  • 模式中的各个元素会以何种方式相互关联？

index.ts: 概念示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
/**
 * The base Component class declares common operations for both simple and
 * complex objects of a composition.
 */
abstract class Component {
    protected parent: Component;

    /**
     * Optionally, the base Component can declare an interface for setting and
     * accessing a parent of the component in a tree structure. It can also
     * provide some default implementation for these methods.
     */
    public setParent(parent: Component) {
        this.parent = parent;
    }

    public getParent(): Component {
        return this.parent;
    }

    /**
     * In some cases, it would be beneficial to define the child-management
     * operations right in the base Component class. This way, you won't need to
     * expose any concrete component classes to the client code, even during the
     * object tree assembly. The downside is that these methods will be empty
     * for the leaf-level components.
     */
    public add(component: Component): void { }

    public remove(component: Component): void { }

    /**
     * You can provide a method that lets the client code figure out whether a
     * component can bear children.
     */
    public isComposite(): boolean {
        return false;
    }

    /**
     * The base Component may implement some default behavior or leave it to
     * concrete classes (by declaring the method containing the behavior as
     * "abstract").
     */
    public abstract operation(): string;
}

/**
 * The Leaf class represents the end objects of a composition. A leaf can't have
 * any children.
 *
 * Usually, it's the Leaf objects that do the actual work, whereas Composite
 * objects only delegate to their sub-components.
 */
class Leaf extends Component {
    public operation(): string {
        return 'Leaf';
    }
}

/**
 * The Composite class represents the complex components that may have children.
 * Usually, the Composite objects delegate the actual work to their children and
 * then "sum-up" the result.
 */
class Composite extends Component {
    protected children: Component[] = [];

    /**
     * A composite object can add or remove other components (both simple or
     * complex) to or from its child list.
     */
    public add(component: Component): void {
        this.children.push(component);
        component.setParent(this);
    }

    public remove(component: Component): void {
        const componentIndex = this.children.indexOf(component);
        this.children.splice(componentIndex, 1);

        component.setParent(null);
    }

    public isComposite(): boolean {
        return true;
    }

    /**
     * The Composite executes its primary logic in a particular way. It
     * traverses recursively through all its children, collecting and summing
     * their results. Since the composite's children pass these calls to their
     * children and so forth, the whole object tree is traversed as a result.
     */
    public operation(): string {
        const results = [];
        for (const child of this.children) {
            results.push(child.operation());
        }

        return `Branch(${results.join('+')})`;
    }
}

/**
 * The client code works with all of the components via the base interface.
 */
function clientCode(component: Component) {
    // ...

    console.log(`RESULT: ${component.operation()}`);

    // ...
}

/**
 * This way the client code can support the simple leaf components...
 */
const simple = new Leaf();
console.log('Client: I\'ve got a simple component:');
clientCode(simple);
console.log('');

/**
 * ...as well as the complex composites.
 */
const tree = new Composite();
const branch1 = new Composite();
branch1.add(new Leaf());
branch1.add(new Leaf());
const branch2 = new Composite();
branch2.add(new Leaf());
tree.add(branch1);
tree.add(branch2);
console.log('Client: Now I\'ve got a composite tree:');
clientCode(tree);
console.log('');

/**
 * Thanks to the fact that the child-management operations are declared in the
 * base Component class, the client code can work with any component, simple or
 * complex, without depending on their concrete classes.
 */
function clientCode2(component1: Component, component2: Component) {
    // ...

    if (component1.isComposite()) {
        component1.add(component2);
    }
    console.log(`RESULT: ${component1.operation()}`);

    // ...
}

console.log('Client: I don\'t need to check the components classes even when managing the tree:');
clientCode2(tree, simple);

Output.txt: 执行结果

1
2
3
4
5
6
7
8
Client: I've got a simple component:
RESULT: Leaf

Client: Now I've got a composite tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf))

Client: I don't need to check the components classes even when managing the tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf)+Leaf)

概念示例

让我们试着用一个操作系统文件系统的例子来理解组合模式。 文件系统中有两种类型的对象： 文件和文件夹。 在某些情形中， 文件和文件夹应被视为相同的对象。 这就是组合模式发挥作用的时候了。

想象一下， 你需要在文件系统中搜索特定的关键词。 这一搜索操作需要同时作用于文件和文件夹上。 对于文件而言， 其只会查看文件的内容； 对于文件夹则会在其内部的所有文件中查找关键词。

file.go: 组件接口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
package main

import "fmt"

type file struct {
    name string
}

func (f *file) search(keyword string) {
    fmt.Printf("Searching for keyword %s in file %s\n", keyword, f.name)
}

func (f *file) getName() string {
    return f.name
}

folder.go: 组合

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
package main

import "fmt"

type folder struct {
    components []component
    name       string
}

func (f *folder) search(keyword string) {
    fmt.Printf("Serching recursively for keyword %s in folder %s\n", keyword, f.name)
    for _, composite := range f.components {
        composite.search(keyword)
    }
}

func (f *folder) add(c component) {
    f.components = append(f.components, c)
}

component.go: 叶子

1
2
3
4
5
package main

type component interface {
    search(string)
}

main.go: 客户端代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
package main

func main() {
    file1 := &file{name: "File1"}
    file2 := &file{name: "File2"}
    file3 := &file{name: "File3"}

    folder1 := &folder{
        name: "Folder1",
    }

    folder1.add(file1)

    folder2 := &folder{
        name: "Folder2",
    }
    folder2.add(file2)
    folder2.add(file3)
    folder2.add(folder1)

    folder2.search("rose")
}

output.txt: 执行结果

1
2
3
4
5
Serching recursively for keyword rose in folder Folder2
Searching for keyword rose in file File2
Searching for keyword rose in file File3
Serching recursively for keyword rose in folder Folder1
Searching for keyword rose in file File1

根据： Golang By Example
